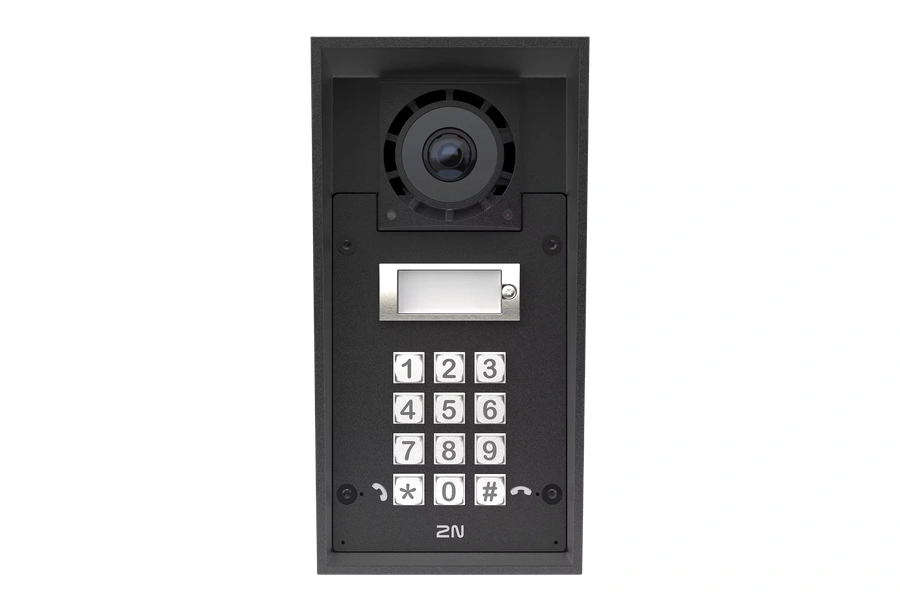

2N IP Force 2.0 Intercom
- Extreme-duty entrance intercom Built for harsh sites with IP69 protection and a high-impact (IK-rated) frame, plus a shatter-resistant camera dome for vandal-prone areas.
- Sharper visitor ID 5MP camera with WDR and adaptive face zooming, delivering clear colour in low light and switching to night vision in complete darkness.
- Secure access + easy integration QR code entry, plus versions with keypad/buttons and RFID-ready options (incl. OSDP/Wiegand), with loud noise-cancelled audio and broad IP interoperability (e.g., SIP and VMS viewing).
Key Features
Resolution
Camera sensor: 1/3″ colour CMOS. Max video (H.264/H.265): up to 2560 × 1920 at up to 30 fps. MJPEG stream: up to 1280 × 960 at up to 15 fps. JPEG snapshot: up to 2592 × 1944. Lens / view: 1.935 mm focal length; 133° (H) / 112° (V) viewing angle. External camera input (optional): H.264 up to 720p (1280×720) @ 30 fps.
IR Illumination
Built-in IR: Yes (night vision support). Minimum illumination (without IR): 0.1 lux ±20%.
Dynamic Range
WDR: Yes (WDR supported; dB value not specified).
Artificial Intelligence
Adaptive Face Zooming: automatically zooms toward detected faces to improve identification at the door. QR code access: onboard processing supports QR code reading for temporary/visitor entry.
Analytics
Variants: available with 1/2/4 buttons, optional keypad, RFID-ready versions (with OSDP/Wiegand via add-on module), and audio-only versions (where video isn’t needed). Audio performance: 2 integrated microphones, 10 W / 4Ω amplifier & speaker, 94 dB SPL (1 kHz @ 1 m), full duplex with AEC, plus adaptive volume and automatic audio-loop tests for loud environments. Door control I/O: SSR relay (NO) up to 30 V / 1 A AC/DC, active switch output 8–12 V DC up to 600 mA, and 3 inputs (passive/active mode, −30 V to +30 V DC). Expandability: VBus connector for modular expansion (e.g., readers/assistive accessories).
Cybersecurity
Secure transport & signalling: SIP 2.0 with SIPS (TLS), HTTPS, and SRTP support. Enterprise controls & management: 802.1X, SNMP, Syslog, TR-069, plus common network services (e.g., DHCP option 66). VMS compatibility: RTSP/RTP streaming and ONVIF Profile S & Profile T support.
Casing
Ingress protection: IP69. Impact resistance: Frame IK10, camera IK08, front panel IK08. Materials: robust aluminium construction with protective camera dome for added shatter resistance. Operating conditions: −30°C to +55°C, 10–95% RH (non-condensing); storage −40°C to +70°C. Size / weight: 217 × 109 × 83 mm, 2 kg.
Warranty
5-year warranty.
2N IP Force 2.0 Overview
2N IP Force 2.0 is a heavy-duty IP video intercom built for exposed, high-risk entrances where vandal resistance, weather sealing, and reliable visitor verification matter most. It pairs an IP69 housing with an IK10-rated body (IK08 camera/front panel) and a shatter-resistant camera dome, while delivering sharp identification via a 5MP camera (up to 2560×1920 @ 30 fps), a wide 133° horizontal view, WDR, and integrated IR (down to 0.1 lux without IR). Audio is engineered for noisy environments with two integrated microphones, a 10 W speaker/amplifier, up to 94 dB SPL @ 1 m, and full-duplex AEC, supported by noise cancellation and automatic audio-loop testing. For access and integration, it supports QR code entry (ARTPEC-8 powered) and comes in multiple versions (buttons, keypad, and RFID-ready), with optional RFID expansion supporting OSDP (encrypted) or Wiegand, plus a VBus connector for modular add-ons; it also fits cleanly into enterprise systems with PoE+ (802.3at), Gigabit Ethernet, and broad protocol support including SIP/SIPS, RTSP/RTP/SRTP, HTTPS, 802.1X, SNMP, and ONVIF (Profiles S/T)—backed by a 5-year warranty.
