2N IP Safety Intercom
- Emergency-ready and built to survive Robust aluminium body with IP69K + IK10 protection, rated down to −40°C, in high-visibility orange with backlit SOS/Info buttons.
- Crystal-clear voice in noisy areas 10W Class-D amp + 10W speaker (up to 94 dB @ 1m), dual microphones, full-duplex audio with AEC, and automatic audio loop testing for dependable intelligibility.
- Easy to integrate and power SIP 2.0 calling with RTP/RTSP plus HTTP/HTTPS, 802.1X and ONVIF, powered via PoE 802.3af or 12V DC, with NO/NC relay and active output for door/alert control.
Key Features
Resolution
No integrated video camera (audio emergency intercom). Supports IP-based call control and audio streaming rather than video capture.
IR Illumination
Not applicable (no camera).
Dynamic Range
Not applicable (no camera).
Artificial Intelligence
Not applicable (no camera/AI imaging).
Audio

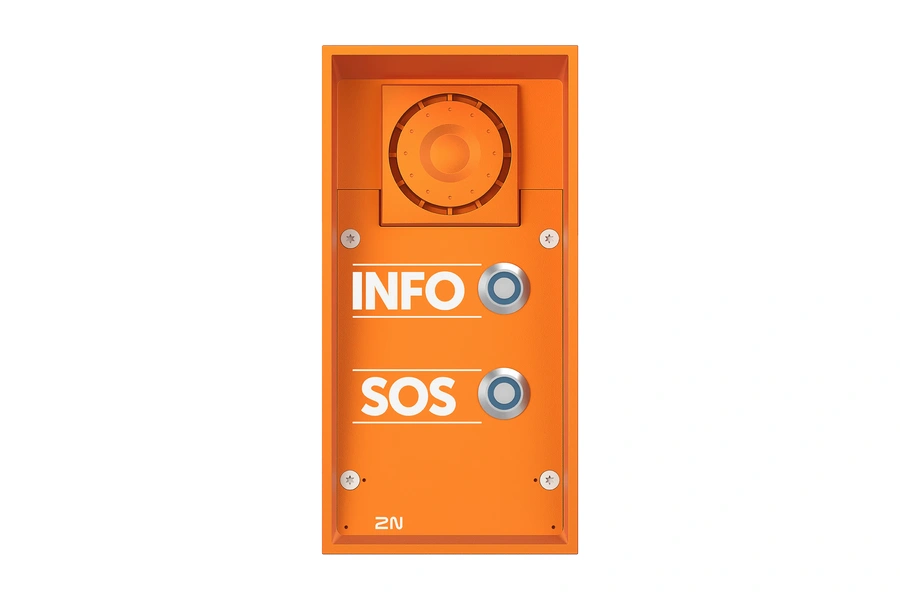

Variants: 1-button, 2-button (Info + SOS), and red emergency button versions; buttons are backlit for visibility. Audio performance: 2 integrated microphones, 10 W Class-D amplifier, 10 W speaker, up to 94 dB SPL @ 1 m, full duplex with AEC (echo cancellation) and adaptive volume control. Health monitoring: automatic audio loop testing for maintenance confidence. I/O: SSR relay NO/NC up to 30 V / 1 A AC/DC; active output 9–13 V DC up to 600 mA; supports external triggers/automation.
Cybersecurity
VoIP: SIP 2.0 (RFC 3261); supports SIPS (TLS) deployments where enabled; audio via RTP/SRTP depending on configuration. Enterprise controls: HTTPS, 802.1X network authentication, Syslog logging, and remote configuration/management services commonly used in enterprise networks. Interoperability: supports ONVIF for integration in broader security environments (feature usage depends on platform).
Casing
Ingress / impact: IP69K and IK10 (rugged cast aluminum body). Operating conditions: −40°C to +55°C, 10–95% RH (non-condensing). Power: PoE 802.3af, Class 0 (up to 12.95 W) or 12 V DC / 2 A. Network: 10/100BASE-TX (RJ-45, Auto-MDIX). Finish: high-visibility orange body for emergency use.
Warranty
5-year warranty.
2N IP Safety Emergency Intercom Overview
2N IP Safety is a rugged IP emergency intercom designed for instant, intelligible help calls in exposed or high-noise locations—finished in bright orange for easy visibility and built around a robust aluminium cast body with IP69K sealing and IK10 impact resistance. It’s offered in 1-button, 2-button (Info + SOS), or red emergency button variants, all with a powerful 10 W Class-D amplifier / 10 W speaker producing up to 94 dB SPL at 1 m, plus two integrated microphones and full-duplex audio with AEC (echo cancellation) so conversations stay clear even in harsh acoustics. For reliability and maintenance, it includes automatic audio loop testing, operates from −40°C to +55°C, and installs cleanly via PoE (802.3af, Class 0 up to 12.95 W) or 12 V / 2 A DC. Integration is straightforward with SIP 2.0 (RFC 3261) signalling, RTP/RTSP audio streaming (G.711/G.722/G.729/L16), plus enterprise protocol support including HTTP/HTTPS, 802.1X, Syslog, and ONVIF, and it also provides NO/NC relay contacts (up to 30 V / 1 A) and a 9–13 V DC active output (up to 600 mA) for triggering door/alert equipment or site automation.
