The Avigilon Alta A5 Bullet Camera is a cloud-connected bullet range built for fast deployments and strong perimeter detail, offered in 8MP (4K) or 5MP models with a choice of wide (4.3–10.8 mm) or telephoto (11–28 mm) varifocal lenses, 2.5× optical zoom, and remote zoom/focus to fine-tune coverage after installation. Image performance is designed for challenging scenes with multi-exposure line-based HDR and strong low-light sensitivity (0.06 lux in color), backed by 850 nm IR for after-hours visibility—up to 50 m (wide) or 90 m (tele) with automatic night mode and an IR-cut filter. It also adds intelligence beyond standard video: built-in AI video and audio analytics with a 4-microphone array provides audio classification and audio source localization, while microSD (SDXC UHS-I) edge storage supports resilience at the camera. For IT and compliance, security is built in with TPM 2.0, factory-installed certificates, no default passwords, mandatory access authentication, and HTTPS/TLS encryption, plus ONVIF Profile S support when set to ONVIF mode. Physically it’s engineered for exposed sites with IK10 impact resistance, IP66 weather protection, and -25°C to +50°C operation, powered primarily by PoE+ (802.3at Type 2) (or PoE 802.3af without heat/IR), with a USB-C port for installation preview/setup—and it’s backed by a 10-year warranty with an Alta Video license (or 3 years without).

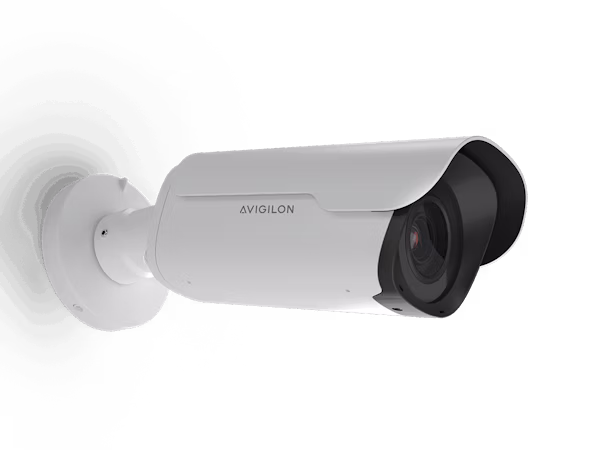

Avigilon Alta A5 Bullet Camera
- See more, further—day or night: Choose 8MP (4K) or 5MP with wide (4.3–10.8 mm) or tele (11–28 mm) varifocal lens options, 2.5× optical zoom, remote zoom/focus, and 850 nm IR reaching up to 50 m (wide) or 90 m (tele) for strong perimeter detail.
- Smarter alerts with audio + video intelligence: Built-in AI video and audio analytics with a 4-microphone array for audio classification and audio localization, plus on-device processing and microSD (SDXC UHS-I) edge storage to keep recording resilient even when connectivity is interrupted.
- Built for harsh sites—and hardened security: Rugged IK10 impact resistance and IP66 weather protection with -25°C to +50°C operation, backed by security-first features including TPM 2.0, factory-installed certificates, no default passwords, mandatory authentication, and HTTPS/TLS encryption (powered via PoE+).
Key Features
Resolution
Avigilon Alta A5 Bullet Camera • Resolution options: 8 MP (4K) or 5 MP • Max resolution & frame rate: 8 MP 3840×2160 @ 30 fps • 5 MP 3072×1728 @ 30 fps • Image sensor size format: 1/1.8″ • Lens options: Wide varifocal 4.3–10.8 mm (ƒ/1.38–ƒ/2.8) or Tele varifocal 11–28 mm (ƒ/1.47–ƒ/1.69) • Optical zoom: 2.5× • Field of view (Wide): 100°–40° horizontal, 53°–23° vertical • Field of view (Tele): 39°–16° horizontal, 23°–9° vertical • Minimum illumination (color): 0.06 lux • Video compression: H.264 • Motion JPEG • Connection: 10/100 Ethernet
IR Illumination
IR night vision • Automatic night mode • IR-cut filter • 850 nm IR LED • IR illumination (max distance): 50 m (Wide) • 90 m (Tele)
Dynamic Range
Multi-exposure line-based HDR
Artificial Intelligence
Built-in AI video and audio analytics • Audio classification • Audio localization
Analytics
Audio hardware: Microphone array (4× microphones) • On-device storage: MicroSD (SDXC UHS-I) • Streaming options: RTP/UDP • RTP/RTSP/HTTPS/TCP • Product variants: Wide or Tele lens • Black or White housings • Available with no onboard retention (Cloud Connector required) or 30/60/120 days onboard retention (SKU dependent)
Cybersecurity
TPM 2.0 • Factory-installed certificates • No default passwords • Mandatory access authentication • HTTPS/TLS encryption • ONVIF Profile S (requires camera set to ONVIF Mode)
Casing
Bullet housing for indoor/outdoor use • Adjustment range: Pan • Tilt • Roll • Impact resistance: IK10 • Ingress protection: IP66 • Operating temperature: -25°C to +50°C • Storage temperature: -40°C to +60°C • Dimensions: 284×86×108 mm • Weight: 1.33 kg • Body: Aluminum • Installation aid: Versatile bracket (mounts to standard back boxes) • Power source: PoE+ (802.3at Type 2) normal operation • PoE (802.3af) without heat and IR • USB-C (installation only) • Power consumption: Typical 5 W • Max (no heater, with IR) 13 W • Max (with heater) 23 W • USB-C: Preview and setup
Warranty
10-year warranty with Alta Video license • 3-year warranty without
Avigilon Alta A5 Bullet Camera Overview
