The Avigilon Alta A5 Compact Dome Camera is a discreet, cloud-managed indoor fixed dome designed for fast plug and play deployment with the Alta Video platform, combining on device processing and storage with built in analytics to keep physical infrastructure simple. It delivers 5 MP 4:3 video up to 2688×1944 at 30 fps using a 1/2.7 inch sensor and a fixed 3.2 mm f/1.3 lens for strong low light performance, with a wide 102° horizontal and 71° vertical view that suits retail, offices, classrooms, and reception areas. For challenging lighting it uses multi exposure line based HDR, and for night scenes it includes 850 nm IR with automatic night mode and 10 m IR range, helping maintain usable footage even in complete darkness. Audio is built in via a 4 microphone array with audio classification, supporting faster awareness when something sounds wrong, while storage is supported via 2× microSD SDXC UHS I and the camera is offered in multiple variants including black or white and 30 60 120 days onboard retention options. Security is a core part of the design with TPM 2.0, factory installed certificates, no default passwords, mandatory access authentication, and HTTPS TLS encryption, plus ONVIF Profile S support when set to ONVIF mode, backed by a 10 year warranty with an Alta Video license or 3 year warranty without.

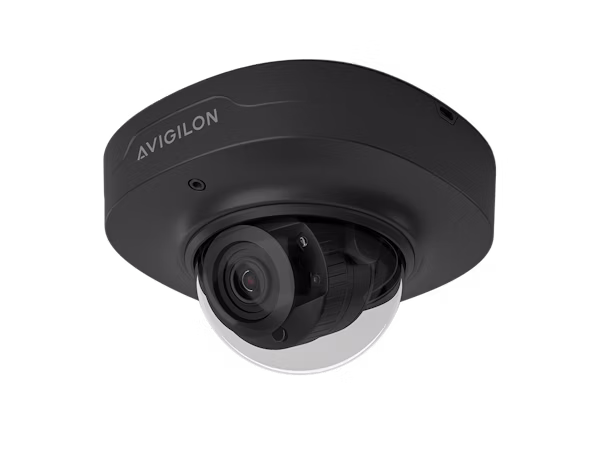

Avigilon Alta A5 Compact Dome Camera
- Discreet 5MP indoor coverage: 2688×1944 at 30 fps with a wide 102° field of view, fast f/1.3 aperture, and multi exposure line based HDR for clear detail in tough lighting
- Day night clarity with audio awareness: 850 nm IR up to 10 m with automatic night mode, plus a 4 microphone array with audio classification and built in AI video and audio analytics
- Cloud managed and secure by design: Alta Video ready with on camera processing and 2× microSD storage, PoE 802.3af for easy installs, and strong security with TPM 2.0, factory installed certificates, no default passwords, mandatory authentication, and HTTPS TLS encryption plus 10 year warranty with an Alta Video license
Key Features
Resolution
Avigilon Alta A5 Compact Dome Camera • 5 MP 4:3 up to 2688×1944 at 30 fps • Image sensor size format 1/2.7 inch • Lens 3.2 mm f/1.3 fixed focus • Field of view 102° horizontal 71° vertical • Minimum illumination in color mode 0.10 lux • Video compression H 264 Motion JPEG • Connection 10/100/1000 Gigabit Ethernet
IR Illumination
IR night vision • Automatic night mode • IR cut filter • 850 nm IR LED • IR range 10 m
Dynamic Range
Multi exposure line based HDR
Artificial Intelligence
Built in AI video and audio analytics • Audio classification
Analytics
Microphone array 4 microphones • Audio classification • On device storage 2× MicroSD SDXC UHS I
Cybersecurity
TPM 2.0 • Factory installed certificates • No default passwords • Mandatory access authentication • HTTPS TLS encryption • ONVIF Profile S when set to ONVIF mode
Casing
Indoor compact dome for discreet installations • Adjustment range pan tilt roll • Operating temperature 0°C to 40°C • Storage -40°C to 60°C • Dimensions 107×107×64 mm • Weight 280 g • Power source PoE 802.3af • USB C installation only preview and setup
Warranty
10 year warranty with Alta Video license or 3 year warranty without
Avigilon Alta A5 Compact Dome Camera Overview
Avigilon Alta A5 Compact Dome Camera Datasheets
