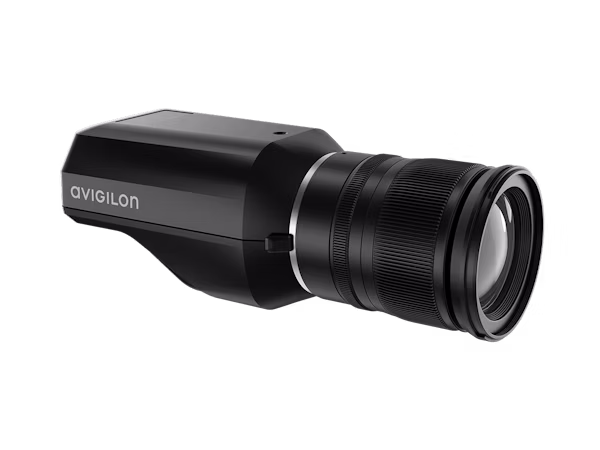

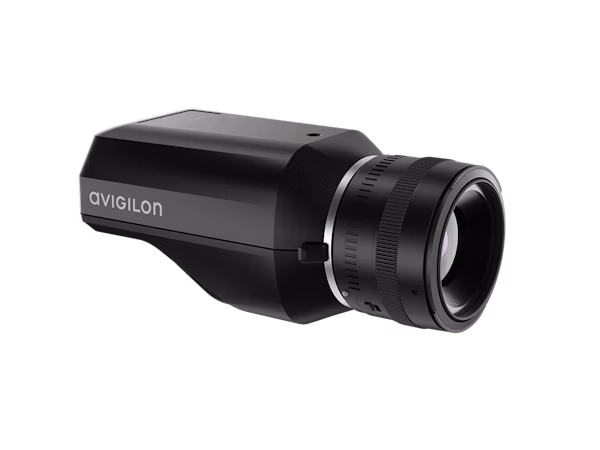

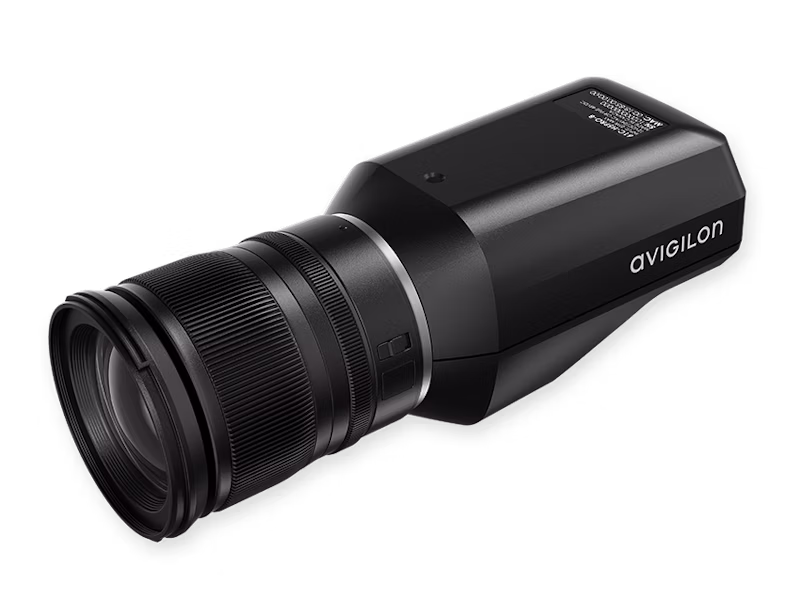

Avigilon H5 Pro Camera
- Ultra-high resolution for maximum coverage: Choose from 8MP, 16MP, 26MP, 40MP or 61MP (10K) to capture fine detail across large areas—backed by True WDR (up to 120 dB) and LightCatcher™ low-light performance (down to 0.004 lux @ f/1.4).
- Big images, smaller storage and bandwidth: Efficient streaming with H.264/H.265 + HDSM SmartCodec™, plus idle scene mode and HDSM 2.0 to help reduce bitrate and storage without losing key evidence.
- Security + smarter response built in: Unusual Activity Detection and analytics support (available on 8–40MP models) for people/vehicle-based events in Avigilon Unity/ACC workflows, alongside enterprise hardening like Secure Boot, signed/encrypted firmware, HTTPS/802.1X, and optional FIPS 140-2 modes (including Level 3 TPM via optional accessory).
Key Features
Resolution
Avigilon Unity H5 Pro Camera (Box) • Model options: 8 MP (4K), 16 MP (5K), 26 MP (6.25K), 40 MP (8K), 61 MP (10K) • Image sensor: 27.2 mm (Type 1.8) progressive scan CMOS (8–40 MP) or 43.3 mm (Type 2.7) progressive scan CMOS (61 MP) • Max resolution (H×V): 8 MP 3840×2160 (16:9) • 16 MP 5344×3008 (16:9) / 4944×3296 (3:2) • 26 MP 6240×3512 (16:9) / 6240×4160 (3:2) • 40 MP 8448×4752 (16:9) / 7776×5184 (3:2) • 61 MP 9568×5384 (16:9) / 9568×6376 (3:2) • Minimum illumination 0.004 lux (at F1.4) • Max image rate (varies by model/aspect ratio/WDR): up to 25 fps (50 Hz) / 24 fps (60 Hz) (8/16 MP), 16.7/17.1 fps (26 MP, 16:9), 10 fps (40 MP), 8.3/8.6 fps (61 MP, 16:9) / 7 fps (61 MP, 3:2) • Lens flexibility: multiple lens options including long-zoom, with typical horizontal FoV ranges down to ~2.2° (telephoto) and up to ~72.8°–96.6° (wide), lens/model dependent • Video compression H.264 + HDSM SmartCodec™ • H.265 + HDSM SmartCodec™ • Motion JPEG (Motion JPEG streaming limited to 16 MP resolution) • Streaming: multi-stream H.264/H.265 + Motion JPEG • Bandwidth management: Idle scene mode
IR Illumination
No integrated IR LEDs • Designed for high detail under ambient/site lighting (external illumination can be used if required by the site design).
Dynamic Range
True WDR • 70 dB (WDR Off) • 120 dB (WDR On)
Artificial Intelligence
Unusual Activity Detection (UAD) for atypical motion patterns • Focus of Attention when used with Avigilon Control Center (ACC) 7 to prioritise critical events for operators • Teach By Example supported when used with ACC.
Analytics
Next-Generation Video Analytics supported on 8/16/26/40 MP models (not supported on 61 MP) • 26 MP requires Full Feature Mode (prioritises analytics; H.265 is disabled) • Classified object types: Person • Vehicle sub-types (outdoor mode): Car, Truck, Bicycle, Motorcycle, Bus • Common supported analytic events include Objects in Area, Object Loitering, Objects Crossing Beam, Object Appears/Enters Area, Object Not Present in Area, Objects Enter/Leave Area, Object Stops in Area, Direction Violated, Tamper Detection (note: 61 MP does not support tamper detection)
Cybersecurity
Password protection • HTTPS encryption • Digest authentication • WS authentication • User access log • 802.1X port-based authentication • Optional FIPS 140-2 Level 1 cryptographic mode (license) • FIPS 140-2 Level 3 support available with optional CRYPTR hardware-based encryption/key-management accessory • Management: SNMP v2c / SNMP v3 • ONVIF: Profile S, T, G (note: 61 MP does not support Profile T) • 40/61 MP ONVIF mode can provide a single 32 MP primary stream for 3rd-party VMS integration.
Casing
Compact box camera body • Aluminum, black powder coat • Dimensions 142×87×82 mm • Weight 0.50 kg • Mounting point 1/4″-20 UNC (top and bottom) • Image controls: white balance auto/manual • backlight compensation adjustable • privacy zones up to 64 • Shutter: auto/manual (1/7.5 to 1/8000 sec) • Iris control: automatic / open / closed (lens dependent) • Audio: line-level in/out via 3.5 mm A/V mini-jack • Audio codecs: Opus, G.711 PCM 8 kHz • I/O: Alarm In, Alarm Out • Onboard storage: 2× microSD/microSDHC/microSDXC slots (Class V10 or better recommended; currently one slot available for onboard storage)
Warranty
5-year warranty (camera line), with warranty terms subject to Avigilon Unity product policy and regional conditions (lenses/accessories may have different coverage).
Avigilon H5 Pro Camera Overview
The Avigilon H5 Pro is a high-resolution camera line built to cover large, open areas with fewer cameras, with model options from 4K (8 MP) through 5K (16 MP), 6.25K (26 MP), 8K (40 MP) and up to 10K (61 MP) for extreme detail across wide scenes. It combines True WDR (up to 120 dB) with LightCatcher™ low-light performance (minimum illumination 0.004 lux @ f/1.4) to keep important details visible in mixed lighting and after-hours conditions. To help control ongoing storage and network costs, the H5 Pro supports H.264 and H.265 with HDSM SmartCodec™, idle scene mode, and HDSM 2.0 bandwidth optimisation—especially valuable when streaming very high resolution video. For proactive monitoring, Next-Generation Video Analytics is supported on the 8/16/26 MP models (the 26 MP model requires Full Feature mode for analytics), and the camera also supports Unusual Activity Detection (UAD) for motion that stands out from normal activity. Deployment is flexible with multiple lens options (including long-zoom), dual microSD slots (with one slot currently available for onboard storage), Gigabit Ethernet via RJ-45 or SFP fiber (one connection type at a time), and power via PoE+ (802.3at), 12 VDC, or 24 VAC, backed by a 5-year warranty.
