Avigilon H5A Corner Camera
- Built for high-risk corners Anti-ligature corner design with tough impact protection and wet-area durability.
- Clear day/night evidence 3MP/5MP imaging with WDR, discreet IR, and reliable low-light performance.
- Smarter, cheaper to run Built-in analytics and efficient compression to cut false alerts, bandwidth, and storage.
Key Features
Resolution
3MP: (4:3) 2048×1536; (16:9) 1920×1080. 5MP: (4:3) 2592×1944; (16:9) 2560×1440. Image sensor: 1/2.8” progressive scan CMOS. Max frame rate: WDR Off (50/60 Hz) 25/30 fps; WDR On (50/60 Hz) 20/20 fps.
IR Illumination
High-power 940 nm “invisible” IR LED with 15 m (49 ft) max distance. Minimum illumination: 0.027 lux (colour), 0.014 lux (mono), 0 lux with IR. Note: IR illumination power may reduce at higher operating temperatures.
Dynamic Range
WDR Off: 83 dB. WDR On: 126 dB.
Artificial Intelligence
Embedded Next-Generation Video Analytics with classified object detection and Unusual Activity Detection (UAD). Supports Teach By Example when used with Avigilon Control Center (ACC). Supports broader Unity workflows such as Avigilon Appearance Search™ and Facial Recognition (system/licensing dependent).
Analytics
Motion detection: Pixel motion (selectable sensitivity/threshold) + classified object detection. Supported analytics events: Objects in Area, Object Loitering, Objects Crossing Beam, Object Appears/Enters Area, Object Not Present in Area, Objects Enter Area, Objects Leave Area, Object Stops in Area, Direction Violated, Tamper Detection. Classified object types: Outdoor mode: Person + Vehicle (sub-types: Car, Truck, Bicycle, Motorcycle, Bus). Indoor mode: Person.
Cybersecurity
Password protection, HTTPS encryption, digest authentication, WS authentication, user access log, 802.1X port-based authentication. FIPS options: FIPS 140-2 Level 1 (optional camera license) and FIPS 140-2 Level 3 (optional accessory).
Casing
IK10+ impact rating and IP67 water resistance. NEMA 4X enclosure rating applies to the stainless-steel variant (windblown dust, hose-directed water, corrosion resistance). Body options: Stainless steel or cold-rolled steel; polycarbonate dome bubble. Operating temperature: continuous recording −40°C to +55°C.
Warranty
Covered under Avigilon/Motorola Solutions limited warranty terms (warranty duration/conditions can vary by region and agreement—confirm at time of quote).

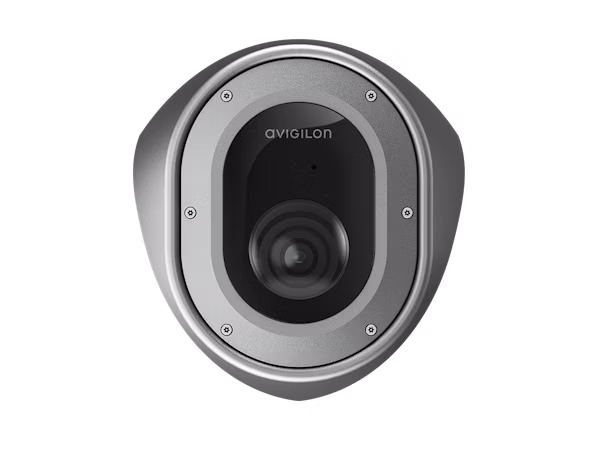

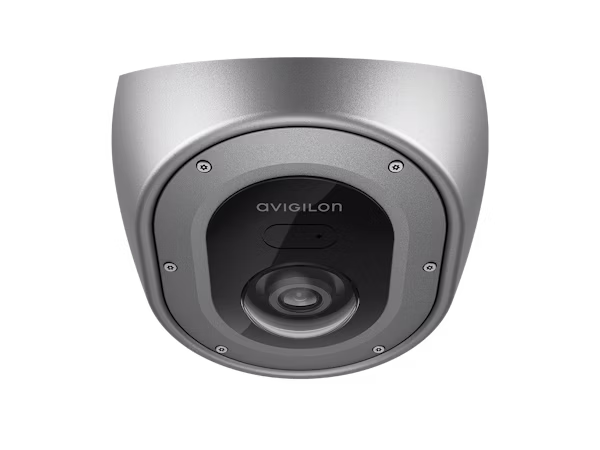

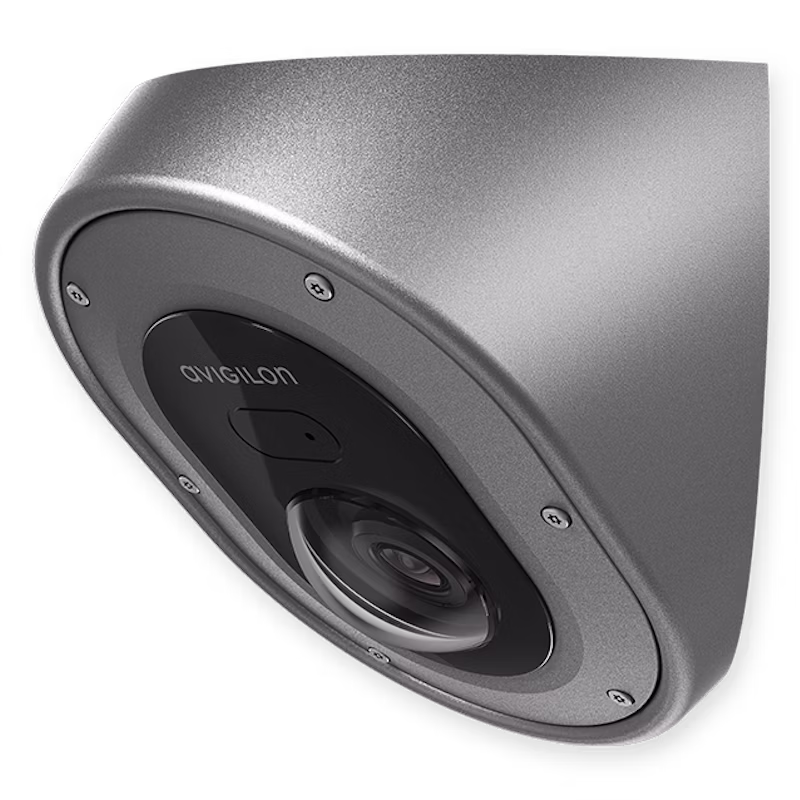

Avigilon H5A Corner Camera Overview
The Avigilon H5A Corner Camera is purpose-built for high-risk interior spaces—designed as an anti-ligature, no-grip corner-mounted unit that’s difficult to tamper with, detach, or disable, making it well suited to corrections, custody, healthcare, and other vulnerable areas. The range includes 3MP and 5MP models with a 3–9 mm varifocal lens (remote focus and zoom), delivering a wide, controllable field of view, plus strong image performance in tough lighting with WDR up to 126 dB (on) and low-light capability down to 0.027 lux (colour) / 0.014 lux (mono) and 0 lux with IR. For discreet night coverage, it uses high-power 940 nm “invisible” IR rated up to 15 m, and it can record audio via a built-in microphone (disable-able where required). Operationally, it reduces bandwidth and storage load with H.264/H.265 plus HDSM SmartCodec™, and it’s embedded with Next-Generation Video Analytics and Unusual Activity Detection, with support for higher-level Avigilon workflows such as Appearance Search™ and Facial Recognition (system dependent). Built for harsh treatment and wash-down environments, it’s IP67 water resistant and IK10+ impact rated, with a stainless-steel variant that carries a NEMA 4X enclosure rating for corrosion resistance; it’s also rated for continuous operation from −40°C to +55°C and supports enterprise deployment features including ONVIF Profile S/T/G/M and optional FIPS 140-2 compliant cryptography licensing.
Avigilon H5A Corner Camera Downloads
