The Avigilon H5A Thermal range is purpose-built for reliable perimeter detection in poor visibility, using heat-sensing imaging to spot activity in complete darkness and tough conditions such as smoke or foliage—without relying on visible light. The lineup includes 320×256 (QVGA) and 640×512 (VGA) uncooled VOx microbolometer models with 12 μm pixel pitch, 8–14 μm spectral range, and up to 30 fps capture for smooth tracking, plus multiple fixed F1.0 lens options (4.3–36.0 mm) to match wide-area coverage or longer-range detection. Built in Next-Generation Video Analytics classifies people and vehicles and supports practical rules like objects in area, loitering, line crossing/beam crossing, direction violations, and tamper detection, helping reduce nuisance alarms while improving response speed. For safety use-cases, radiometric variants measure surface temperature (with a stated thermal dynamic range of -40°C to 225°C) and can alarm on threshold breaches or abnormal temperature changes over time—useful for hotspot or overheating equipment monitoring. The camera is engineered for harsh sites with IK10 impact resistance, IP66/IP67 sealing and NEMA Type 4X protection, operating from -40°C to +65°C, and supports efficient recording via H.264/H.265 with HDSM SmartCodec™ + idle scene mode and microSD edge storage, alongside enterprise security controls including HTTPS, 802.1X, Secure Boot, an onboard FIPS 140-2 Level 3 TPM, and optional FIPS 140-2 Level 1 cryptography licensing.
Avigilon H5A Thermal Camera
- Thermal detection in any conditions: Sees through darkness, smoke and light foliage with 320×256 or 640×512 thermal imaging and lens options for wide or long-range coverage.
- AI alerts with fewer false alarms: Built-in analytics classify people and vehicles and support rules like line crossing, loitering and objects in area.
- Safety + rugged build: Optional radiometric temperature monitoring for safety alarms, with IK10, IP66/67, NEMA 4X protection for harsh outdoor sites.
Key Features
Resolution
Avigilon H5A Thermal Camera • Model resolutions: QVGA 320×256 or VGA 640×512 (both uncooled VOx microbolometer) • Pixel pitch 12 μm • Spectral range 8–14 μm • Aspect ratio 5:4 • Imaging rate up to 30 fps • Resolution scaling: 320×256 can be scaled up to 640×512 • 640×512 can be scaled down to 320×256 • Sensitivity NETD ≤50 mK (and NETD ≤40 mK on 30 fps models when Frame Averager is enabled) • 3D noise reduction filter: Yes • Thermal palettes: White Hot, Black Hot, Rainbow, RainHC, IronBow, Lava, Artic, GlowBow, GradedFire, Hottest
IR Illumination
Not required (thermal imaging) • Detects heat signatures without visible light or IR illumination • No integrated IR LEDs • Automatic flat field correction (FFC) for thermal image uniformity (thermal + temporal).
Dynamic Range
Thermal dynamic range (radiometric measurement range): -40°C to 225°C (may vary based on operating temperature) • Radiometric alarming supports threshold and change-over-time alarms on supported models.
Artificial Intelligence
Built-in Next-Generation Video Analytics • Detects and classifies people and vehicles to help reduce false alarms and speed up response in perimeter applications.
Analytics
Motion detection: Pixel and classified objects • Tamper detection: Yes • Privacy zones: Up to 64 • Supported analytic event types include common perimeter rules such as Objects in Area, Object Loitering, and Objects Crossing Beam (plus additional object-based events depending on configuration).
Cybersecurity
Security features: Password protection • HTTPS encryption • Digest authentication • WS authentication • User access log • 802.1X port-based authentication • Cryptography: FIPS 140-2 Level 1 (with optional camera license) • Onboard FIPS 140-2 Level 3 certified TPM • Secure Boot • ONVIF compliant: Profile S • Profile T • Profile G • Profile M • Network: 100BASE-TX (CAT5, RJ-45) • Device management: SNMP v2c / SNMP v3
Casing

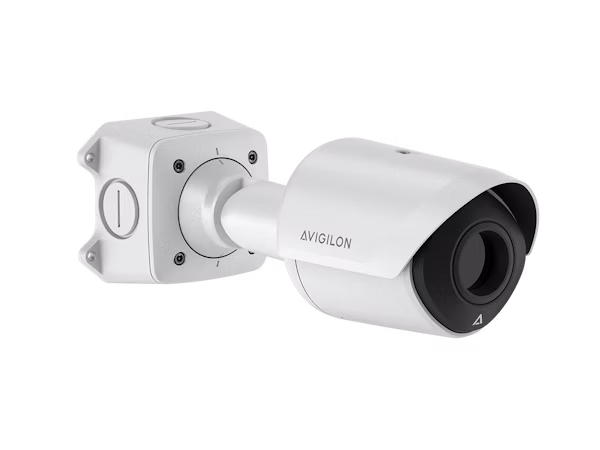

Outdoor bullet housing with sunshield • Body aluminum • Sunshield polycarbonate • Finish: powder coat (close to Pantone 427C) • Adjustment range: ±175° pan • ±90° tilt • ±175° azimuth • Dimensions (incl. junction box): 307×126×106 mm • Weight (camera, model dependent): ~1.42–1.52 kg • Junction box weight: 0.47 kg • Environmental: IP66/IP67, NEMA Type 4X, IK10 (impact/window impact coverage varies by model) • Operating temperature: -40°C to +65°C • Storage: -10°C to +70°C • Humidity: 0–93% non-condensing • Power: PoE IEEE 802.3af Class 3 • Power consumption: 10 W • Aux power: 12 VDC ±10% (9 W min) or 24 VAC ±10% (15 VA min) • Interfaces: USB 2.0 • Onboard storage: microSD/microSDHC/microSDXC (video speed class card required; Class V10 or better recommended) • I/O: Alarm In/Out • Audio: Line-level in/out (Opus, G.711 PCM 8 kHz)
Warranty
5-year limited warranty • Extended warranty not available.
