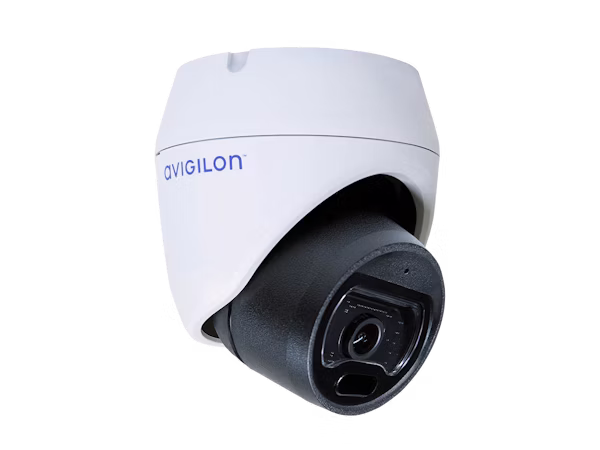

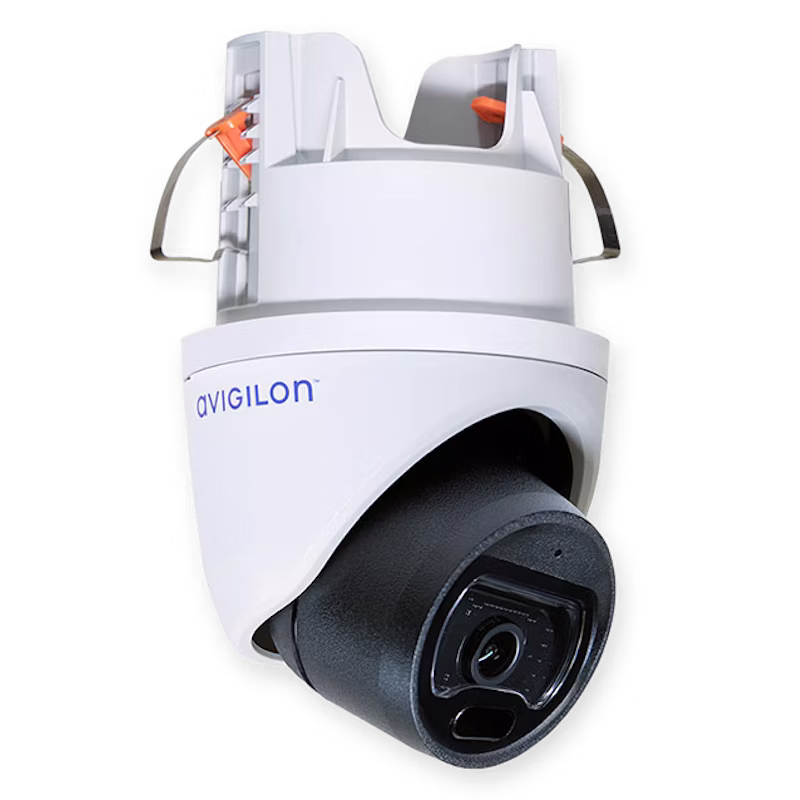

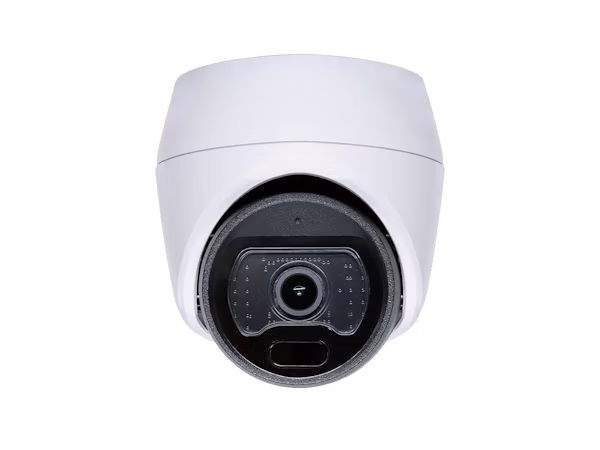

Avigilon H5M Camera
- Clear evidence, day or night: Choose 2 MP or 5 MP resolution with dual-exposure WDR up to 110 dB to handle bright entries and dark shadows, plus LightCatcher™ low-light tuning for sharper detail after hours.
- Built-in IR for outdoor visibility: Integrated 850 nm IR illumination delivers up to 15 m (50 ft) night coverage, with automatic day/night switching and 0 lux performance when IR is active.
- Smarter monitoring with lower overhead: Unusual Motion Detection (AI) highlights activity that may be missed during routine viewing, while H.264/H.265 with HDSM SmartCodec™ + idle scene mode reduces bandwidth/storage impact; built for harsh sites with IP66 weather rating, IK08 impact resistance, and ONVIF Profile S/T for straightforward integration.
Key Features
Resolution
Avigilon H5M Outdoor Dome Camera • Models: 2.0 MP and 5.0 MP • Image sensor: 1/2.8″ progressive scan CMOS • Max resolution: 2 MP up to 1920×1080 (16:9) (also supports 1280×960 (4:3) and 1280×1024 (5:4)) • 5 MP up to 2592×1944 (4:3) (also supports 2560×1440 (5:4)) • Max image rate: 2 MP 25 fps (50 Hz) / 30 fps (60 Hz) • 5 MP 25 fps (50 Hz) / 24 fps (60 Hz) • Resolution scaling down to 384×216 • Bandwidth management: HDSM SmartCodec™ with idle scene mode • 3D noise reduction: Yes • Video compression: H.264 HDSM SmartCodec™, H.265 HDSM SmartCodec™, Motion JPEG • Streaming: Multi-stream H.264, multi-stream H.265, Motion JPEG • Connection: 100BASE-TX Ethernet (RJ45, CAT5) • ONVIF: Profile S, Profile T
IR Illumination
Integrated IR on IR models • High-power 850 nm LEDs • IR distance: 15 m (50 ft) max at 0 lux • Minimum illumination: With IR: 0 lux (color or monochrome mode) • Without IR: 2 MP 0.01 lux color / 0.005 lux mono (F1.2); 5 MP 0.03 lux color / 0.015 lux mono (F1.2) • Day/Night control: Automatic or Manual • IR-corrected optics for consistent focus day/night
Dynamic Range
Dual-exposure WDR • WDR Off: 83 dB • WDR On: 110 dB (dual exposure)
Artificial Intelligence
Unusual Motion Detection (UMD) • Uses AI to flag unusual activity that may be missed with basic motion-only viewing • 5 MP model supports Full feature or High framerate mode (UMD disabled in high framerate mode)
Analytics
Motion detection: Pixel motion + UMD • Tamper detection: Yes • Privacy zones: Up to 64 • Electronic shutter: Auto or Manual (1/7.5 to 1/8000 sec) • White balance: Auto or Manual • Backlight compensation: Adjustable • Flicker control: 50 Hz / 60 Hz
Cybersecurity
Security features: Password protection, HTTPS encryption, Digest authentication, WS authentication, User access log, 802.1X port-based authentication • Network protocols include: IPv4/IPv6, HTTP/HTTPS, RTSP/RTP/RTCP, DHCP, NTP, DNS, SOAP, HSTS • Device management: SNMP v2c / SNMP v3
Casing
Outdoor fixed dome built for harsh conditions • Environmental ratings: IP66 weather and IK08 impact • Operating temperature: -30°C to +55°C • Storage: -40°C to +70°C • Housing materials: Polycarbonate housing; polycarbonate + aluminum body • Finish: injection molded, close to RAL9002 • Adjustment range: 360° pan, ±180° azimuth, 0°–90° tilt • Dimensions: Surface mount 100×100×115 mm • In-ceiling 101×101×162 mm • Weight: 0.355 kg (surface) / 0.37 kg (in-ceiling) • Power: PoE IEEE 802.3af Class 0 • Power consumption: 8 W
Warranty
5-year warranty
Avigilon H5M Outdoor Dome Camera Overview
The Avigilon H5M is a cost-effective outdoor dome camera line designed for compact, vandal-resistant installations where you still need strong image quality and efficient recording. Available in 2 MP (up to 1920×1080) and 5 MP (up to 2592×1944), it uses a fixed 2.8 mm f/1.2 IR-corrected lens to deliver a wide scene view (up to 112° horizontal on 2 MP, and up to 104° horizontal on 5 MP), with LightCatcher™ low-light performance and dual-exposure WDR up to 110 dB to retain detail in mixed lighting like doorways, car parks, and loading docks. For night coverage, IR models include high-power 850 nm IR with up to 15 m illumination at 0 lux, plus automatic day/night switching. To reduce ongoing storage and bandwidth costs, the H5M supports H.264 and H.265 with HDSM SmartCodec™, multi-streaming, and idle scene mode, while its AI-based Unusual Motion Detection (UMD) helps flag unexpected activity beyond basic pixel motion. Built for harsh conditions, it carries IP66 weather and IK08 impact ratings, runs on PoE (IEEE 802.3af) at around 8 W, supports ONVIF Profiles S and T for integration, and is backed by a 5-year warranty.
Avigilon H5M Dome Downloads
