The Avigilon H6X Box Camera line is designed for maximum deployment flexibility—a compact box form factor that lets you select the exact lens you need (including long-zoom options) via an iCS/CS thread mount, with support for remote zoom/focus/iris control when using iCS lenses (and remote back focus/autofocus with DC or P-iris lenses). The range includes 2 MP, 4 MP, 6 MP and 8 MP models, delivering strong image detail in difficult scenes with LightCatcher™ low-light performance and True WDR, reaching up to 150 dB in supported modes to retain usable evidence across bright highlights and deep shadows. Built-in intelligence helps operators work faster, with AdaptAI video analytics and classified object detection (people and vehicles, with vehicle sub-types in outdoor mode), plus practical features like Electronic Image Stabilization, Corridor Mode, tamper detection, and up to 64 privacy zones. For efficient recording, the H6X supports H.264/H.265 with HDSM SmartCodec™, multi-streaming and idle scene optimisations, and adds resilience with dual microSD slots for edge recording (tested up to 1.5 TB). It’s also engineered for security and compliance—no built-in microphone or wireless, enterprise hardening such as HTTPS, 802.1X, Secure Boot, signed/encrypted firmware, and an onboard FIPS 140-2 Level 3-certified TPM—and integrates cleanly via ONVIF Profiles S/T/G/M, with Gigabit Ethernet and PoE (802.3af Class 3) powering options (plus 12–24 VDC), and the ability to be placed in a compatible weatherproof enclosure for outdoor use.

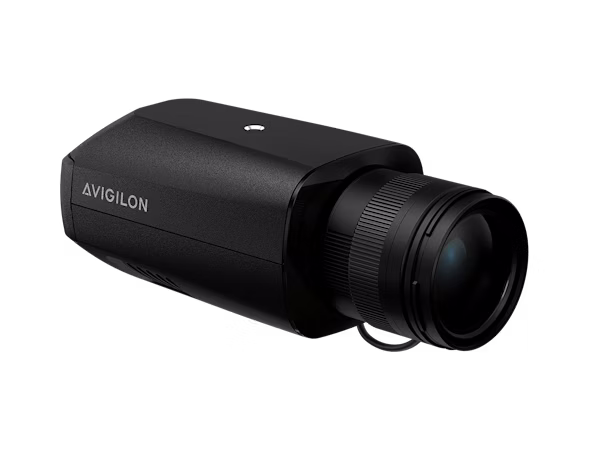

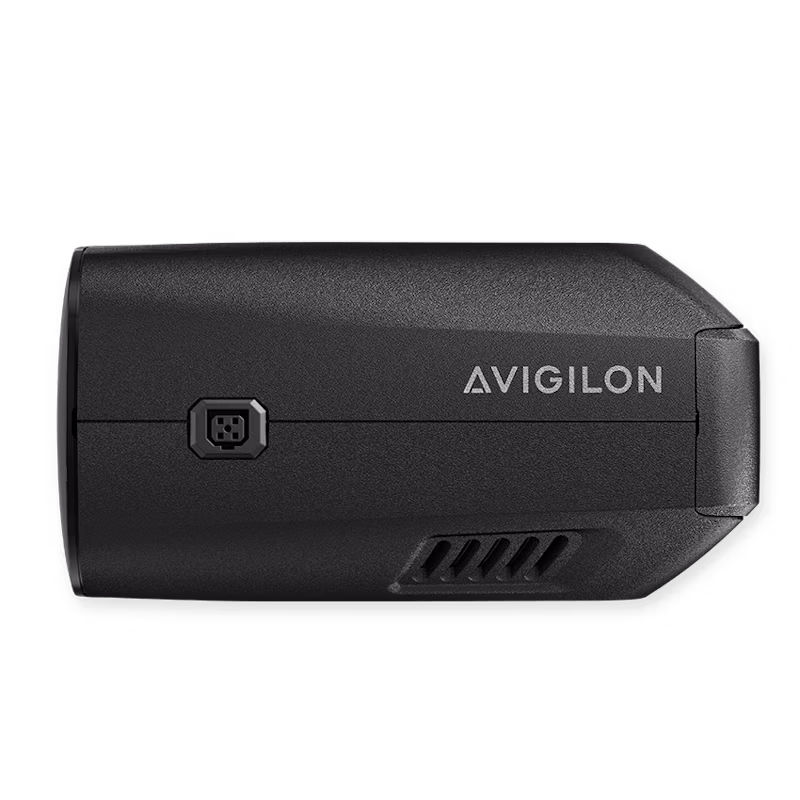

Avigilon H6X Box Camera
- Deploy it your way: Box form factor with iCS/CS lens mount and multiple lens options (including long-zoom)—and it’s designed without a built-in microphone or wireless tech to help meet privacy/cyber compliance needs (and can be placed in a weatherproof housing for outdoor use).
- Crisp evidence in tough lighting: Up to 8 MP with LightCatcher™ low-light performance and True WDR up to 150 dB (mode dependent), plus Corridor Mode and electronic image stabilization to keep footage readable in real-world scenes.
- Smarter + safer + lower running costs: Onboard AdaptAI analytics, efficient H.264/H.265 with HDSM SmartCodec™ + idle scene mode, dual microSD edge storage, and hardened security including FIPS 140-2 Level 3 TPM, Secure Boot, and signed/encrypted firmware with ONVIF Profile S/T/G/M interoperability.
Key Features
Resolution
Avigilon H6X Box Camera (H6X-B) • Models: 2.0 MP / 4.0 MP / 6.0 MP / 8.0 MP • Image sensors: 2 MP = 1/2.8″ progressive scan CMOS; 4/6/8 MP = 1/1.8″ progressive scan CMOS • Primary streaming resolutions (max): 2 MP 1920×1080 (16:9) • 4 MP 2688×1520 (16:9) / 1984×1488 (4:3) • 6 MP 3328×1872 (16:9) / 2880×2160 (4:3) • 8 MP 3840×2160 (16:9) / 2880×2160 (4:3) • Multi-streaming: Primary + Secondary + Tertiary streams available • Compression: H.264 HDSM SmartCodec™ / H.265 HDSM SmartCodec™ / Motion JPEG • Bandwidth tools: HDSM SmartCodec™ + Idle Scene Mode • 3D noise reduction: Yes • SNR: > 50 dB • Network: 1000BASE-T (Gigabit), RJ45, CAT5e
IR Illumination
No integrated IR illuminators (box form factor) • Automatic IR cut filter supported • IR performance depends on the selected lens and any external IR / illuminator / housing solution used.
Dynamic Range
True WDR/HDR • WDR Off: Up to 83 dB • WDR On (by model): 2 MP: 130 dB (dual exposure, 30 fps) or 150 dB (triple exposure, ≤20 fps) • 4 MP: 120 dB (dual exposure, 30 fps) or 144 dB (triple exposure, ≤20 fps) • 6 MP & 8 MP: 144 dB (triple exposure, ≤20 fps)
Artificial Intelligence
AdaptAI video analytics • Classified object detection (by mode): Indoor mode = Person • Outdoor mode = Person + Vehicle sub-types (Car, Pickup Truck, Large Truck, Van, Bicycle, Motorcycle, Bus) • Teach-By-Example: Yes when used with Avigilon Control Center (ACC) or Avigilon Unity Video • Designed to support Focus of Attention workflows when used with ACC7™.
Analytics
Supported analytic events: Objects in Area (incl. counting) • Object Loitering • Objects Crossing Beam (uni/bi-directional) • Object Appears/Enters Area • Object Not Present in Area • Objects Enter Area (threshold) • Objects Leave Area (threshold) • Object Stops in Area • Object Too Close • Direction Violated • Tamper Detection • Motion detection: Pixel motion (selectable sensitivity/threshold) + classified object detection • Privacy zones: Up to 64 • Electronic Image Stabilization (EIS): Yes • Corridor Mode: Yes (image rotation 0°/90°/180°/270°) • Minimum illumination (lens dependent): 2 MP 0.01 lux color / 0.003 lux mono @ f/1.4 • 4 MP 0.008 lux color / 0.003 lux mono @ f/1.3 • 6 MP 0.02 lux color / 0.006 lux mono @ f/1.3 • 8 MP 0.02 lux color / 0.006 lux mono @ f/1.3
Cybersecurity
Designed without a built-in microphone or built-in wireless • Security controls: Password protection • HTTPS encryption • Digest authentication • WS authentication • User access log • 802.1X port-based authentication • Cryptography options: FIPS 140-2 Level 1 (with optional camera license) • Onboard FIPS 140-2 Level 3 certified TPM • Secure Boot • Signed & encrypted firmware • ONVIF: Profiles S / T / G / M • Protocols include: IPv4/IPv6, HTTP/HTTPS, SOAP, DNS, NTP, RTSP, RTP/RTCP, TCP/UDP, IGMPv3, DHCP, Zeroconf, HSTS • Secure streaming options include SRTP • Device management: SNMP v2c / SNMP v3
Casing
Compact box form factor for flexible lensing and mounting • Dimensions (L×W×H): 122×75×63 mm • Weight: 0.55 kg • Body: Aluminum + plastic • Finish: Cast, powder coated, black • Mounting: 1/4”-20 UNC (top & bottom) • Operating temperature: -10°C to +65°C • Storage: -10°C to +70°C • Humidity: 0–95% non-condensing • Power: PoE IEEE 802.3af Class 3 • External power: 12–24 VDC ±10% • Max power consumption: 13 W • Redundant power: Seamless failover between PoE and auxiliary power • Onboard memory: 4 GB RAM / 4 GB Flash • Peripherals/IO: USB 2.0 • Audio: G.711 PCM 8 kHz / Opus; line-level in/out • External I/O: Relay In, Relay Out, 12 VDC out (50 mA), RS-485 • Optional accessory: USB Wi-Fi adapter (wireless is not built-in).
Warranty
5-year limited warranty (extended warranty not available).
