Avigilon L6A Enterprise LPR Camera

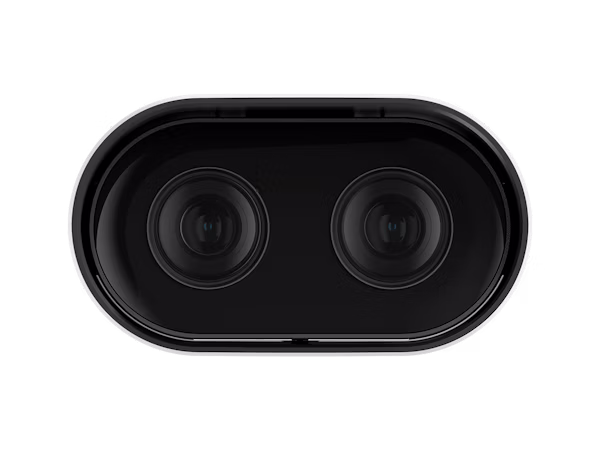

- Dual-lens LPR + context video Two motorised lenses pair a monochrome LPR sensor with a colour context sensor, so you capture plates and usable scene evidence in one compact 3MP unit.
- Day-to-night capture at speed 5–125 mm remote zoom/focus, 0-lux performance with built-in IR (choose 850 nm or 730 nm; up to 100 m / 330 ft), designed to capture vehicles travelling up to 80 mph (161 km/h).
- Enterprise-ready intelligence + security Pull searchable vehicle data (plate, region, make/model/colour, GPS), connect via GigE + PoE+, and deploy confidently with IP66/IP67 + IK10 + Type 4X ruggedisation plus Secure Boot, 802.1X and FIPS 140-2 L3 TPM cybersecurity.
Key Features
Resolution
3.0 MP dual-lens LPR camera with two global-shutter sensors: • Context sensor: 1/2.9″ colour global-shutter CMOS
• LPR sensor: 1/2.9″ monochrome global-shutter CMOS
Max resolution: 1440 × 1080 (4:3)
Max frame rate (50/60 Hz): 50/60 fps
Lens / FOV: 5–125 mm motorised lens; 54°–5° horizontal, 40°–4° vertical AoV
Shutter: 1/600 to 1/20000 sec (auto/manual)
IR Illumination
Integrated IR illuminator, 0 lux with IR. Max IR distance: 100 m (330 ft). IR wavelength options: 850 nm or 730 nm. Thermal behaviour: IR illuminator turns off at ≥60°C.
Dynamic Range
WDR / dB rating not specified in the datasheet. Includes adjustable backlight compensation and 3D noise reduction support.
Artificial Intelligence
Built-in LPR / vehicle detection analytics designed to extract actionable vehicle data alongside video streams.
Analytics
Supported vehicle insights include: • Plate characters
• Plate state/region
• Vehicle make, model, colour
• GPS coordinates
Privacy masking: up to 16 privacy zones.
Cybersecurity
Secure Boot, password protection, HTTPS encryption, digest authentication, WS authentication, user access log, 802.1X port-based authentication, and an onboard FIPS 140-2 Level 3 certified TPM. ONVIF: Profiles S and M.
Casing
Rugged ratings: IK10, IP66 / IP67, Type 4X. Operating temp: -40°C to +60°C (cold start to -25°C). Storage temp: -10°C to +70°C; absolute max 74°C (NEMA TS2 reference). Construction: Aluminum body/housing; adjustment range ±175° pan, ±90° tilt, ±175° azimuth. Size/weight (with junction box): 361 × 197 × 111 mm; 3.15 kg.
Warranty
5-year warranty.

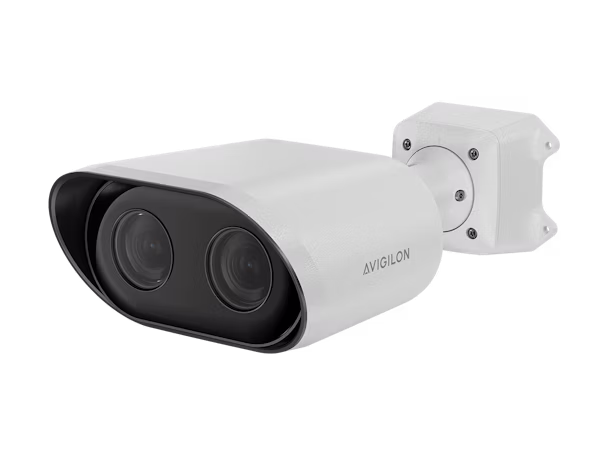

Avigilon L6A Enterprise LPR Camera Overview
The Avigilon L6A is a 3MP-class, dual-lens enterprise LPR camera designed to capture both high-confidence plate reads and colour context video in one device, using two 1/2.9″ global-shutter sensors (monochrome for LPR, colour for scene awareness) with video streaming up to 1440×1080 at 50/60 fps. It features a motorized 5–125 mm lens with remote zoom/focus, autofocus, P-iris and IR-cut, plus integrated IR with 730 nm or 850 nm options for 0-lux capture and an IR illumination distance up to 100 m (330 ft). For operations, it’s designed to work with Avigilon’s LPR software ecosystem to turn reads into action—supporting vehicle metadata such as plate characters, state/region, make, model, colour and GPS coordinates—while still integrating cleanly into enterprise networks via GigE, ONVIF Profiles S and M, PoE+ (802.3at Class 4, up to 25 W), microSD storage, and alarm I/O. Built for real deployments, it adds a strong security posture (Secure Boot, HTTPS, 802.1X, FIPS 140-2 Level 3 certified TPM) plus rugged ratings (IK10, IP66/IP67, Type 4X) and a −40°C to +60°C operating range, backed by a 5-year warranty.
Avigilon L6A Enterprise LPR Downloads
