AXIS F Modular Camera Series
- Design it your way: Split-camera system with separate sensor + cable + main unit, so you can hide the main unit and place tiny sensors in tight or discreet locations—with sensor-to-main cable runs up to 30 m.
- Scale coverage with fewer licences: Choose 1-channel or 4-channel main units and combine multiple sensors on one main unit to reduce hardware clutter and often lower VMS licensing costs versus deploying separate full cameras.
- Sharper video + smarter edge analytics: Newer F-Series platforms are built on ARTPEC-8 with a DLPU, supporting advanced on-edge analytics and sensor options that reach up to 4K for stronger detail and faster investigations.
Key Features
Resolution
Sensor options: up to 4K (sensor dependent), including compact indoor sensors (e.g., AXIS F2108) and rugged outdoor/vehicle-ready sensors (e.g., F21/F41 families). Main units (examples): 1-channel AI main unit options support up to 4K at 30 fps (or 720p up to 180 fps, sensor/unit dependent). 4-channel rugged AI main units support up to 4K at 12/15 fps and can run up to four sensors simultaneously (model dependent). Architecture: “Split-camera” design with separate sensor + cable + main unit for discreet placement and easier serviceability.
IR Illumination
Optional IR sensor units available (model dependent). For example, AXIS F4105-LRE Dome Sensor includes built-in IR for discreet low-light coverage. Cable run flexibility: sensor and main unit can be placed up to 30 m (98 ft) apart (with compatible F-Series cables).
Dynamic Range
Forensic WDR available (sensor dependent) to retain usable detail in mixed lighting (bright windows/doorways and dark interiors).
Artificial Intelligence
ARTPEC-8 + DLPU (AI main units): enables advanced on-edge analytics and richer metadata for faster search and response (capabilities vary by main unit generation/model).
Analytics
Preinstalled analytics on AI main units (model dependent): AXIS Object Analytics for detecting, classifying, tracking, and counting humans and vehicle types. Edge application platform: support for ACAP to add approved third-party analytics/apps (capabilities depend on the main unit). Multi-sensor efficiency: 4-channel main units can consolidate multiple viewpoints into one IP device, often reducing VMS licensing and network overhead versus multiple full cameras (deployment dependent).
Cybersecurity
Axis Edge Vault platform (model dependent) to help protect device identity and support secure device onboarding/authorisation. Common hardening features across supported models include Signed OS, secure boot, encrypted storage/file system (where supported), and modern network protections such as TLS and 802.1X (exact feature set varies by model).
Casing
Sensor units: ultra-compact form factors for discreet installs; rugged options available for outdoor/vehicle environments (model dependent). Connectors/cabling: SMA-FAKRA connections on supported sensors/cables for vibration-resistant, reliable installations (ideal for transport and machinery). Main unit form factors: options include rugged “-R” units for high-vibration environments and barebone/UL-recognised units for integration into certified end-products (model dependent).
Warranty
Covered under Axis 5-year warranty service for eligible purchases shipped from Axis on/after 1 April 2020 (coverage can vary by product and region—confirm at time of quote).
AXIS F Modular Camera Series: Discreet, Customisable Multi-Sensor Surveillance

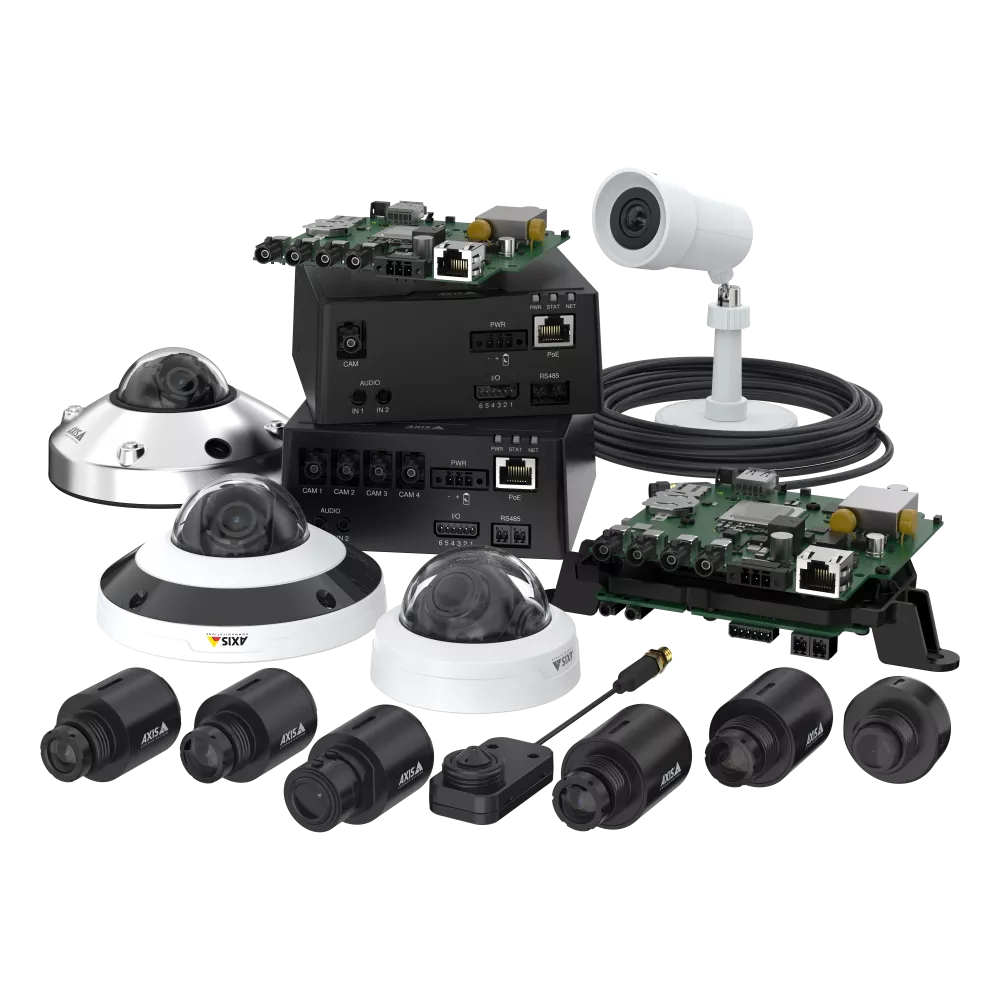

The AXIS F Modular Camera Series is built around a “split-camera” design—separating the main unit (processing, network, storage and interfaces) from one or more compact sensor units—so you can place tiny sensors in tight or discreet locations while hiding the main unit out of sight. The latest generation is AI-powered on ARTPEC-8 with a DLPU, enabling advanced on-edge analytics and richer metadata, and it supports sensor options up to 4K, giving modular installations a major step up in usable detail. The range includes single-channel and 4-channel main units (including rugged units for high-vibration/onboard use and UL-recognised barebone units for integration into certified end products), helping you scale coverage while reducing hardware clutter and often simplifying VMS licensing (one main unit can service multiple sensors). Installation is designed for demanding environments with secure FAKRA-based connections and sensor-to-main cable runs up to 30 m, making it practical for vehicles, kiosks/ATMs, retail fit-outs, and constrained architectural spaces. With options for audio and I/O, plus edge recording and strong cybersecurity foundations, the F Series delivers a flexible “build-to-purpose” platform that’s easy to tailor—whether you need discreet entry coverage, multi-angle views from a single main unit, or higher-resolution evidence capture without the footprint of full-size cameras.
AXIS F Modular Series Sensor Downloads
AXIS F Modular Series Main Unit Downloads
