AXIS I8116-E video intercom with 5MP wide-angle view, edge AI analytics, two-way audio, SIP and rugged IP65 design.

Small mullion intercom with big visibility: ultra-wide 5MP video, WDR, and edge analytics to identify visitors and record incidents at the door.
Speak clearly, even in noisy foyers: full-duplex two-way audio with noise/echo cancellation for natural conversations.
Integrates cleanly and stays secure: SIP + ONVIF + VMS support, Axis Edge Vault cybersecurity, and PoE + lock/I/O control for remote entry release.

panorama_wide_angle

5MP Wide-Angle Video

headset_mic

Full-Duplex Two-Way Audio

psychology

Edge AI Analytics

door_front

Remote Door Control

Key Features

Resolution

5 MP max: 2592×1944 (4:3).

Other supported streams: 1920×1080 to 1280×720 (16:9); 2592×1944 to 640×480 (4:3).

Lens / view: 1.95 mm, F2.2; 162° horizontal / 118° vertical; M12 mount, fixed iris, fixed focus.

Max frame rate: up to 30/25 fps (60/50 Hz) with H.264/H.265 in all resolutions (Motion JPEG can reduce frame rate).

Compression: H.264 (Main/High), H.265 (Main), Motion JPEG, with Axis Zipstream in H.264/H.265; multiple independent streams; VBR/ABR/MBR control.

Low-light spec: 0.15 lux (colour) at 50 IRE; 0 lux with LED lit.

Shutter: 1/38500 s to 1/5 s.

IR Illumination

Integrated LED illumination supports operation down to 0 lux (with LED lit).

(The datasheet does not specify IR wavelength or range; treat this as on-device illumination rather than a stated “IR spec.”)

Dynamic Range

WDR (wide dynamic range) to handle backlit entrances and harsh contrast.

Includes Lightfinder image processing to retain colour detail and reduce noise in very low light.

Artificial Intelligence

Built-in DLPU (deep learning processing unit) for on-device analytics.

AXIS Object Analytics preinstalled for classification-based detection (humans/vehicles) and scalable edge analytics.

Analytics

AXIS Object Analytics: object classes humans and vehicles (vehicle types include cars, buses, trucks, bikes). Scenarios include line crossing, object in area, time in area, crossline counting, and occupancy in area; up to 10 scenarios; colour-coded bounding boxes; include/exclude polygons; perspective configuration; ONVIF Motion Alarm event support.

Included apps/features: AXIS Video Motion Detection, active tampering alarm, audio detection.

Metadata output (for smarter search/filtering in VMS): classes can include humans, faces, vehicles, license plates, with attributes such as vehicle colour and clothing colour (where applicable).

Cybersecurity

Edge security: Signed OS, secure boot, brute-force delay protection, digest authentication, OAuth 2.0/OpenID flows, password protection, AES-XTS-Plain64 256-bit SD card encryption, and encrypted filesystem.

Hardware security: Axis Edge Vault with Secure Element (CC EAL 6+), SoC security (TEE), Axis device ID, secure keystore, and signed video (tamper-evident video authenticity).

Network security: 802.1X (EAP-TLS, PEAP-MSCHAPv2), MACsec (PSK/EAP-TLS), 802.1AR, HTTPS/HSTS, TLS 1.2/1.3, NTS, X.509 certificate PKI, and a host-based firewall.

Casing

Outdoor-rated: IP65, NEMA 4X, IK08 (and IK10 when mounted with AXIS TI8605 Protection Cover). Speaker is IK07 rated.

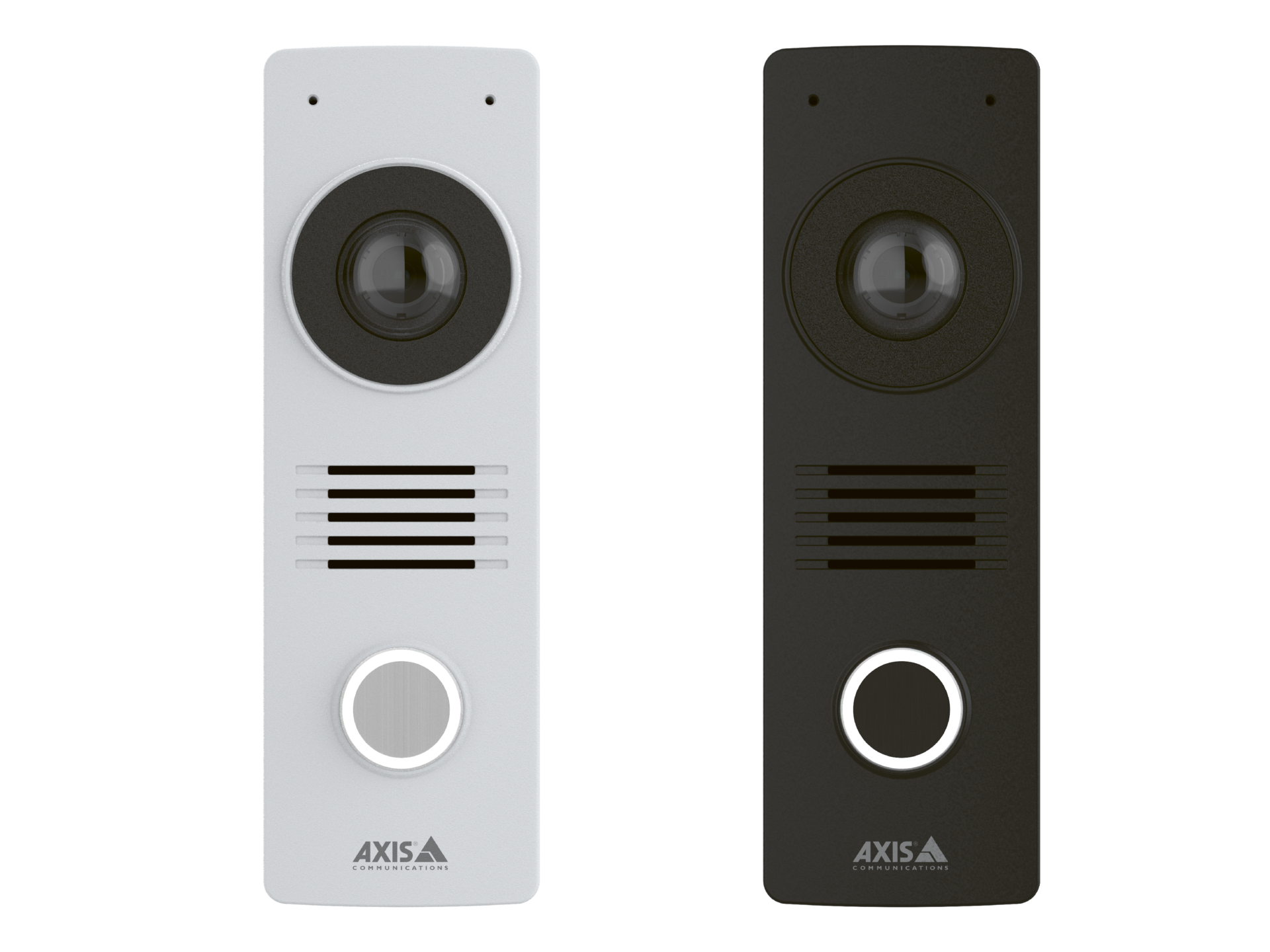

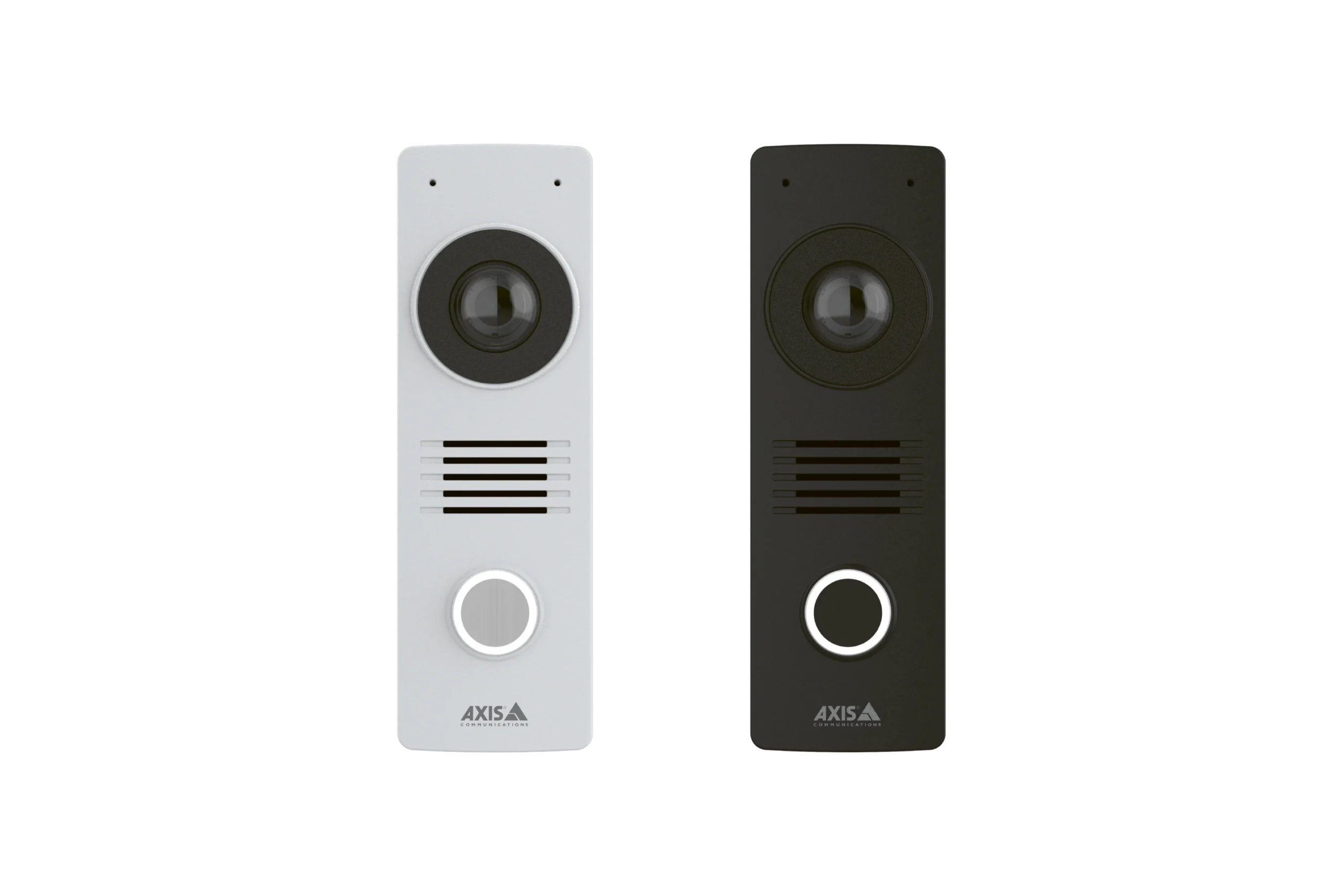

Build: powder-coated chromate aluminum and zinc casing; polycarbonate (PC) dome. Colours: white (NCS S 1002-B) or black (NCS S 9000-N).

Operating: -30°C to 60°C (start-up -25°C); humidity 10–100% RH (condensing). Storage: -40°C to 65°C, 5–95% RH (non-condensing).

Weight: 400 g.

Power: PoE 802.3af/802.3at Type 1 Class 3; typ. 4 W, max 10.8 W. Power out: 12 VDC, max 350 mA (e.g., for external devices / lock workflows).

Connectivity & control: RJ45 10/100/1000; terminal block for 2 configurable inputs/digital outputs (shared connector: used for either I/O or RS485); RS485 half duplex/2-wire (for reader/OSDP-style integrations).

Audio & comms: full-duplex two-way audio with echo cancellation, noise reduction, beamforming; 2 built-in microphones (disableable) + built-in speaker (79 dB @ 1 m, 1 kHz). Supports SIP (VoIP/PBX) and ONVIF profiles (integration dependent).

Storage: microSD/microSDHC/microSDXC + NAS recording; SD card encryption supported.

Warranty

5-year warranty (Axis standard terms).

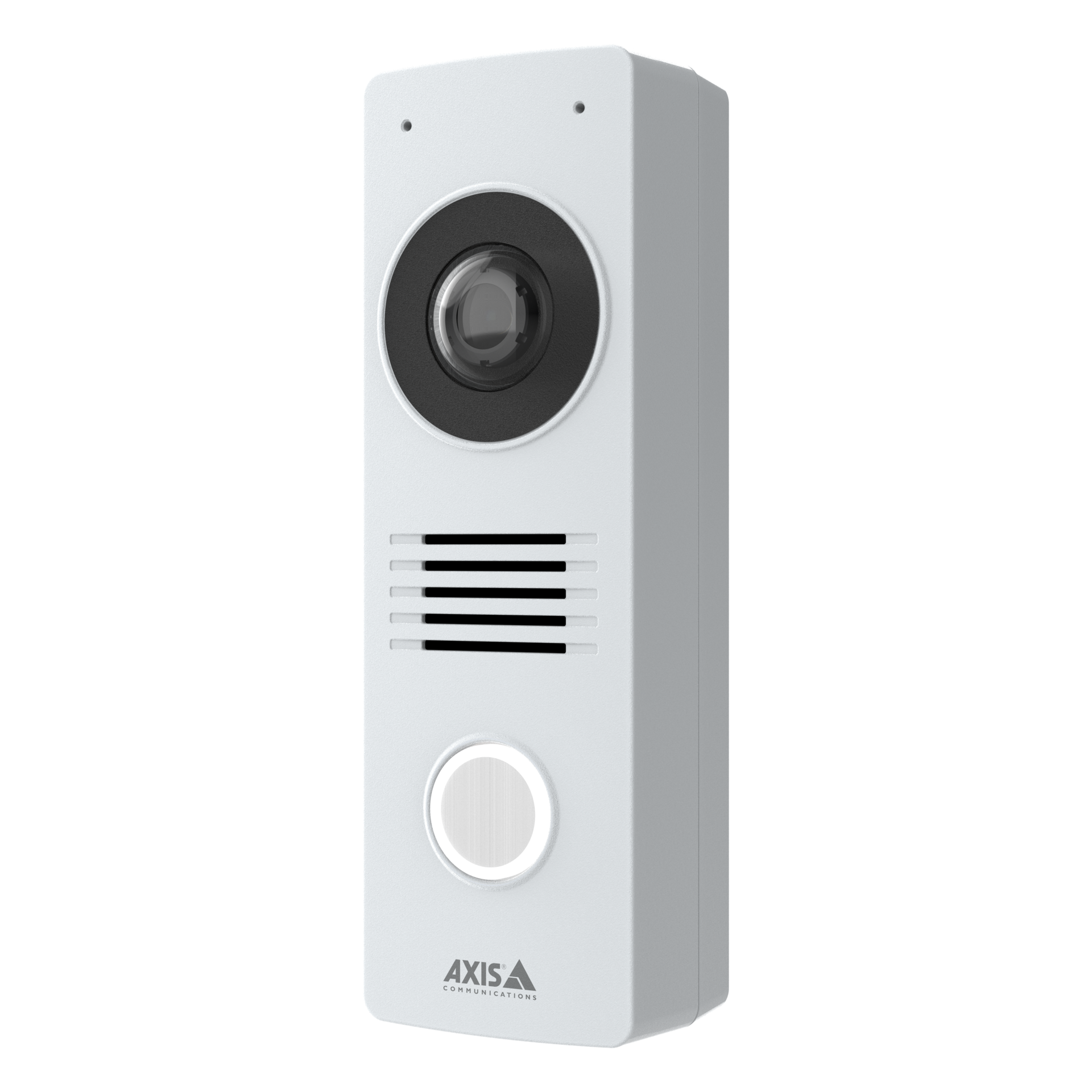

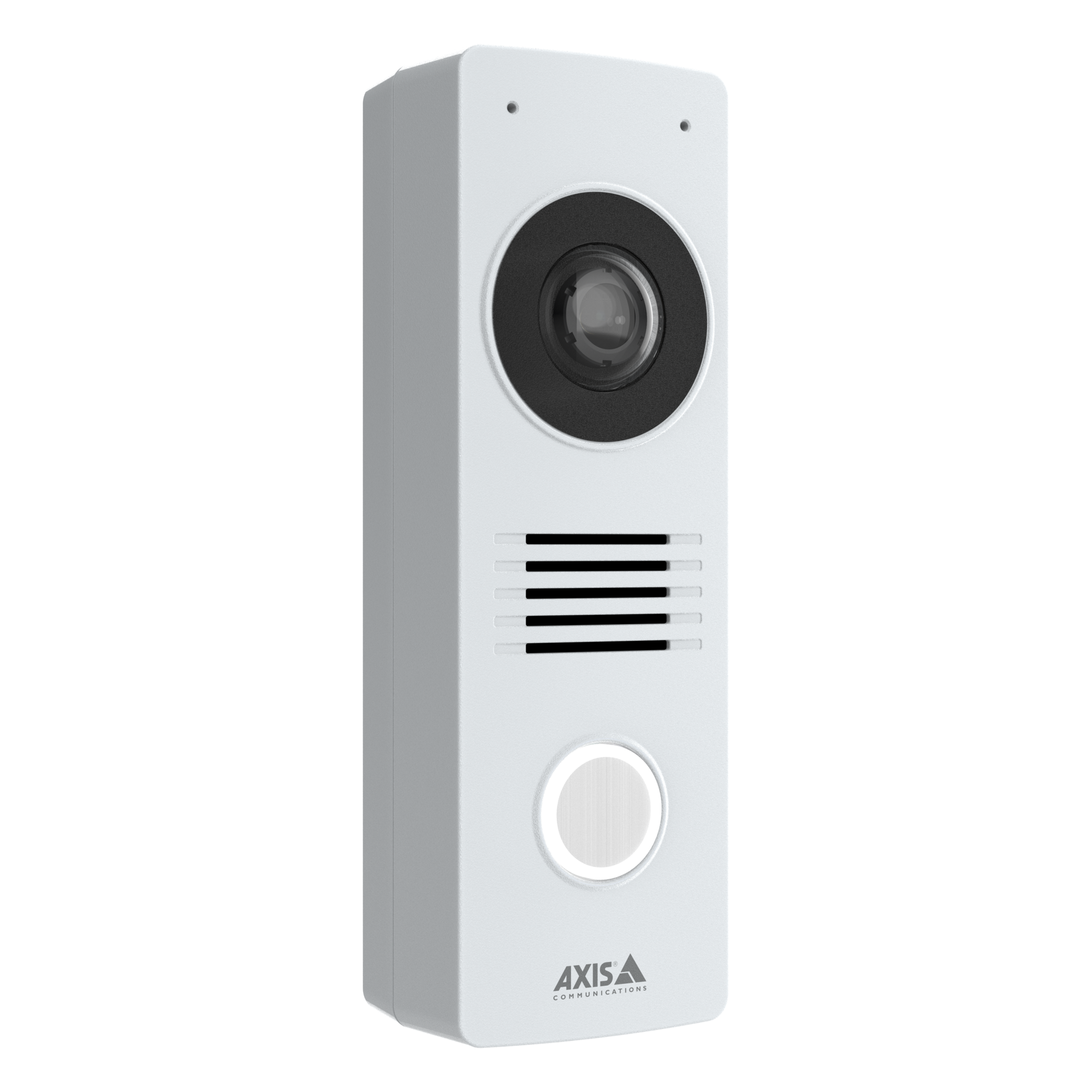

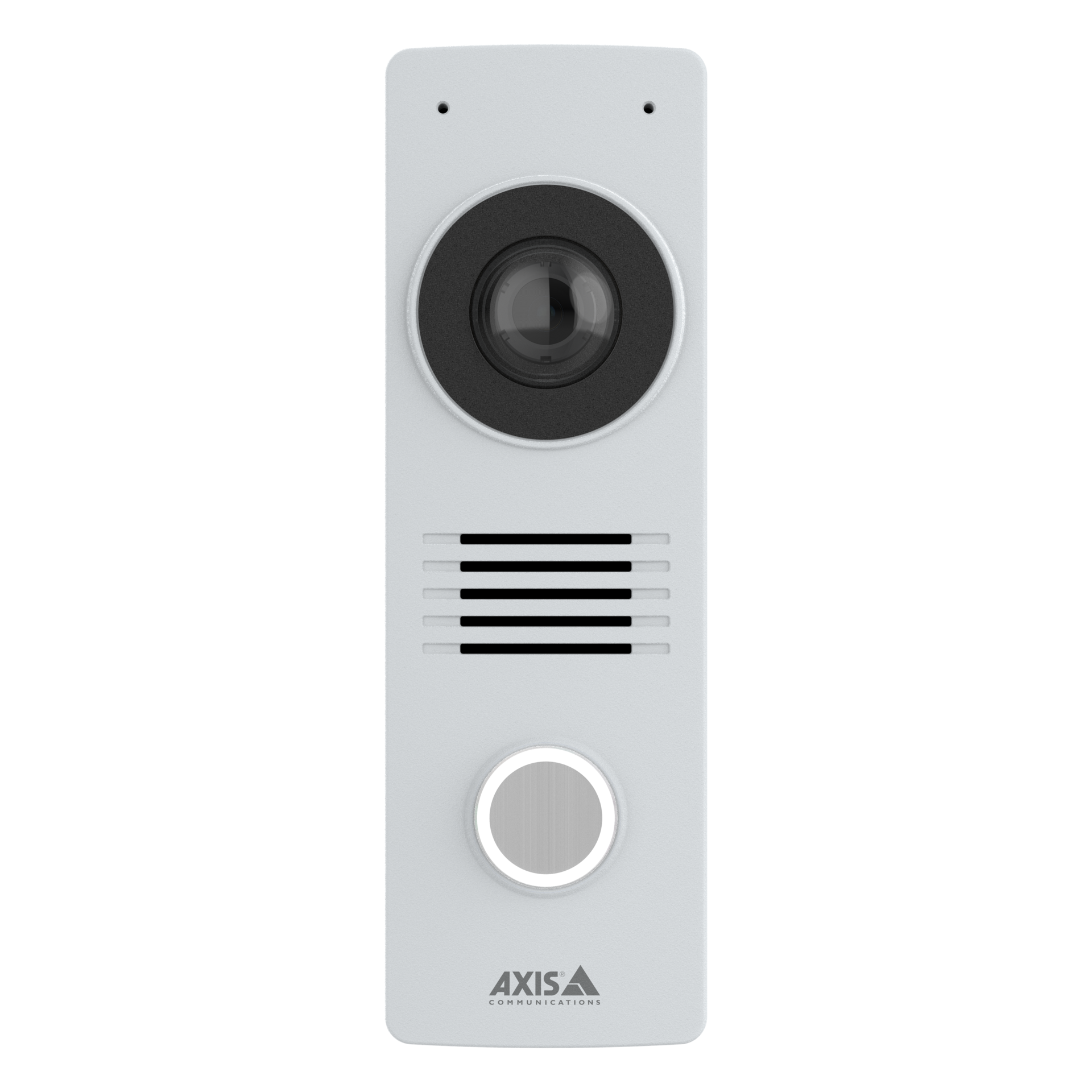

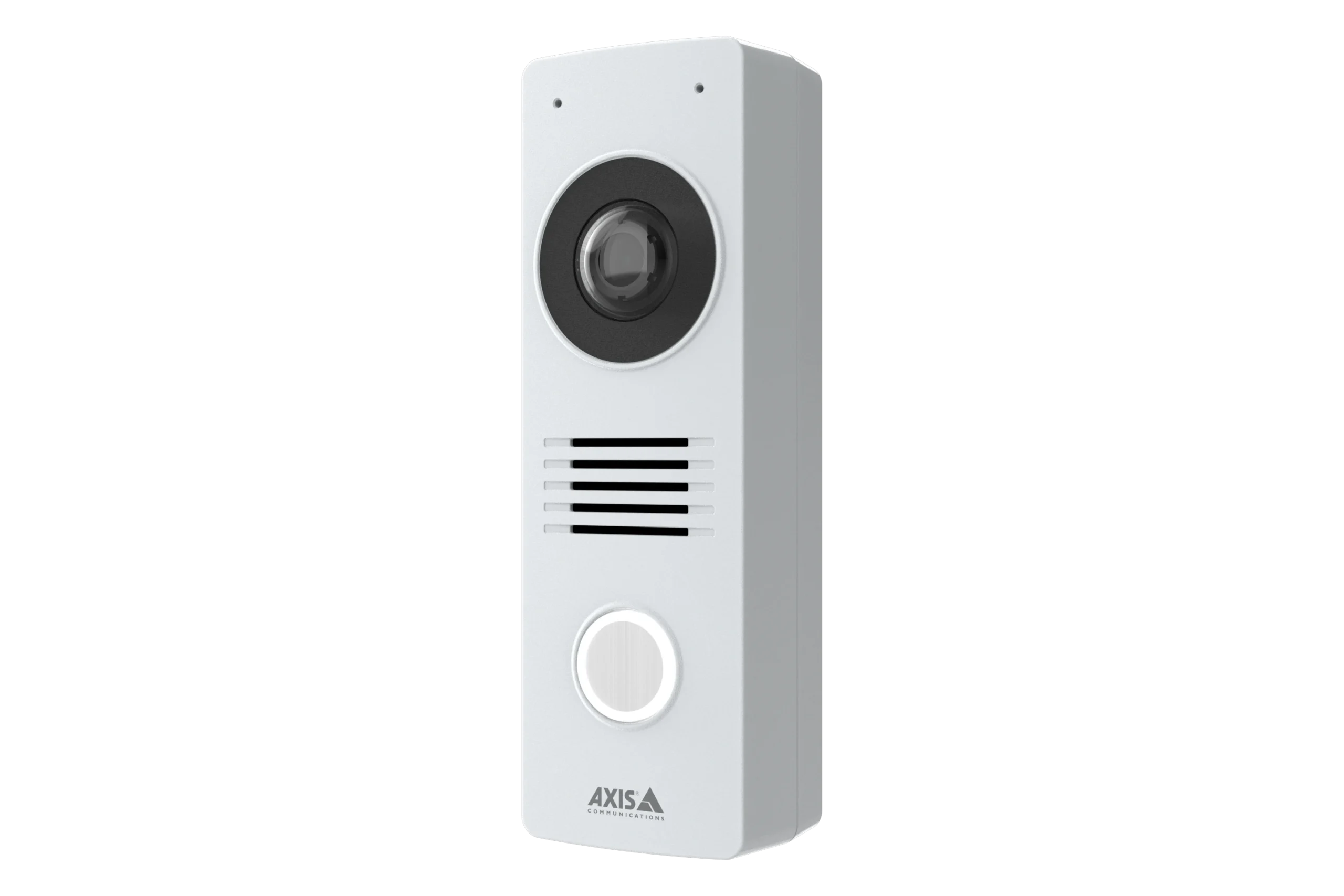

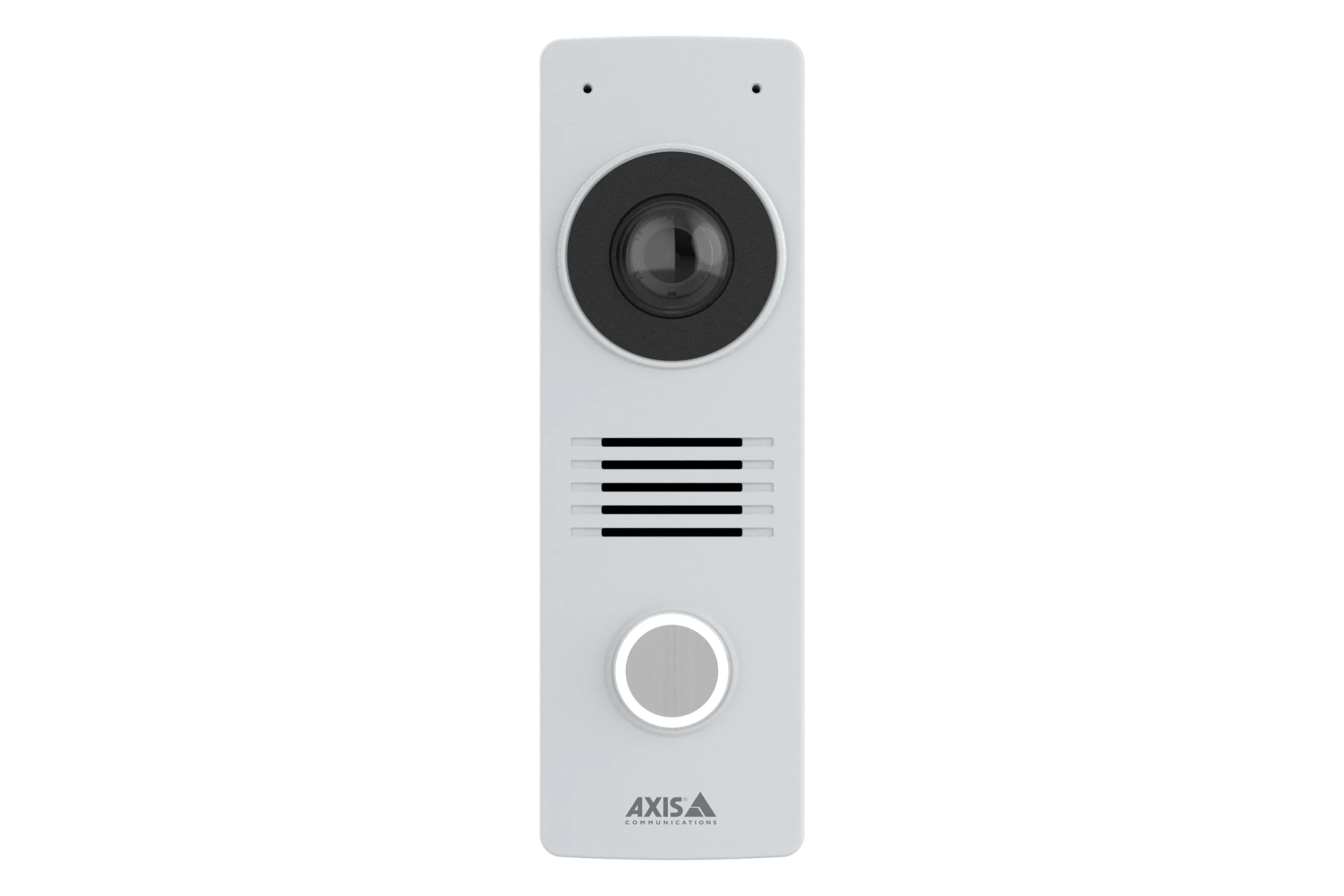

AXIS I8116-E: Compact IP Video Intercom for Secure Entry

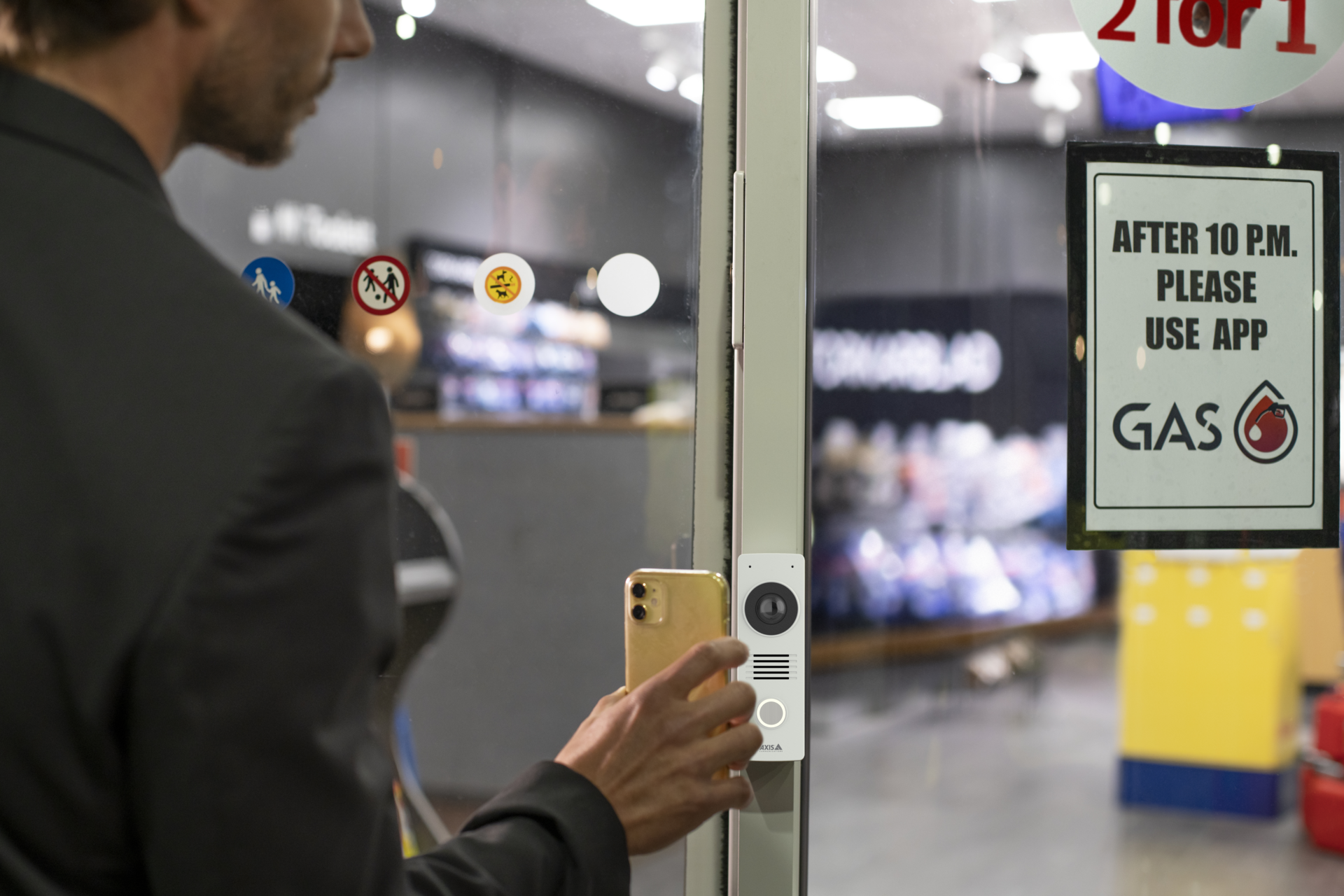

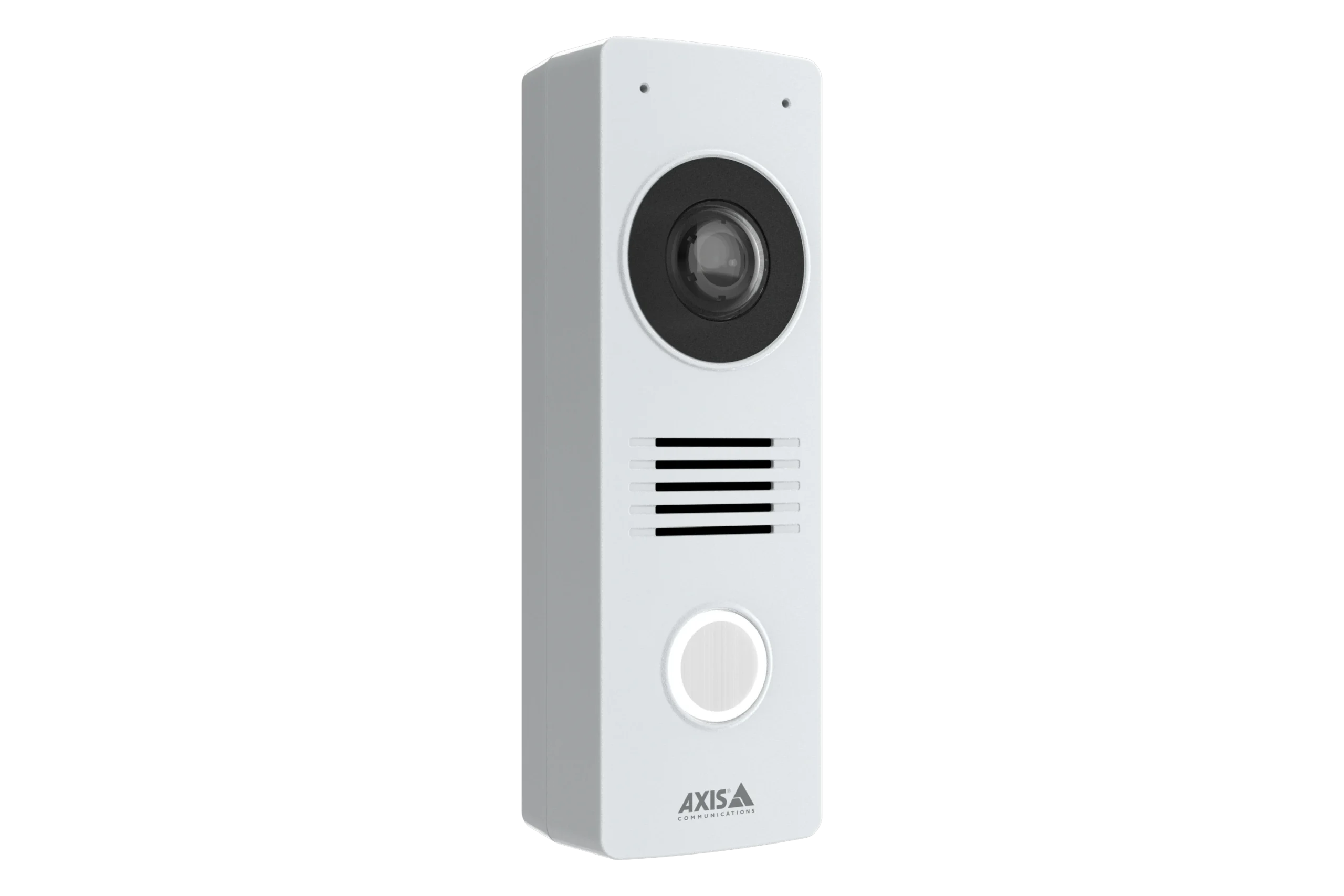

AXIS I8116-E is an outdoor-ready, mullion-mount network video intercom (available in white or black) designed to both manage visitors and record activity at the door—even where space is tight (the unit is only 48 mm wide). It combines a 5 MP camera (up to 2592 × 1944) with an ultra-wide field of view (about 162°), plus WDR and Lightfinder for clearer identification in challenging lighting (down to 0.15 lux in colour, and 0 lux with LED lit). For bandwidth and storage efficiency it supports H.264/H.265 and Axis Zipstream, while built-in full-duplex two-way audio with echo cancellation, noise reduction and beamforming helps conversations stay natural in noisy entry areas. On the access side, it supports remote entry control/lock integration, and can connect an OSDP reader via the I/O connector for tighter access control integration. For integration, it supports SIP and open standards like ONVIF, and it includes a DLPU with AXIS Object Analytics preinstalled (human/vehicle classification) plus ACAP support for additional apps. Security and resilience are built in with Axis Edge Vault (including secure boot and signed OS), edge storage to microSD/NAS, and robust environmental ratings (IP65 / NEMA 4X / IK08, -30°C to 60°C) with PoE for simple single-cable install.
