The AXIS M32 Dome Camera Series is a versatile range of fixed-dome cameras built for dependable everyday surveillance indoors or outdoors, with models including the AXIS M3215-LVE (2 MP, up to 1920×1080) and AXIS M3216-LVE (4 MP, up to 2688×1512). Designed to perform in tough conditions, these domes are IK10 vandal-resistant, IP66 outdoor-ready, and ship with a weathershield to help protect against rain, snow, and sun, while PoE and included mounting hardware simplify installation on ceilings, walls, or junction boxes. Image quality is strong in challenging scenes thanks to Lightfinder for low-light colour, Forensic WDR for high-contrast environments, and OptimizedIR for viewing in total darkness (up to 30 m / 98 ft or more depending on the scene). Built on ARTPEC-8 with a deep learning processing unit (DLPU), the M32 Series supports advanced on-edge analytics—such as AXIS Object Analytics—and can be expanded with tailored applications via ACAP (v4), while audio support and I/O allow broader integration (for example adding a microphone or triggering events). For efficient, secure deployments, the series supports H.264/H.265 with Axis Zipstream to reduce bandwidth and storage, plus built-in cybersecurity including Axis Edge Vault to help protect device identity and reduce unauthorised access.

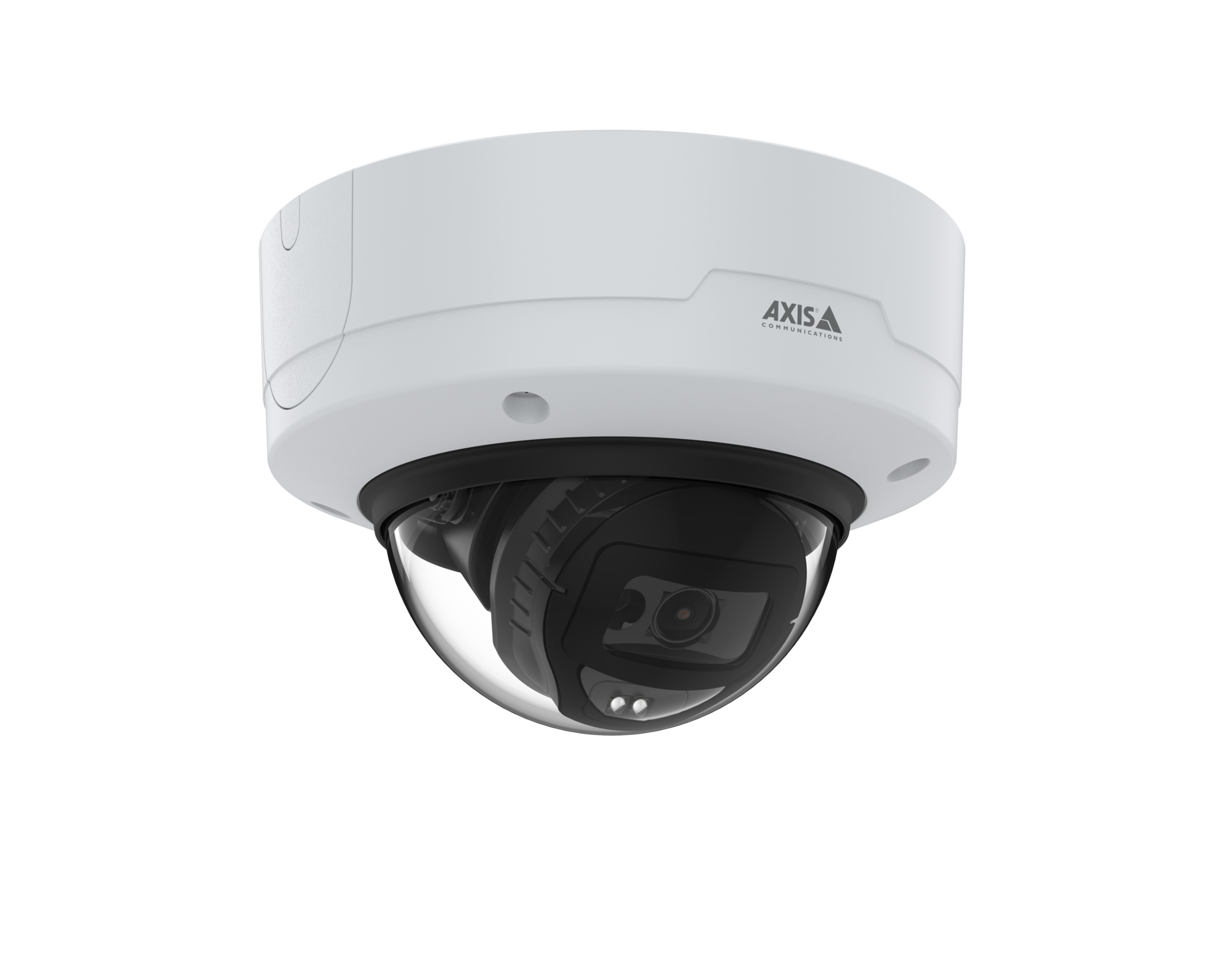

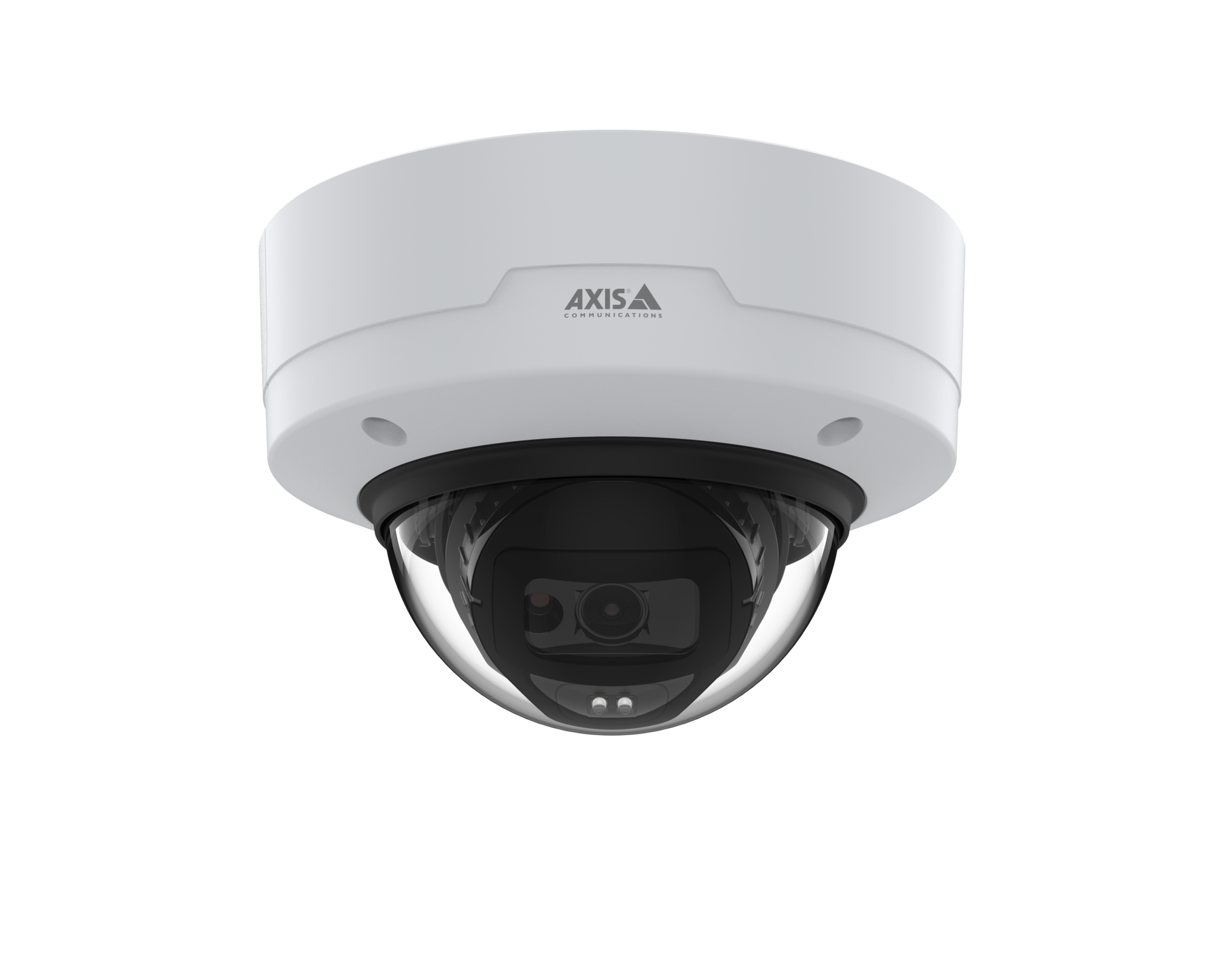

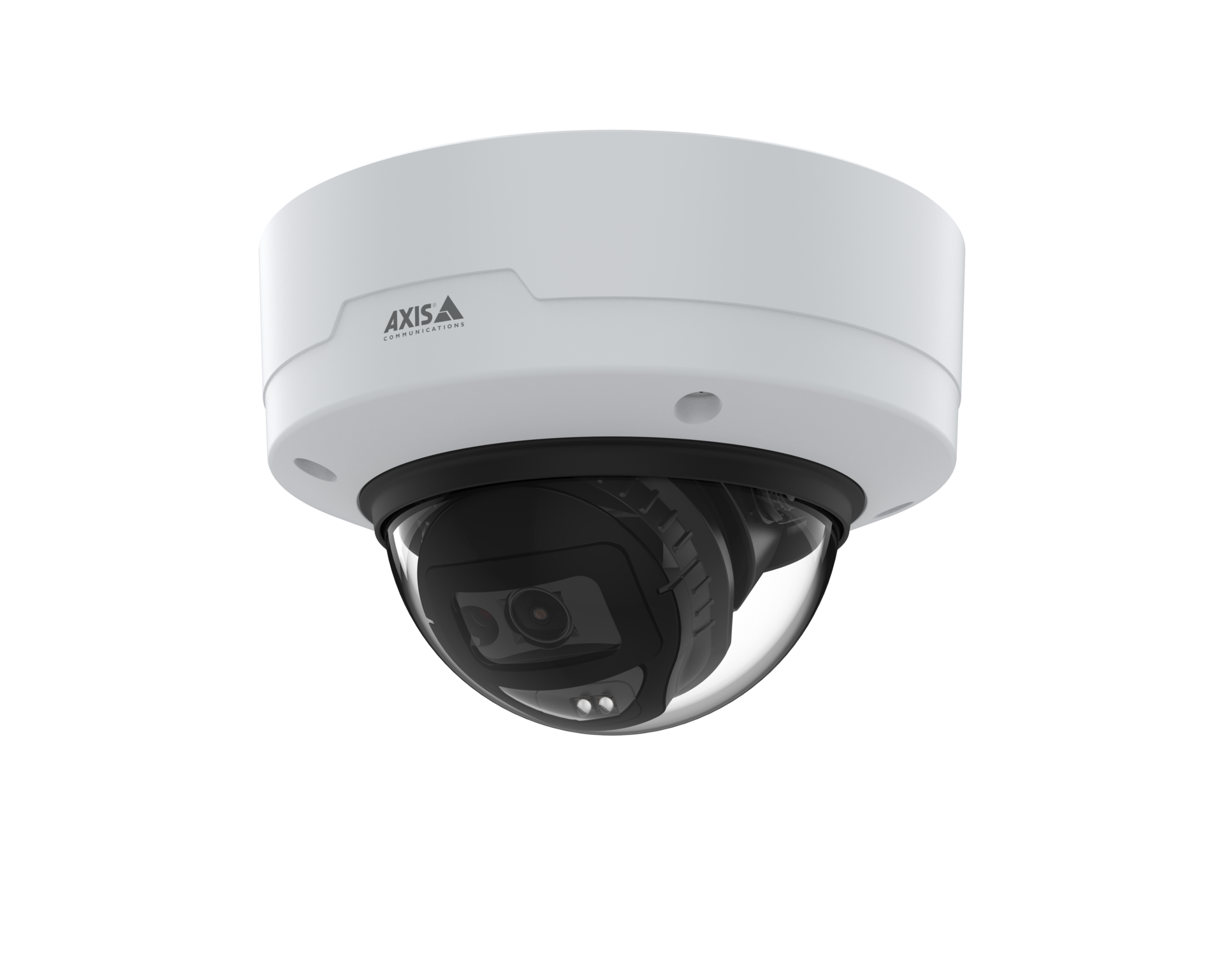

AXIS M32 Dome Camera Series
- Clear video, day or night: Up to 4 MP image quality with Lightfinder, Forensic WDR, and OptimizedIR to keep faces and details usable in low light, harsh backlight, and total darkness.
- Tough, discreet, and outdoor-ready: IK10-rated vandal resistance plus an integrated weathershield to handle rain, snow, and sun—ideal for entrances, retail, schools, and public-facing areas.
- Smarter and more secure on the edge: Support for advanced edge analytics (model-dependent) and built-in cybersecurity including Axis Edge Vault to help protect device identity and reduce unauthorised access—while efficient streaming helps control bandwidth and storage.
Key Features
Resolution
AXIS M3215-LVE (2 MP): 16:9 1920×1080 down to 160×90. AXIS M3216-LVE (4 MP): 16:9 2688×1512 down to 160×90; 4:3 2304×1728 down to 160×120. Image sensor: M3215-LVE 1/2.9” progressive scan RGB CMOS. M3216-LVE 1/2.7” progressive scan RGB CMOS. Lens / Field of view: M3215-LVE 3.1 mm, F2.0 (H: 101°, V: 55°). M3216-LVE 2.9 mm, F2.0 (H: 102°, V: 73°). Fixed iris, IR-corrected. Max frame rate: Up to 30/25 fps (60/50 Hz) in all resolutions.
IR Illumination
OptimizedIR: Power-efficient, long-life 850 nm IR LEDs (integrated). Range of reach: 30 m (98 ft) or more depending on the scene. Minimum illumination (with WDR + Lightfinder): M3215-LVE 0.14 lux (colour) / 0 lux (B/W) at 50 IRE, F2.0; 0 lux with IR on. M3216-LVE 0.16 lux (colour) / 0 lux (B/W) at 50 IRE, F2.0; 0 lux with IR on.
Dynamic Range
Forensic WDR: Up to 120 dB (depending on scene).
Artificial Intelligence
System-on-chip: ARTPEC-8 with Deep Learning Processing Unit (DLPU) for on-edge, deep learning analytics and richer metadata for faster forensic search. Memory: 1024 MB RAM, 8192 MB Flash (series).
Analytics
Included applications (series): AXIS Object Analytics, AXIS Scene Metadata, AXIS Image Health Analytics, AXIS Video Motion Detection, active tampering alarm, audio detection, AXIS Live Privacy Shield. AXIS Object Analytics: Object classes humans and vehicles (types: cars, buses, trucks, bikes). Scenarios: line crossing, object in area, crossline counting, occupancy in area, time in area (up to 10 scenarios). Includes trajectories, color-coded bounding boxes/tables, polygon include/exclude areas, perspective configuration, and ONVIF Motion Alarm event support. AXIS Image Health Analytics: Tampering (blocked/redirected image) + image degradation (blurred/underexposed), with sensitivity and validation period controls. AXIS Scene Metadata: Object classes humans, faces, vehicles (types: cars/buses/trucks/bikes) and license plates; attributes include vehicle colour, upper/lower clothing colour, confidence, and position. Extensibility: Supports AXIS Camera Application Platform (ACAP) for third-party applications.
Cybersecurity
Edge security (software): Signed OS, brute force delay protection, digest authentication, OAuth 2.0 (RFC6749) (Client Credential Flow and OpenID Authorization Code Flow for centralized ADFS account management), password protection, Axis Cryptographic Module (FIPS 140-2 Level 1). Edge security (hardware): Axis Edge Vault cybersecurity platform; secure element (CC EAL 6+), system-on-chip security (TEE), Axis device ID, secure keystore, signed video, secure boot, encrypted filesystem (AES-XTS-Plain64 256-bit). Network security: IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2), IEEE 802.1AE (MACsec) (PSK/EAP-TLS), IEEE 802.1AR, HTTPS/HSTS, TLS v1.2/v1.3, Network Time Security (NTS), X.509 Certificate PKI, host-based firewall.
Casing
Ratings: IP66, NEMA 4X, IK10 (series). Materials: Polycarbonate hard-coated dome; plastic casing + sunshield (PC/ASA). Colour: White NCS S 1002-B (series). Operating conditions: −40°C to +50°C (−40°F to 122°F). Start-up temperature: −30°C to +50°C (−22°F to 122°F). Humidity: 10–100% RH (condensing).
Warranty
5-year warranty (series).
AXIS M32 Dome Camera Series: Cost-Effective Domes with Smarter, Clearer Video
AXIS M32 Series Downloads
