AXIS M42 Dome Camera Series
- Flexible coverage, simple install: Varifocal domes with remote zoom and focus so you can fine tune the view without pulling the camera down
- Clear detail day and night: WDR for challenging light plus OptimizedIR on LV and LVE models for clean images in complete darkness
- Smarter alerts, lower running costs: On camera AI analytics for people and vehicle detection with Zipstream to reduce bandwidth and storage and Axis Edge Vault for strong cybersecurity
Key Features
Resolution
M4215-V: 2 MP 1920×1080 up to 25/30 fps • M4215-LV: 2 MP 1920×1080 up to 25/30 fps with OptimizedIR • M4216-V: 4 MP up to 2688×1512 up to 25/30 fps • M4216-LV: 4 MP up to 2688×1512 up to 25/30 fps with OptimizedIR • M4218-V: 8 MP 4K up to 3840×2160 up to 12.5/15 fps • M4218-LV: 8 MP 4K up to 3840×2160 up to 12.5/15 fps with OptimizedIR • M4225-LVE: 2 MP 1920×1080 up to 25/30 fps • M4227-LVE: up to 5 MP 4:3 2592×1944 and 16:9 2688×1512 up to 25/30 fps • M4228-LVE: 8 MP 4K up to 3840×2160 up to 25/30 fps
IR illumination
LV and LVE models OptimizedIR with power efficient long life IR LEDs • Range of reach 20 m or more depending on the scene
Dynamic range
M4215-V, M4215-LV, M4216-V, M4216-LV, M4218-V, M4218-LV: WDR up to 110 dB depending on scene • M4225-LVE, M4227-LVE, M4228-LVE: Forensic WDR up to 120 dB depending on scene
Artificial Intelligence
Deep learning processing unit DLPU on the camera enabling advanced analytics on the edge including object classification for humans and vehicles with support for multiple scenarios such as line crossing and object in area
Analytics
AXIS Object Analytics preinstalled on all models • AXIS Scene Metadata • AXIS Video Motion Detection • AXIS Live Privacy Shield • AXIS M4225-LVE, M4227-LVE, M4228-LVE: also include AXIS Audio Analytics and AXIS Image Health Analytics
Cybersecurity
Axis Edge Vault hardware based cybersecurity platform • Axis device ID • signed OS • secure boot • signed video • secure keystore • encrypted filesystem and secure network features such as IEEE 802 1X and TLS
Casing
M4215-V, M4215-LV, M4216-V, M4216-LV, M4218-V, M4218-LV: IP42, IK08 polycarbonate and aluminum casing with hard coated dome • M4225-LVE, M4227-LVE, M4228-LVE: IP66, NEMA 4X, IK10 plastic casing with polycarbonate hard coated dome and weathershield
Warranty
5 year warranty
Flexible Varifocal AI Domes for Indoor and Outdoor Security

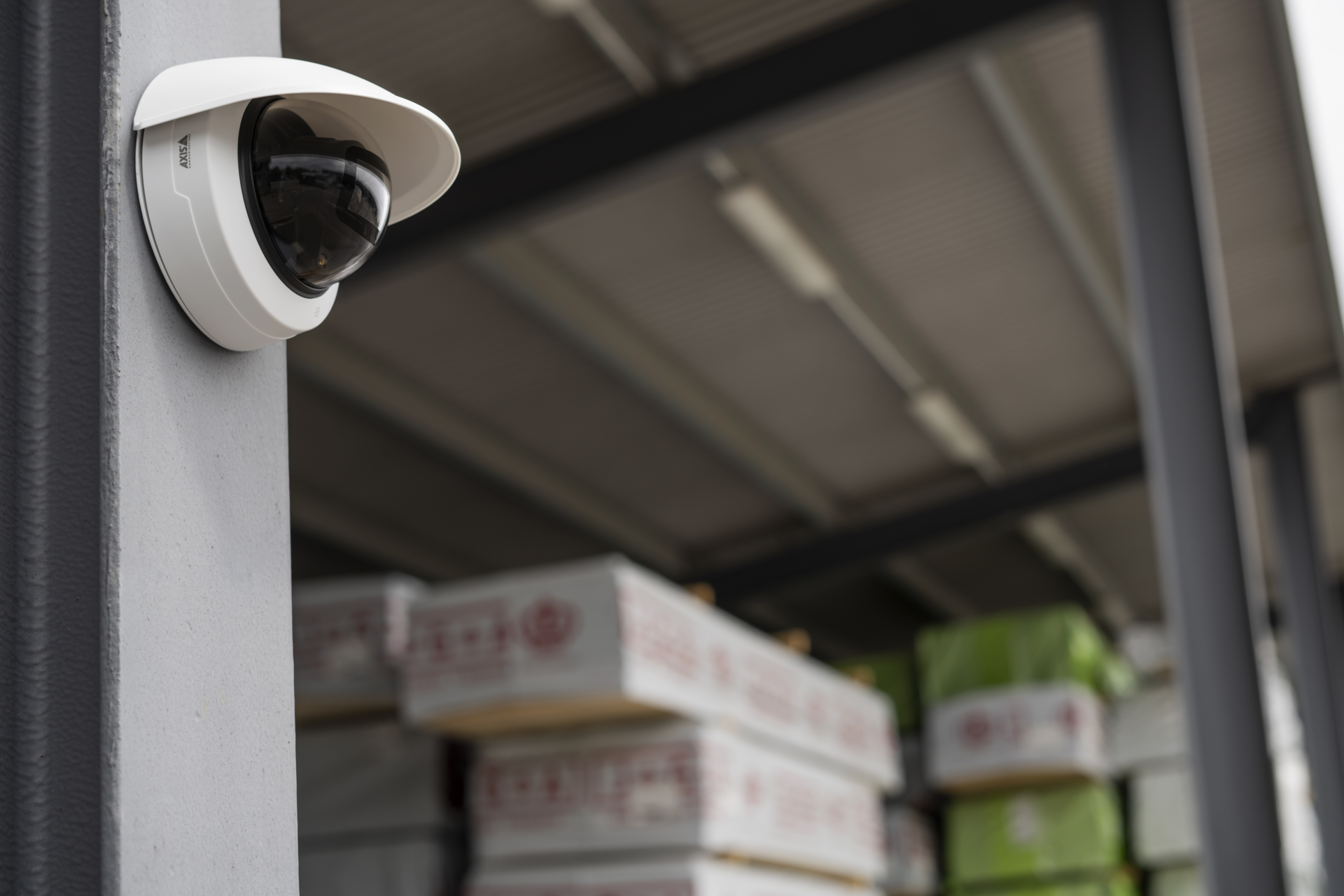

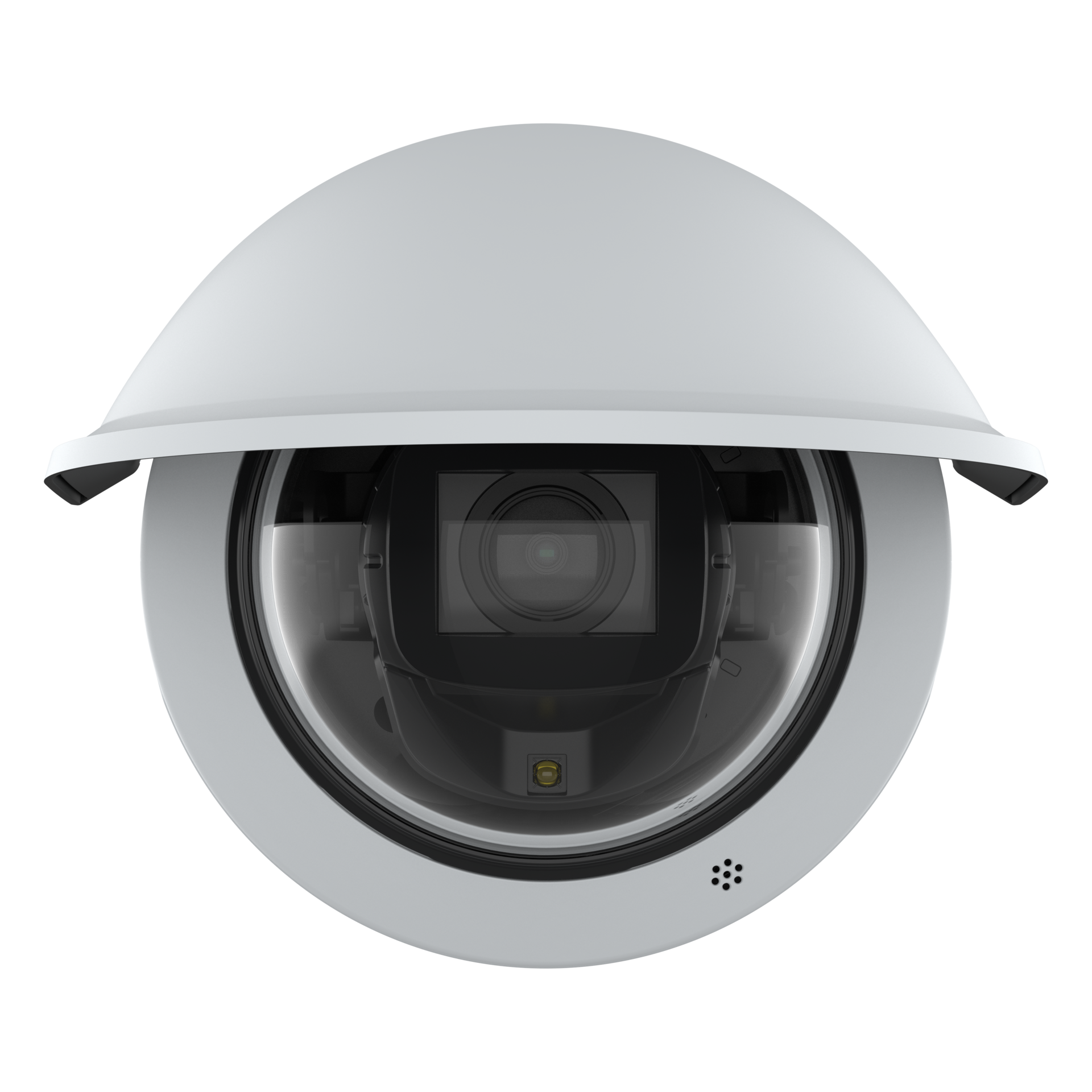

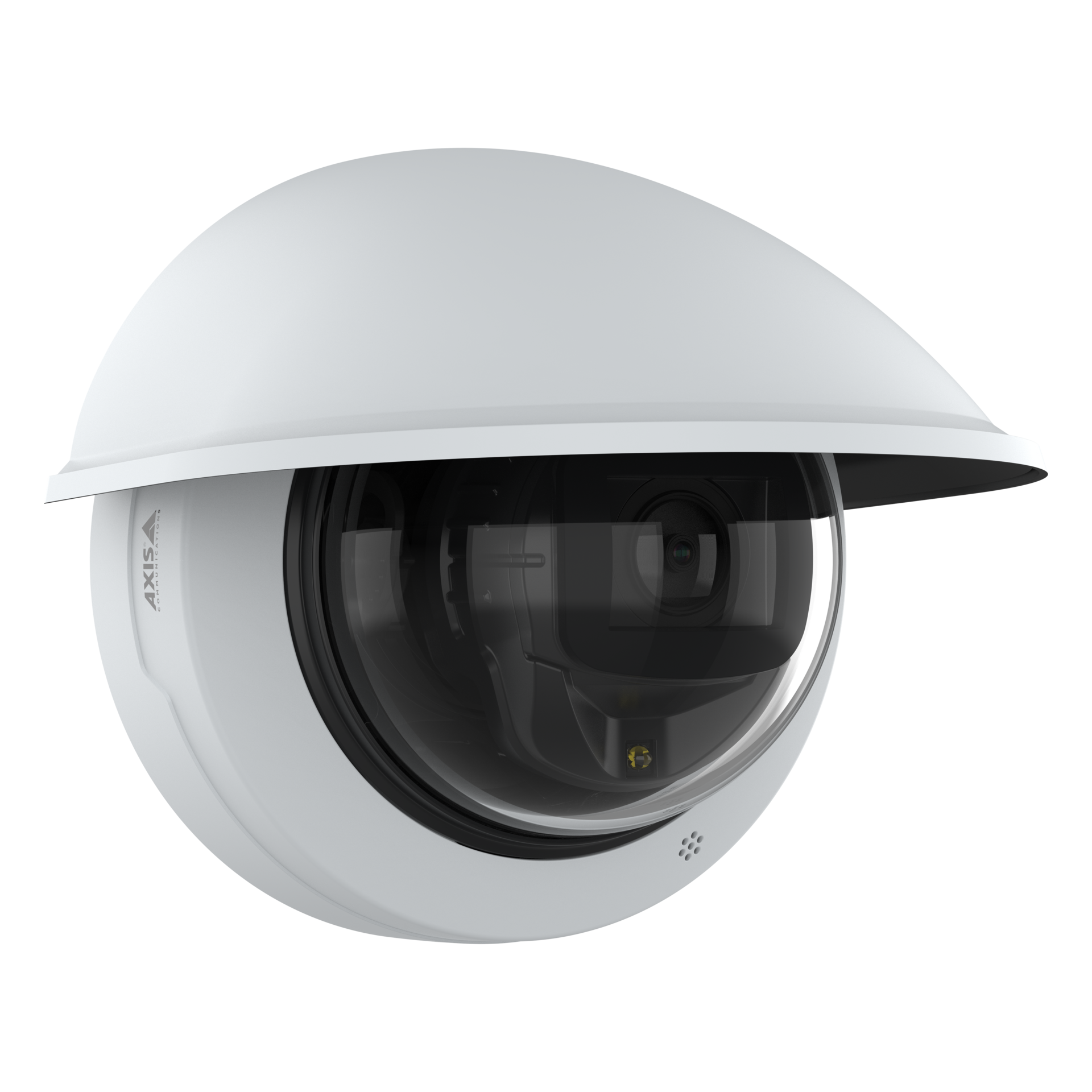

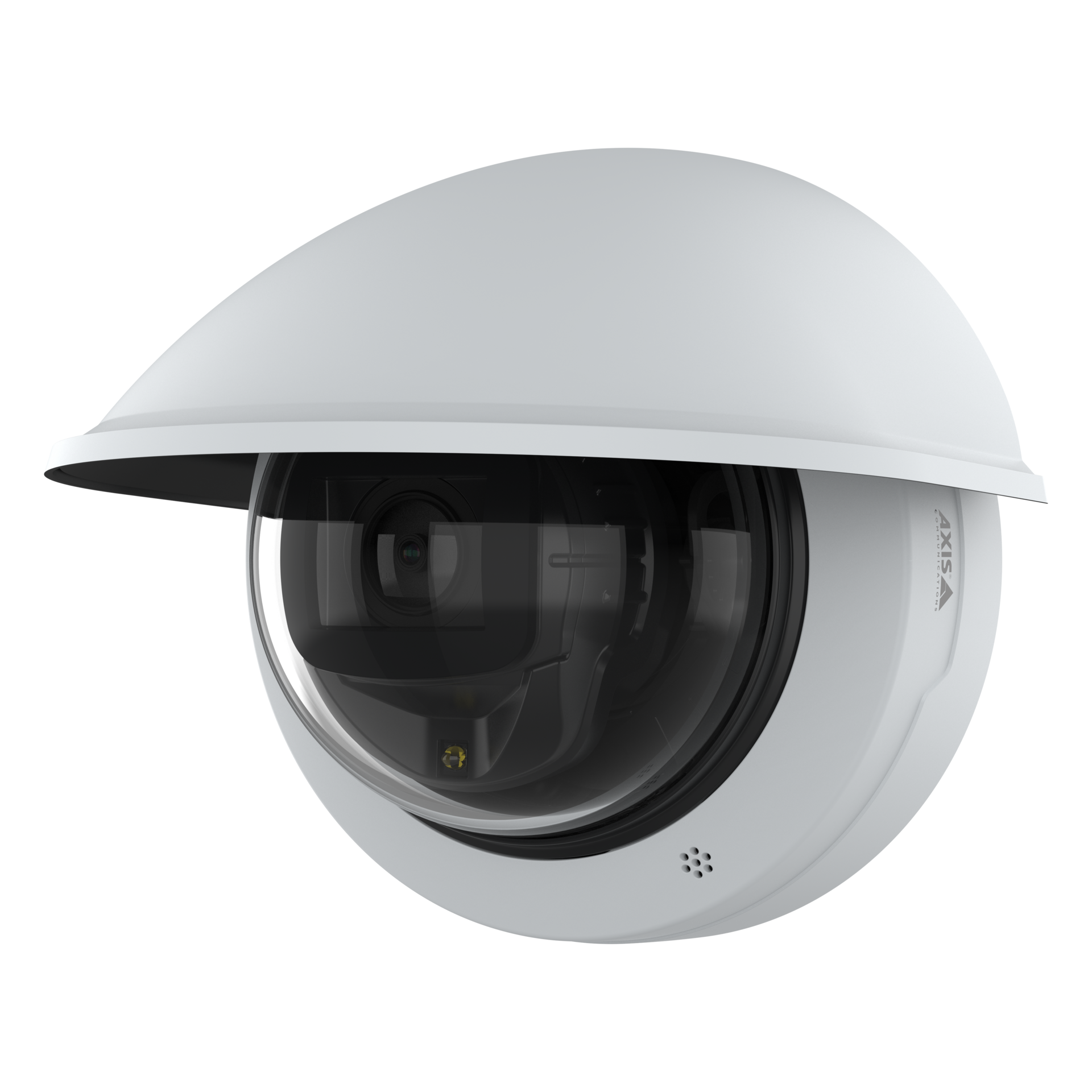

The AXIS M42 Dome Camera Series is Axis’ affordable range of AI-powered, varifocal dome cameras built to give you flexible coverage, strong low-light performance, and smarter detection without adding complexity. The lineup includes AXIS M4215-V (2 MP), AXIS M4216-V (4 MP) and AXIS M4218-V (8 MP / 4K) for indoor applications, plus AXIS M4215-LV, AXIS M4216-LV and AXIS M4218-LV variants that add OptimizedIR for clear video in complete darkness, and the rugged outdoor compact models AXIS M4225-LVE (2 MP), AXIS M4227-LVE (5 MP) and AXIS M4228-LVE (8 MP) with higher vandal resistance and audio analytics. Across the series you get a varifocal lens with remote zoom and focus so installers can fine-tune the view from the ground, WDR to keep detail in bright backlight and shadows, and Lightfinder or Lightfinder 2.0 (model dependent) to improve colour and clarity in low light. A built-in deep learning processing unit DLPU powers on-camera analytics, with AXIS Object Analytics preinstalled to detect and classify people and vehicles, plus scene metadata to speed up forensic search, while Zipstream and modern compression help reduce bandwidth and storage. For peace of mind, the range also includes Axis Edge Vault hardware-based cybersecurity protections, making the M42 series a strong fit for offices, retail, education, light industrial sites, and any project that needs dependable coverage, fast install, and smarter alarms at a practical budget.
AXIS M42 Series Datasheets
