AXIS M43 Panoramic Camera Series
- See more with fewer cameras: 180° or 360° panoramic coverage with dewarped views for full room and corridor coverage from a single discreet unit
- Clear detail in tough lighting: Forensic WDR and strong low light performance to keep faces and activity visible in backlight shadows and night scenes
- Smarter monitoring with lower overheads: On camera analytics for faster incident search and proactive alerts plus efficient compression to reduce bandwidth and storage with robust Axis cybersecurity built in
Key Features
Resolution
Models in series include: M4308-PLE • M4317-PLVE • M4318-PLVE • M4317-PLR • M4318-PLR • M4327-P • M4328-P • 6 MP models M4317-PLVE M4317-PLR M4327-P 360° overview only up to max resolution No WDR up to 50/60 fps at 50/60 Hz With Forensic WDR up to 25/30 fps at 50/60 Hz • 12 MP models M4318-PLVE M4318-PLR M4328-P 360° overview only up to max resolution No WDR up to 25/30 fps at 50/60 Hz With Forensic WDR up to 25/20 fps at 50/60 Hz • M4308-PLE 12 MP 360° overview only No WDR up to 25/30 fps at 50/60 Hz With Forensic WDR up to 12.5/15 fps at 50/60 Hz
IR Illumination
PLVE PLR and PLE models OptimizedIR power efficient long life 850 nm IR LEDs individually controllable LEDs for reflection free coverage • Typical IR range M4317-PLVE and M4317-PLR up to 20 m • M4318-PLVE M4318-PLR and M4308-PLE up to 15 m • Indoor models M4327-P and M4328-P no built in IR
Dynamic Range
Forensic WDR up to 120 dB depending on scene
Artificial Intelligence
Deep learning processing unit DLPU enables edge based analytics and object classification
Analytics
Object Analytics • Scene Metadata • Video Motion Detection • Live Privacy Shield
Cybersecurity
Axis device ID • Signed OS • Secure Boot • Signed Video • Secure Keystore
Casing
Aluminium casing • Outdoor models IP66 IP67 NEMA 4X IK10 rated casing • Aluminium and plastic casing
Warranty
5 year warranty
180° and 360° Coverage with Smart Dewarped Views and Analytics

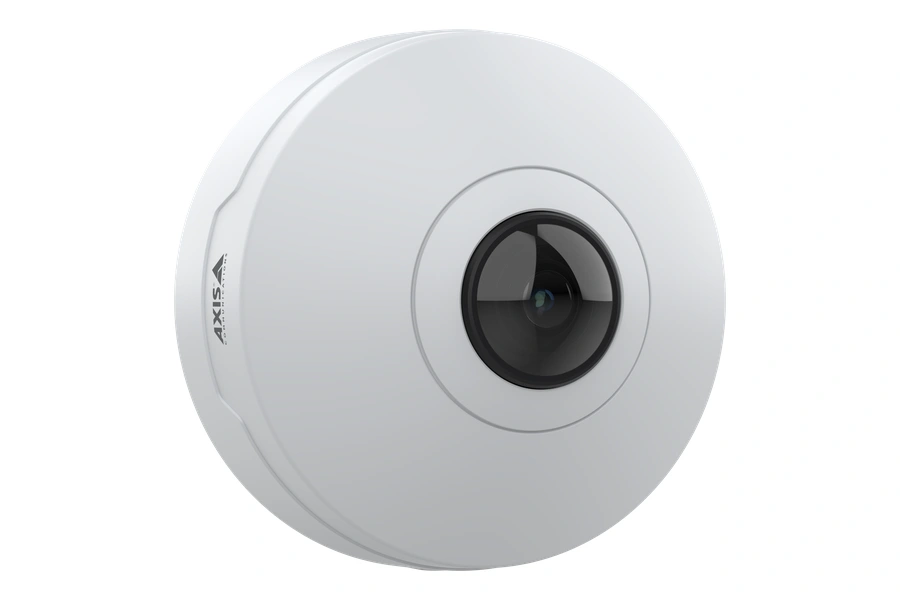

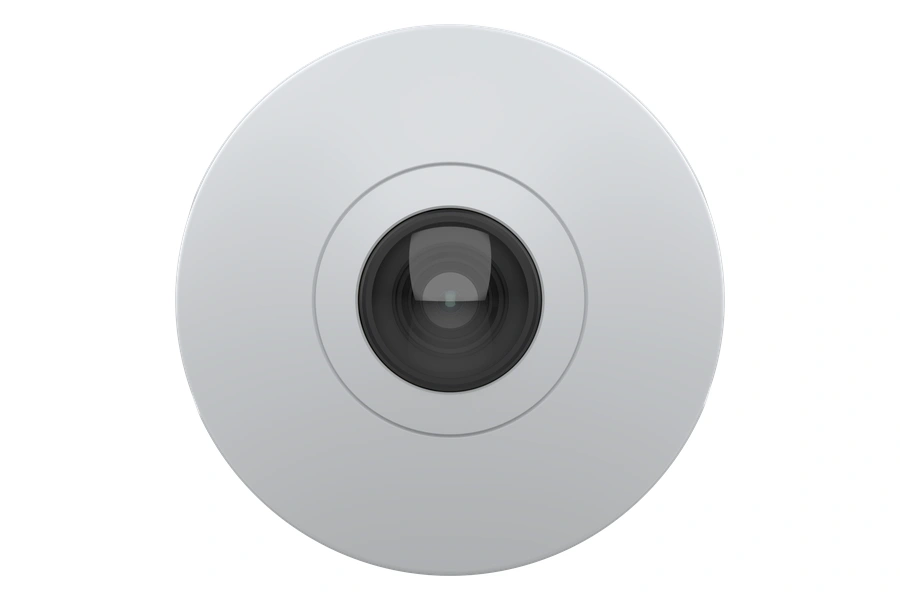

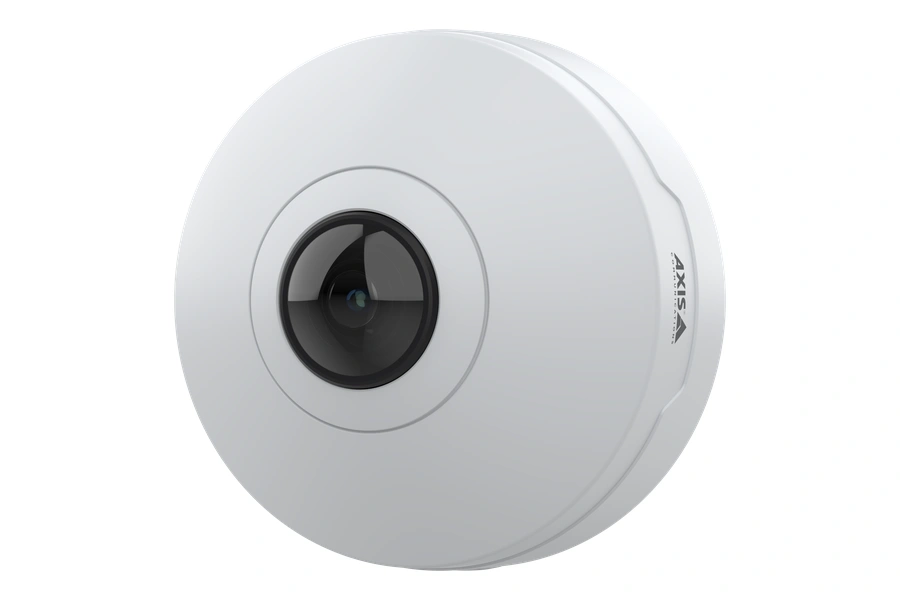

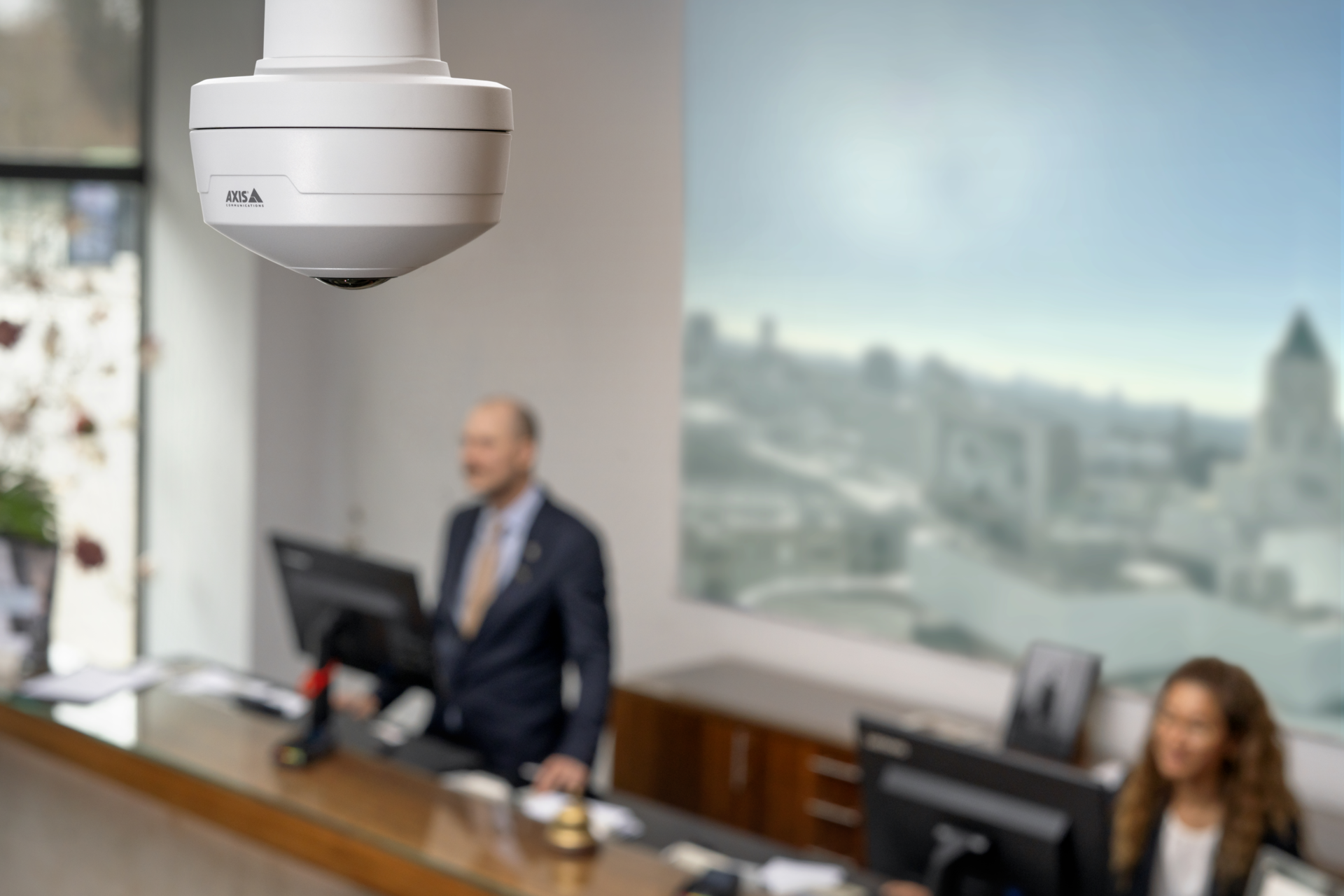

The AXIS M43 Panoramic Camera Series is a compact range of single-sensor fisheye cameras designed to deliver a complete 180° or 360° overview from one discreet mini dome, making it ideal for entrances, retail floors, classrooms, open-plan offices, and transport environments where you want to reduce camera count without creating blind spots. The lineup spans indoor models such as AXIS M4327-P and AXIS M4328-P, outdoor-ready domes including AXIS M4317-PLVE and AXIS M4318-PLVE, an outdoor model with audio capture AXIS M4308-PLE, and rugged onboard variants AXIS M4317-PLR and AXIS M4318-PLR for vehicles like buses. Across the range you get high-detail imaging up to 12 MP, a stereographic lens with Sharpdome 360 for better edge sharpness, and flexible dewarped views with digital PTZ so operators can pull multiple “virtual cameras” (panorama, quad, corridor, corner) from a single stream. Built-in Lightfinder, Forensic WDR, and day night functionality help maintain detail in low light and challenging backlight, with built-in IR using individually controllable LEDs on selected models for clear, reflection-free footage in complete darkness. A built-in deep learning processing unit (DLPU) enables on-camera analytics such as AXIS Object Analytics and rich scene metadata to speed up forensic search, while Axis Edge Vault strengthens device cybersecurity and helps protect the camera identity across the system, giving customers a panoramic platform that is simple to install, easy to operate, and powerful for both live monitoring and investigations.
AXIS M43 Series Datasheets
