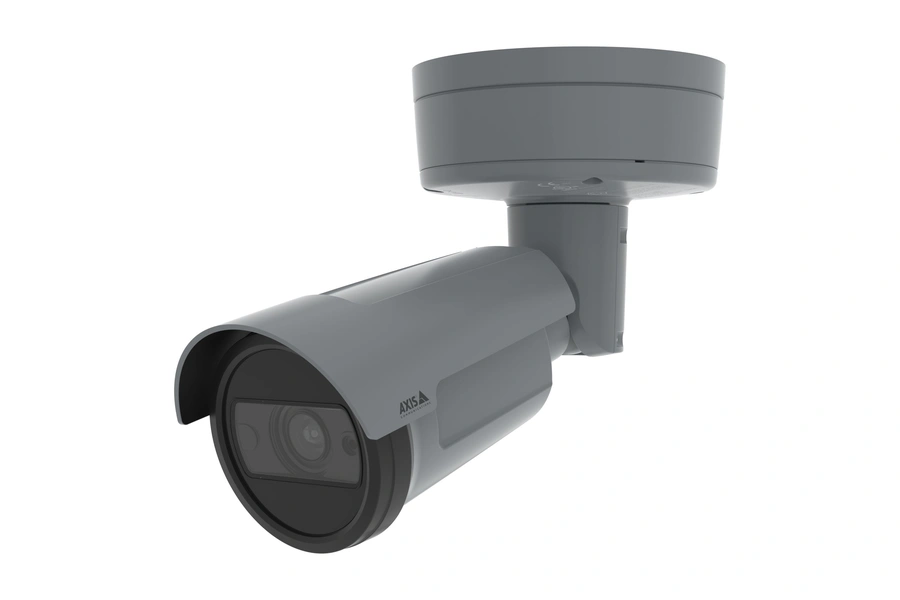

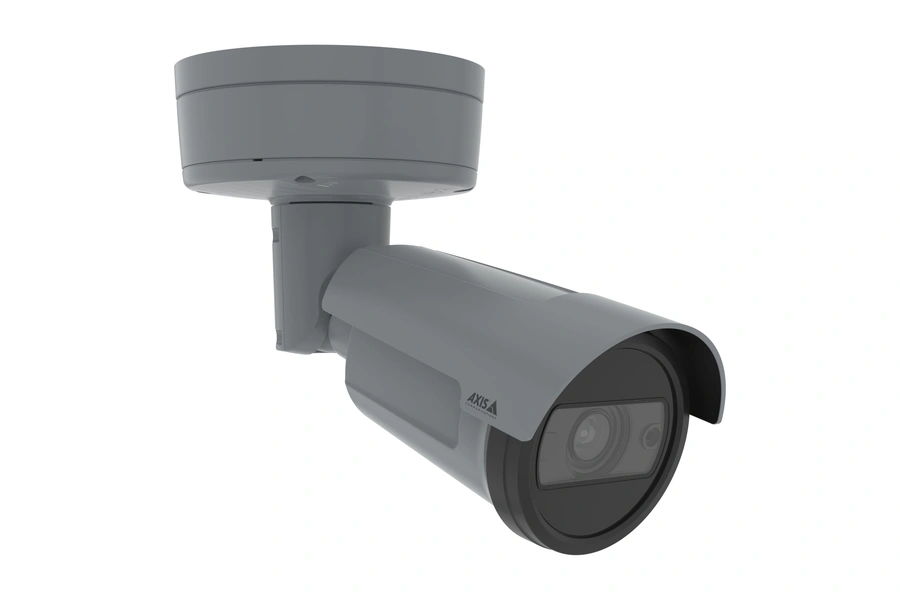

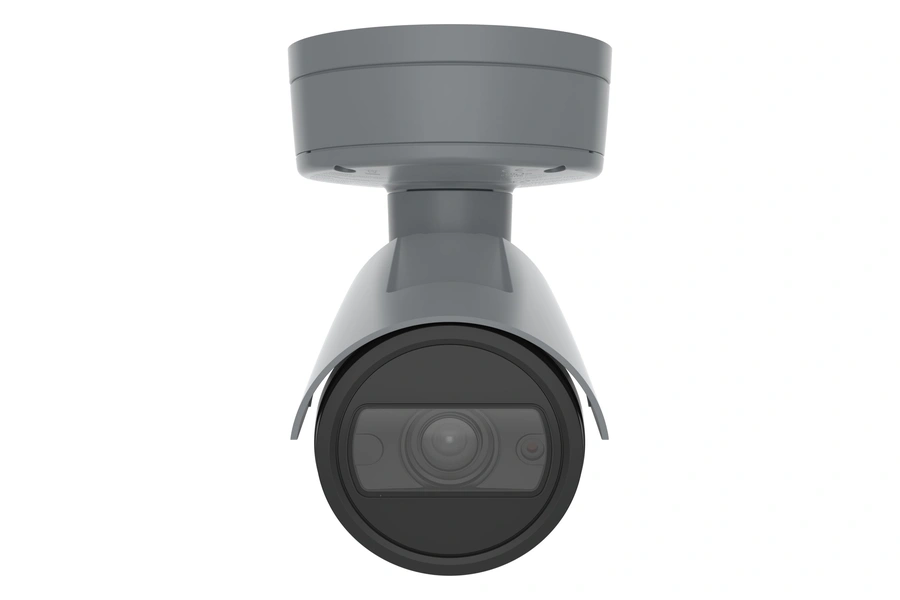

AXIS P1468-XLE Explosion-Protected Bullet Camera

AXIS P1468-XLE explosion-protected 4K bullet camera for hazardous areas, with OptimizedIR, Lightfinder 2.0 & Edge Vault.

Hazardous-area certified Designed for Zone 2/22 and Class I/II/III Division 2 environments (ATEX/IECEx/cULus).
4K detail, day or night 4K up to 60 fps, with 1/1.2″ sensor, Lightfinder 2.0 and Forensic WDR.
IR + smart, secure surveillance OptimizedIR up to 40 m, edge analytics (incl. smoke alert), rugged IP66/67, NEMA 4X, IK10, plus Axis Edge Vault cybersecurity.

explosion

Explosion-Protected

4K Ultra HD

night_sight_max

Night Vision IR

shield_lock

Built-In Cybersecurity

Key Features

Resolution

AXIS P1468-XLE 8 MP / 4K • Max 3840×2160 (down to 160×90) • Max frame rate 50/60 fps (50/60 Hz) with WDR off • With Forensic WDR active: up to 25/30 fps (50/60 Hz) • Supports multi-view streaming with up to 8 individually cropped view areas

IR Illumination

OptimizedIR with power-efficient, long-life 850 nm IR LEDs • IR reach up to 40 m (131 ft) (can be more depending on the scene) • 0 lux capability with IR on

Dynamic Range

Forensic WDR up to 120 dB (scene-dependent) for clearer detail in mixed lighting (bright highlights + deep shadows)

Artificial Intelligence

Built on ARTPEC-8 with an integrated Deep Learning Processing Unit (DLPU) to enable on-device (edge) deep learning analytics and metadata—reducing reliance on server-side processing

Analytics

Included: AXIS Object Analytics, AXIS Scene Metadata, AXIS Video Motion Detection, active tampering, shock detection, audio detection, orientation aid, and smoke alert (smoke/fire indicators, including early-stage detection) • Supported: AXIS Perimeter Defender, AXIS License Plate Verifier, AXIS Digital Autotracking • Supports ACAP (Axis Camera Application Platform) for third-party apps

Cybersecurity

Axis Edge Vault hardware-based cybersecurity platform • Secure element (CC EAL 6+) + SoC security (TEE) • Secure boot, Signed OS, signed video, secure keystore, encrypted filesystem (AES-XTS-Plain64 256-bit) • Edge security features include brute-force delay protection, digest authentication, OAuth 2.0 / OpenID flows, Axis Cryptographic Module (FIPS 140-2 level 1), and AES-XTS-Plain64 256-bit SD card encryption • Network security includes IEEE 802.1X, MACsec (802.1AE), 802.1AR, HTTPS/HSTS, TLS v1.2/v1.3, NTS, X.509 PKI, and a host-based firewall

Casing

Hazardous-site ready, outdoor build: IP66/IP67, NEMA 4X, IK10 • Materials: polycarbonate blend + aluminium • Operating conditions: -40°C to 60°C, 10–100% RH (condensing) • Designed to withstand winds up to 50 m/s

Warranty

5-year warranty

AXIS P1468-XLE: Explosion-Protected 4K Monitoring for Hazardous Areas

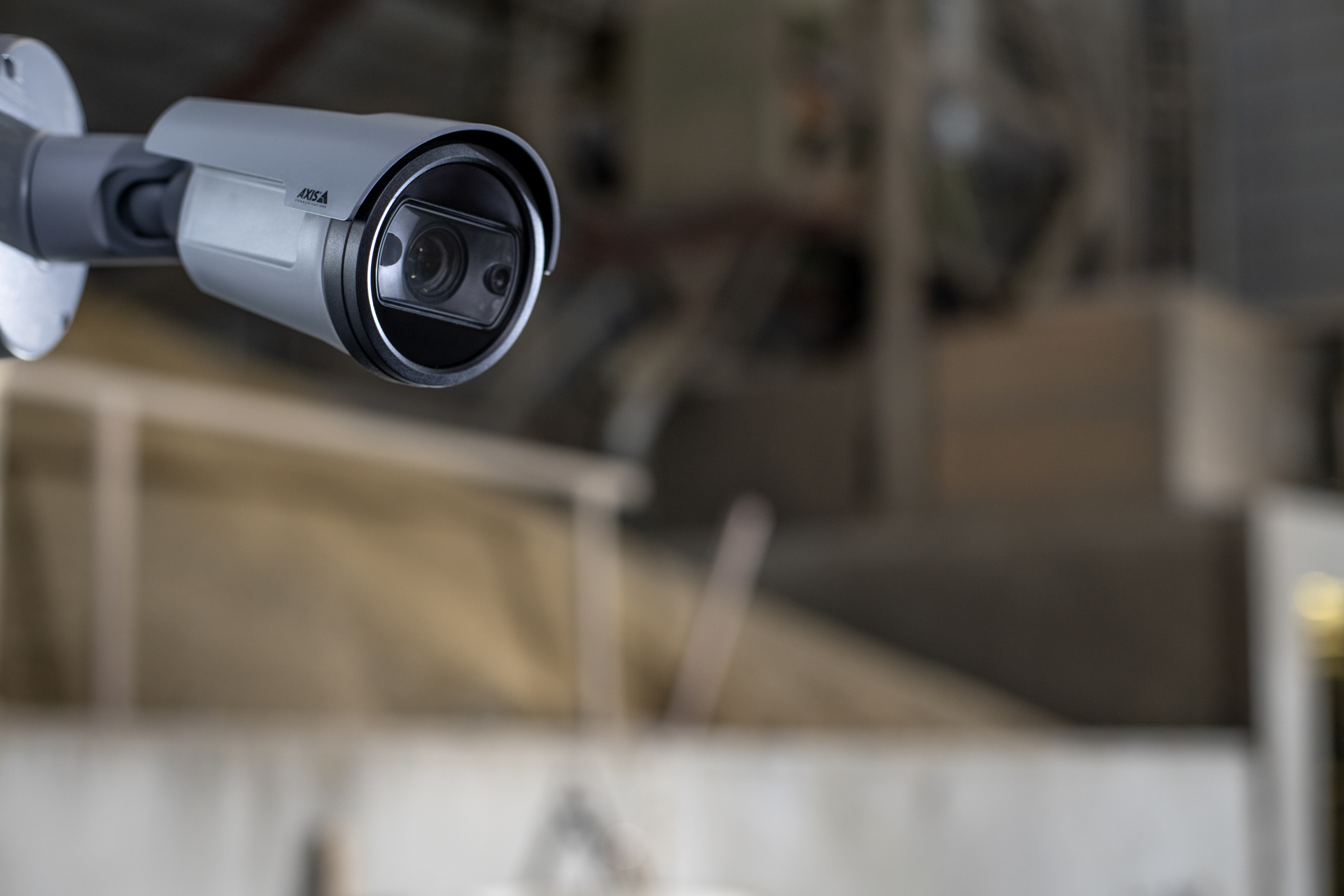

The AXIS P1468-XLE is an explosion-protected bullet camera engineered for hazardous locations, certified for Zone 2/22 and Class I/II/III Division 2 applications (ATEX/IECEx/cULus), making it ideal for industrial sites where compliance and reliable evidence capture are critical. It delivers 4K (3840×2160) video with up to 50/60 fps capture (and up to 25/30 fps when Forensic WDR is active), using a large 1/1.2″ RGB CMOS sensor to improve performance in challenging light. Image quality is strengthened by Lightfinder 2.0 and Forensic WDR (up to 120 dB, scene-dependent) for clearer detail across bright highlights and dark shadows, while night coverage is supported by OptimizedIR (850 nm) with illumination up to 40 m depending on the scene. Built on ARTPEC-8 with a DLPU, it enables edge-based analytics such as AXIS Object Analytics and smoke alert, helping you detect events sooner and reduce reliance on back-end servers. For demanding outdoor deployments, it’s rated IP66/67, NEMA 4X, and IK10, specified for winds up to 50 m/s, and includes device hardening features like Secure boot and Signed OS, backed by a 5-year warranty.
