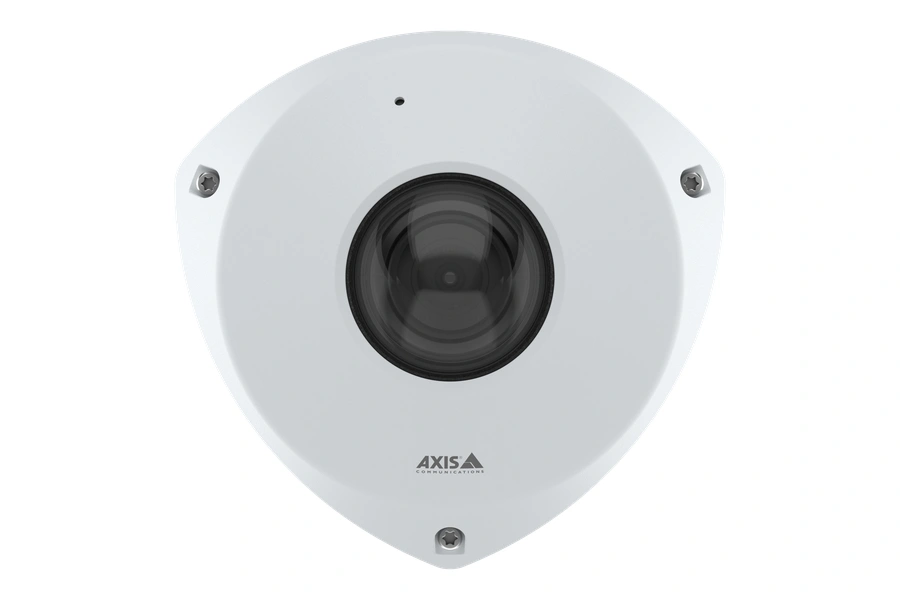

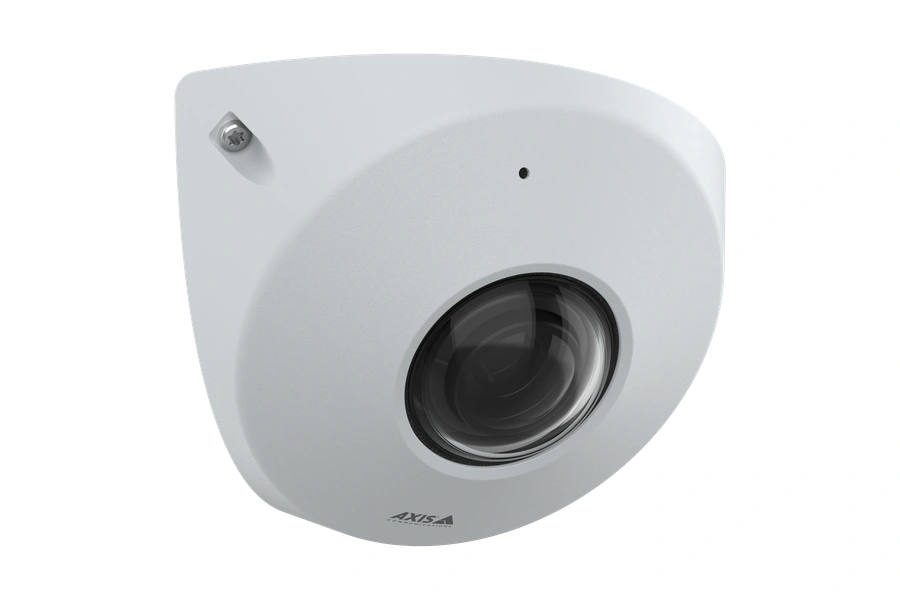

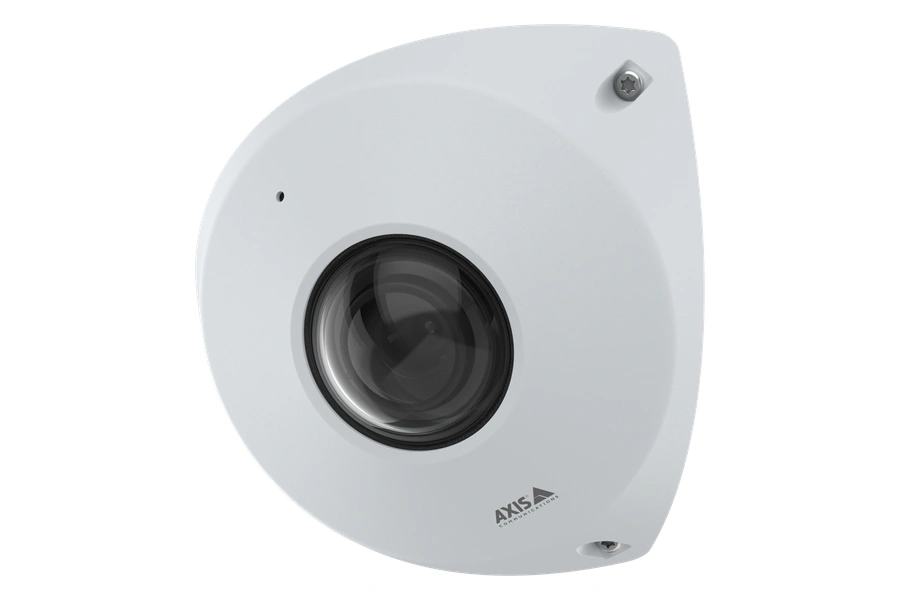

The AXIS P91 Dome Camera Series is Axis’ corner-mounted camera range designed to deliver full corner-to-corner coverage with no blind spots in spaces where safety, durability, and tamper resistance matter most, such as elevators, stairwells, corridors, and secure indoor areas. The series currently centres on the AXIS P9117-PV, an indoor, ligature-resistant corner camera that provides a 360° panoramic view using a stereographic lens and delivers up to 6 MP detail, with Lightfinder 2.0 for stronger low-light colour and Forensic WDR to hold detail in mixed lighting like bright entrances and shadowed corners. Built to handle harsh environments, it’s IK10 vandal-resistant with IP66-rated dust protection, and the design is easy to clean and maintain thanks to a durable front cover intended for thorough cleaning. On the intelligence side, it’s AI-powered on the edge with AXIS Object Analytics preinstalled and supports AXIS Scene Metadata for faster investigation, while a built-in microphone makes it out-of-the-box-ready for AXIS Audio Analytics. For resilience and peace of mind, it includes Axis Edge Vault cybersecurity protections and supports practical deployment features like PoE power and local microSD storage, making the P91 series a strong choice when you need maximum coverage from a single, discreet corner install.
AXIS P91 Dome Camera Series
- Full corner to corner coverage: Panoramic corner mounting delivers complete views with no blind spots so one camera can replace multiple standard domes
- Clear detail in tough lighting: Up to 6 MP imaging with a stereographic lens plus Lightfinder and Forensic WDR on supported models to keep faces and activity usable in mixed light
- Rugged and analytics ready: IK10 vandal resistance with IP66 protection plus built in microphone and AXIS Audio Analytics on selected models and strong device security with Axis Edge Vault support
Key Features
Resolution
AXIS P9117-PV Corner Camera Overview 2160×2160 to 160×160 1:1 • Corner View 2048×1536 to 320×240 4:3 • Corner View 2048×1152 to 256×144 16:9 • Frame rate without WDR 50/60 fps at 50/60 Hz • With Forensic WDR up to 25/30 fps at 50/60 Hz • H 264 H 265 Motion JPEG with Zipstream • 1.1 mm lens with 176° horizontal and 176° vertical field of view in overview mode
IR Illumination
No built in IR • Day and night with automatic IR cut filter
Dynamic Range
Forensic WDR up to 120 dB depending on scene
Artificial Intelligence
ARTPEC 8 system on chip with deep learning processing unit DLPUs
Analytics
Included AXIS Object Analytics • AXIS Image Health Analytics • AXIS Audio Analytics • AXIS Scene Metadata • AXIS Video Motion Detection • Active tampering alarm • Elevator door state detector • Built in microphone with two way audio support
Cybersecurity
Axis Edge Vault hardware based cybersecurity platform including secure element CC EAL 6+ • Axis device ID • secure keystore • signed video • secure boot • encrypted filesystem AES XTS Plain64 256 bit • Signed OS plus protections like brute force delay digest authentication and SD card encryption • Network security support includes IEEE 802 1X MACsec HTTPS HSTS TLS v1 2 v1 3 Network Time Security and host based firewall
Casing

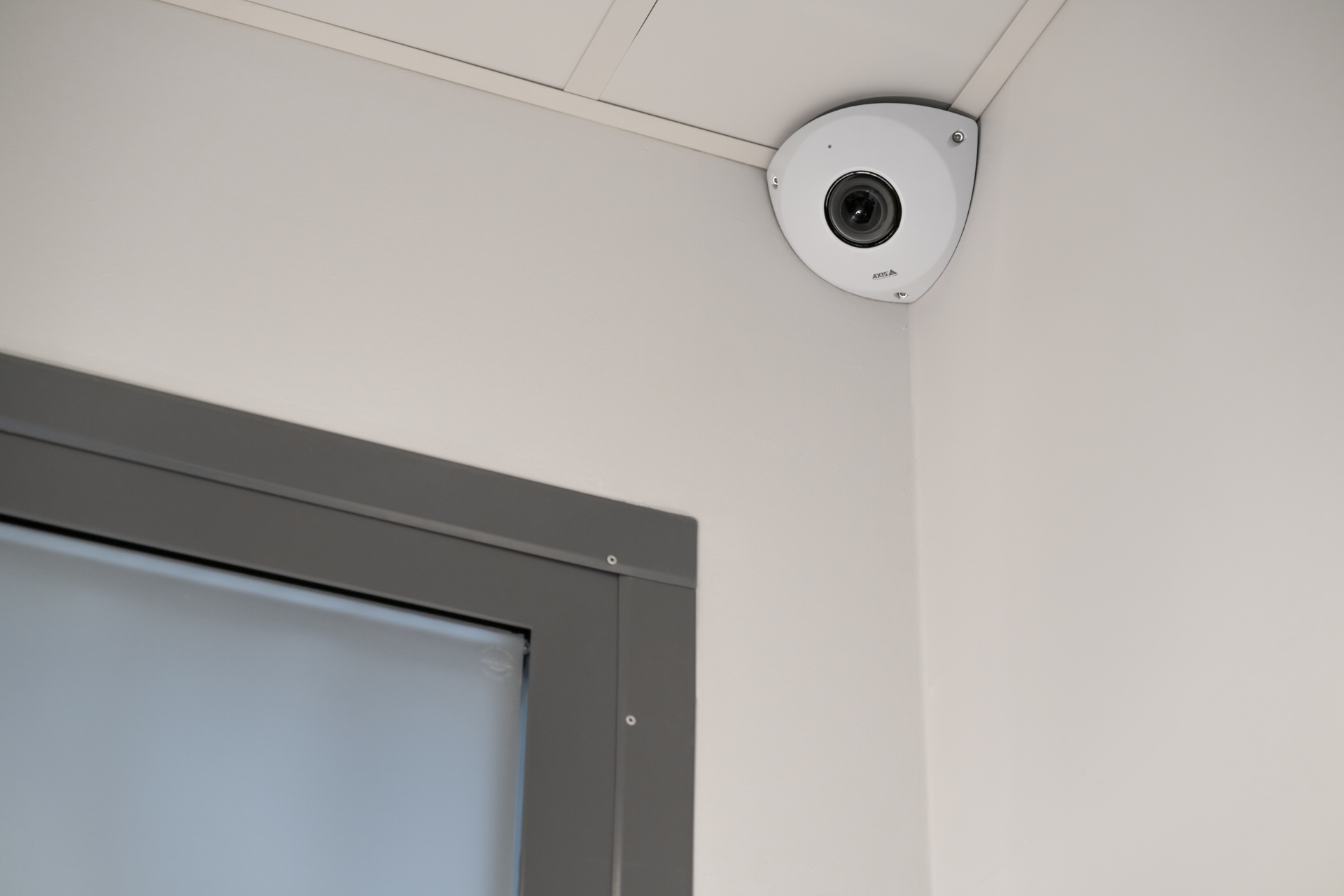

IP66 IK10 rated • Polycarbonate hard coated dome • White NCS S 1002–B • Corner mounting on 3 or 2 surfaces wall plus wall or wall plus ceiling • PoE IEEE 802 3af 802 3at Type 1 Class 3 typical 3.7 W max 5.3 W
Warranty
5 year warranty
Corner-Mounted 360° Coverage with Rugged Protection and Edge Analytics
