AXIS Q21 Thermal Camera Series
- Thermal detection you can trust: Reliable 24 7 detection and verification in total darkness and through smoke or light fog while protecting privacy
- Flexible coverage from one rugged unit: Mount on a positioning unit for 360° unobstructed views with fast pointing to any spot plus smooth guard tours
- More than detection: Powerful edge analytics support including AI based perimeter protection options plus built in Axis Edge Vault cybersecurity and temperature monitoring available on selected models
Key Features
Resolution
AXIS Q2101-TE Thermal Camera thermal sensor 384×288 scalable up to 768×576 frame rate up to 8.3 fps or 30 fps depending on version plus thermometry minus 40 C to 350 C AXIS Q2111-E Thermal Camera thermal sensor 384×288 scalable up to 768×576 frame rate up to 8.3 fps or 30 fps depending on version 60 mm lens AXIS Q2112-E Thermal Camera thermal sensor 640×480 scalable up to 800×600 frame rate up to 8.3 fps or 30 fps depending on version lens variants 10 mm 19 mm 25 mm 35 mm 60 mm 100 mm Note 8.3 fps and 30 fps versions differ only by frame rate
IR Illumination
Not required thermal technology enables detection and verification in all light conditions including total darkness and can still work in smoke and light fog while protecting privacy
Dynamic Range
Thermal sensitivity NETD Q2101-TE 40 mK at 25 C F1.0 Q2111-E less than 20 mK at 25 C F1.0 Q2112-E less than 20 mK at 25 C F1.0 plus image controls such as local contrast exposure zones and multiple color palettes
Artificial Intelligence
ARTPEC 8 platform with built in deep learning processing unit DLPU to support advanced analytics including optional AXIS Perimeter Defender with AI based functionality and third party analytics via ACAP
Analytics
Q2111-E and Q2112-E AXIS Video Motion Detection AXIS Motion Guard AXIS Fence Guard AXIS Loitering Guard active tampering alarm audio detection supports AXIS Perimeter Defender and ACAP Q2101-TE includes perimeter analytics plus early fire detection and thermometric features such as spot temperature meter and temperature detection areas
Cybersecurity
Axis Edge Vault security features such as secure boot Axis device ID secure keystore signed video and signed firmware plus additional protections listed per model
Casing
Rugged outdoor ready aluminium casing IP66 IP67 NEMA 4X and IK10 rated
Warranty
5 year warranty
AXIS Q21 Thermal Camera Series Overview

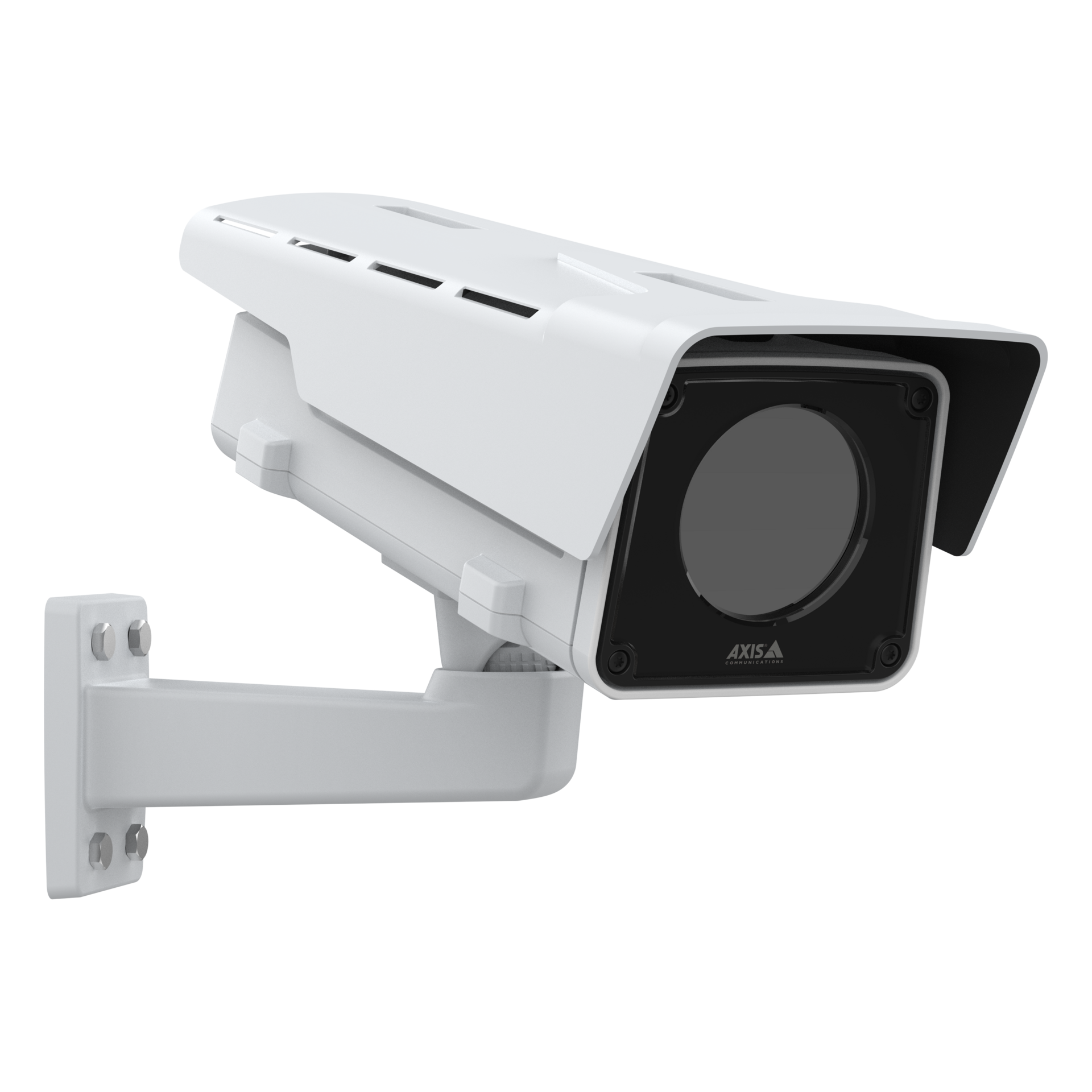

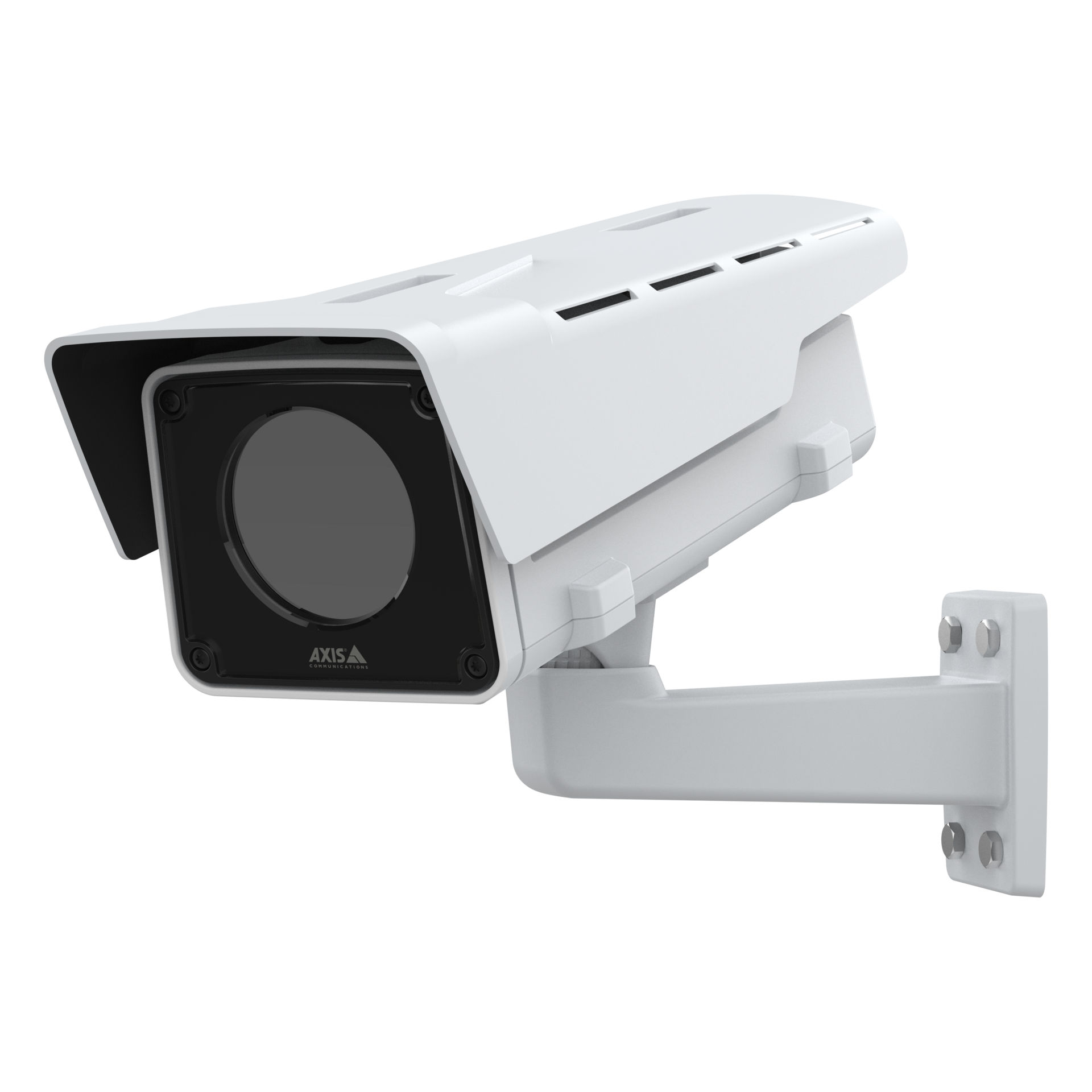

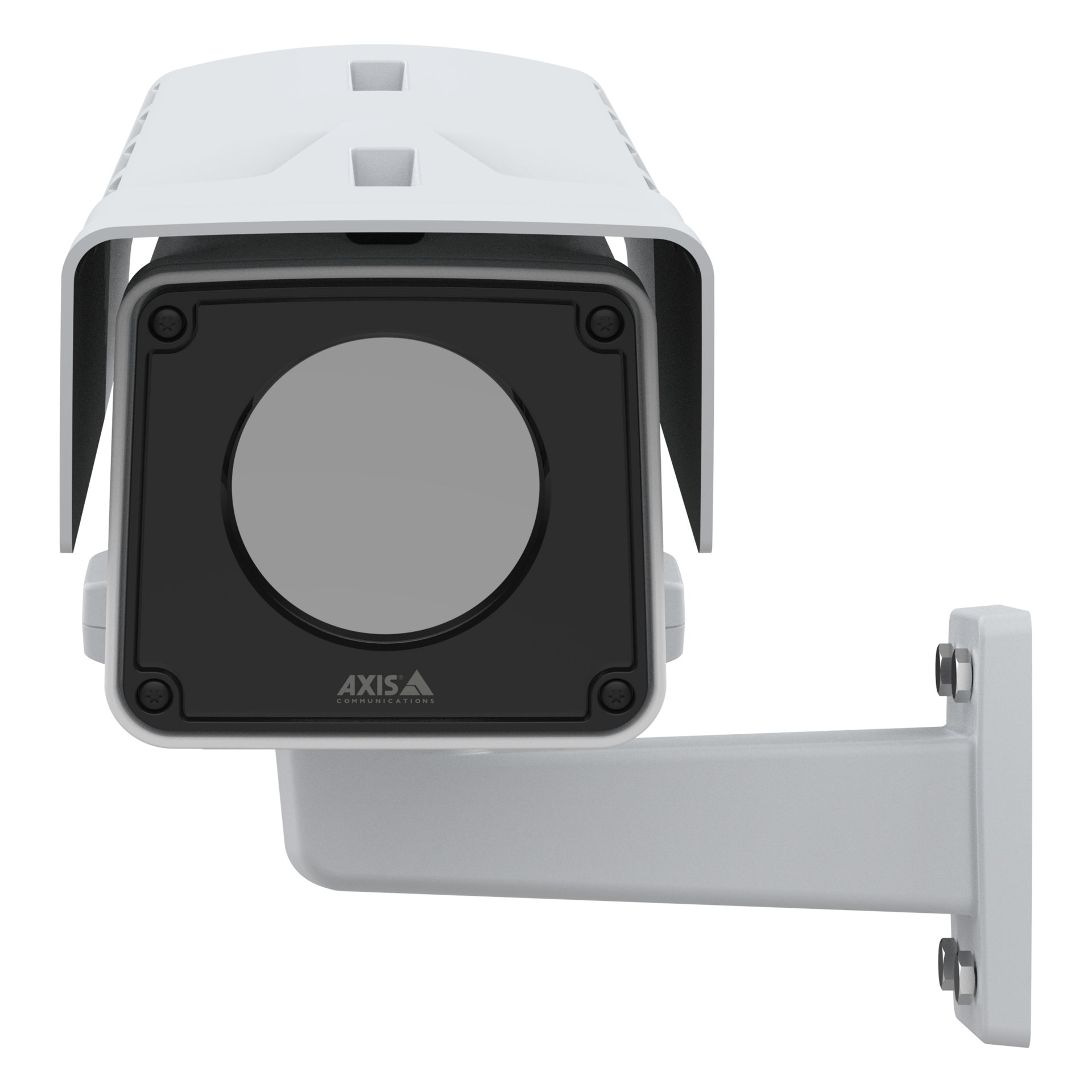

The AXIS Q21 Thermal Camera Series is a rugged outdoor thermal range designed for reliable 24/7 detection and verification in total darkness and challenging conditions like smoke and light fog, while remaining privacy-friendly because it detects heat rather than visible detail. The lineup includes AXIS Q2111-E for long-range thermal detection with a 384×288 sensor, 60 mm lens, electronic image stabilization, plus audio support and I/O for alarm-driven integrations, AXIS Q2112-E for high-resolution perimeter protection with a 640×480 sensor (scalable up to 800×600), very high thermal sensitivity and six lens options (10–100 mm) to match the required detection distance, and AXIS Q2101-TE for remote temperature monitoring across -40 °C to 350 °C with spot temperature reading, temperature metadata for analysis, and early fire detection analytics preinstalled. When paired with a positioning unit (sold separately), Q21 cameras can deliver 360° unobstructed views and smooth guard tours, and with edge-to-edge capabilities they can trigger devices like network speakers for proactive warnings. Across the range you also get modern streaming efficiency with Axis Zipstream and strong device hardening via Axis Edge Vault and robust outdoor ratings for harsh perimeter deployments.
AXIS Q21 Datasheets
