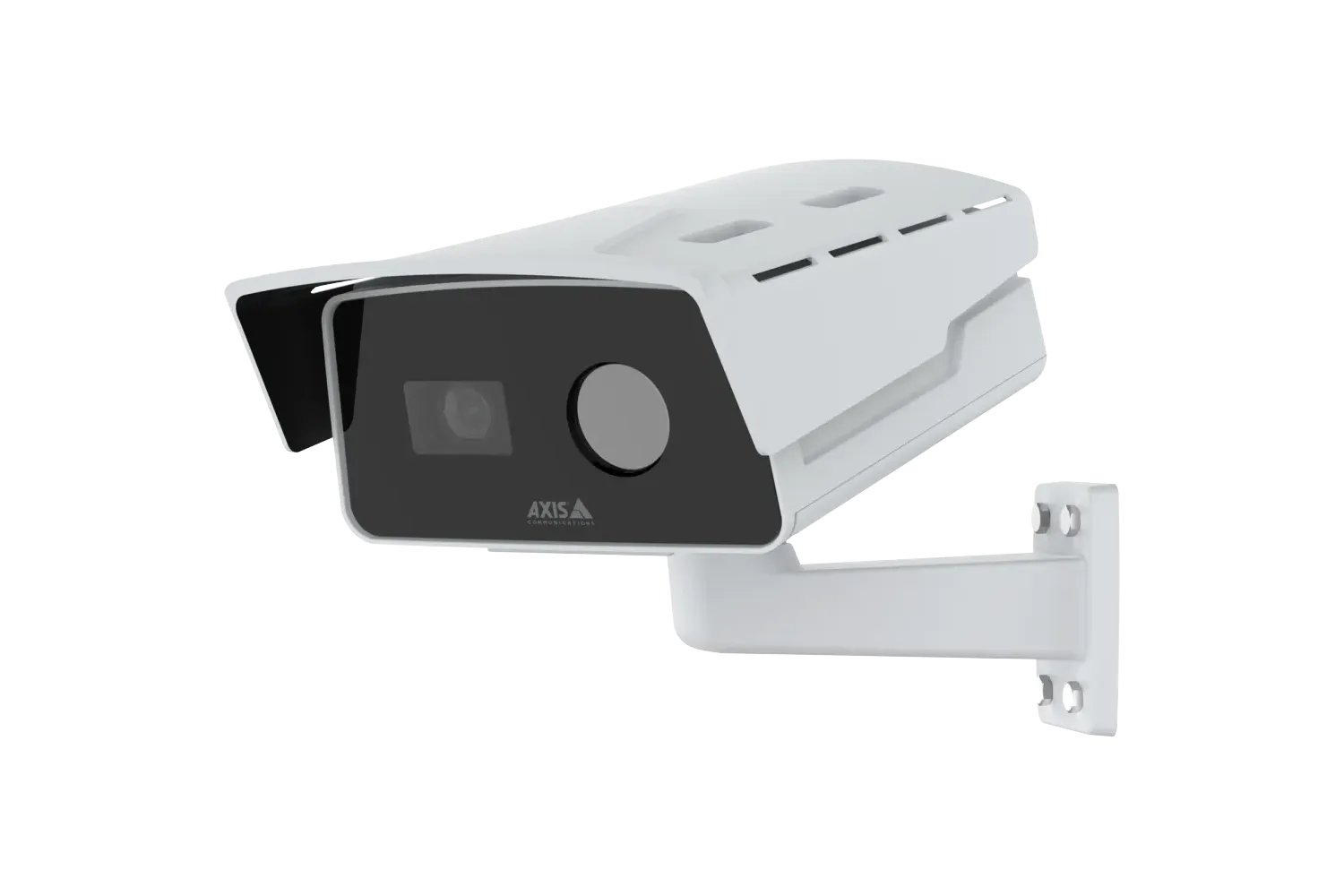

AXIS Q2802-E Bispectral Camera
- Two sensors, one view 4K visual + thermal sensor in one unit, fused into a single clear image, day or night, in fog or smoke.
- Smarter detection on the edge Built-in AI analytics detect, classify, and count people and vehicles, cutting false alarms without extra servers.
- Built to last outdoors IP66/67, IK10 vandal-resistant, hurricane-rated housing with hardware-based cybersecurity via Axis Edge Vault.
Key Features
Resolution
Visual: Up to 3840×2160 (4K, 16:9), scalable down to 480×270 • Up to 25/30 fps (50/60 Hz)
Thermal: 640×480 uncooled microbolometer, scalable up to 768×578 • 8.3 fps or 25/30 fps depending on variant • Pixel size: 17 µm • Spectral range: 8–14 µm
IR illumination
No built-in IR LEDs
Day/night switching via automatic IR-cut filter on the visual channel • Minimum illumination: 0.05 lux colour / 0.01 lux B/W at 50 IRE, F1.5 • Thermal NETD <20 mK at 25°C for heat-based detection in total darkness
Processing
AXIS ARTPEC-8 SoC with dedicated Deep Learning Processing Unit (DLPU) • 4 GB RAM, 8 GB Flash
Supports AXIS Camera Application Platform (ACAP) for third-party analytics
Analytics
Included: AXIS Object Analytics, AXIS Image Health Analytics, AXIS Scene Metadata, AXIS Video Motion Detection, Audio Detection
AXIS Perimeter Defender supported via ACAP • Additional third-party analytics supported through ACAP
Cybersecurity
Signed OS • Secure boot • Encrypted filesystem (AES-XTS-Plain64 256-bit) • Brute force delay protection • Digest authentication • OAuth 2.0 (RFC 6749)
Secure keystore: Axis Edge Vault secure element (CC EAL6+, FIPS 140-3 Level 3) • IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2) • IEEE 802.1AE (MACsec PSK/EAP-TLS) • HTTPS/HSTS • TLS v1.2/v1.3 • SD card encryption (AES-XTS-Plain64 256-bit) • Host-based firewall
Casing
Aluminium and plastic casing, white (NCS S 1002-B) • IP66, IP67, NEMA 4X, and IK10 rated (excluding front window)
Operating range: –40°C to +60°C (full power) • Sustained wind speed: 60 m/s (134 mph) • Weight: 2,950 g (6.5 lb)
Mounting
Fixed camera (no pan/tilt/zoom) • Compatible with standard Axis fixed arms or pan-tilt units, e.g. AXIS TQ1818 • Mount not included, must be ordered separately
Four lens variants: 17°, 24°, 31°, and 63° HFoV, each available in 8.3 fps and 30 fps versions
Warranty
5-year warranty
Software support: new feature development until 2030 (AXIS OS 12–14) • Security support until 31 December 2035
Bispectral Detection and Verification
The AXIS Q2802-E Bispectral Camera combines a high-resolution thermal sensor and a 4K visual sensor in a single unit, giving Customers both early detection and clear visual confirmation from one device. With NETD below 20mK, the thermal sensor offers extremely high sensitivity and a low false alarm rate, while thermal-visual image fusion combines both feeds into one clear image for enhanced scene understanding and faster response times. The camera is available in four lens options for wider or narrower fields of view, allowing it to be matched to different site layouts, from wide-area perimeters to long, narrow approaches. On the analytics side, a deep learning processing unit runs powerful analytics on the edge, removing the need for separate analytic servers, with AXIS Object Analytics preinstalled on the visual stream to detect, classify, track, and count humans, vehicles, and vehicle types, and AXIS Perimeter Defender available on the thermal stream for reliable long-range detection and classification of intruders. Built for demanding outdoor environments, the camera is rated IP66, IP67, and NEMA 4X with an IK10 vandal-resistant housing, and can withstand hurricane-force winds of more than 65 m/s (145 mph), while Axis Edge Vault provides hardware-based cybersecurity with FIPS 140-3 Level 3 certified secure key storage and operations.
