The AXIS Q36 Dome Camera Series is a high-performance outdoor dome range built for sites that need premium image quality, easy install and re-aiming, and smarter alerts without adding complexity. The line includes AXIS Q3626-VE delivering 4 MP (2688×1512) and AXIS Q3628-VE delivering 8 MP / 4K (3840×2160), both with up to 50/60 fps, day/night functionality, and a varifocal lens with remote zoom and focus—plus remote PTRZ (pan, tilt, roll, zoom) so installers can fine-tune the scene (and re-adjust later) over the network without rolling a truck. For challenging lighting, both models include Lightfinder 2.0 and Forensic WDR for clearer colour and detail in backlight and low light, while electronic image stabilization helps keep footage usable on poles and vibration-prone mounts. Built on an Axis SoC with a deep learning processing unit, the series supports analytics based on deep learning on the edge, with AXIS Object Analytics preinstalled and scene metadata to speed up forensic search, alongside efficient streaming using Zipstream with H.264/H.265 and microSD edge storage. Designed for harsh conditions, these domes use a metal casing with IK10 vandal resistance and IP66/IP6K9K protection, and they’re hardened with Axis Edge Vault features like Signed OS, secure boot, and a secure element to strengthen device-level cybersecurity.

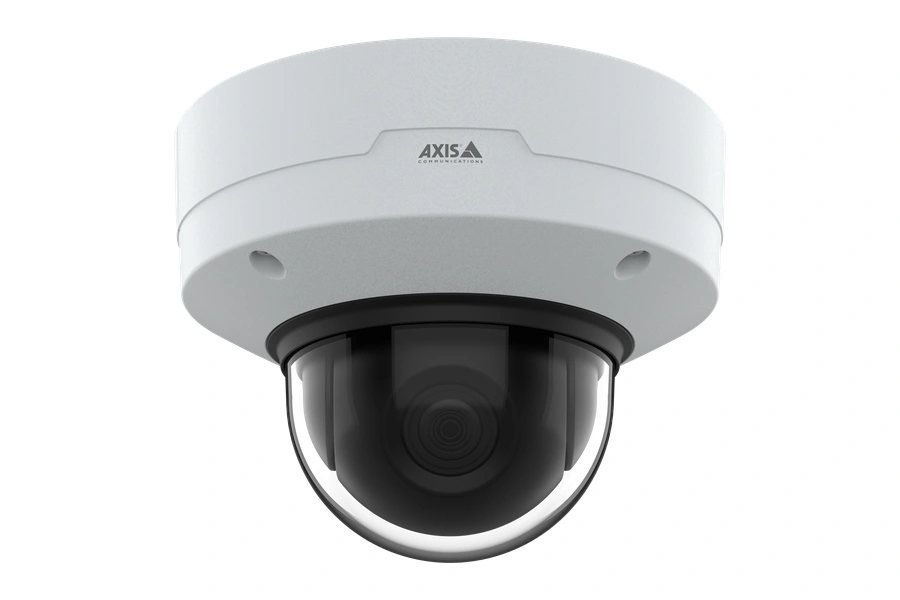

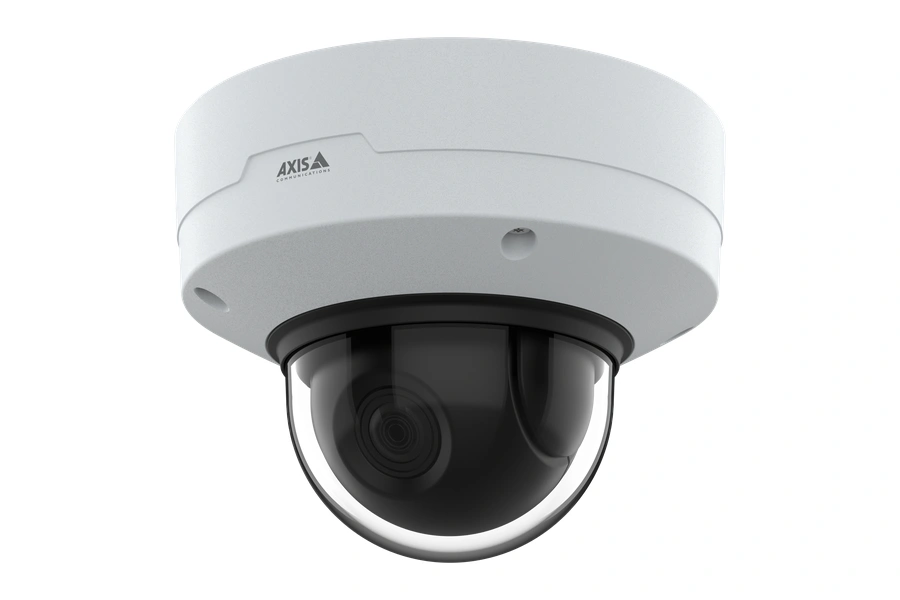

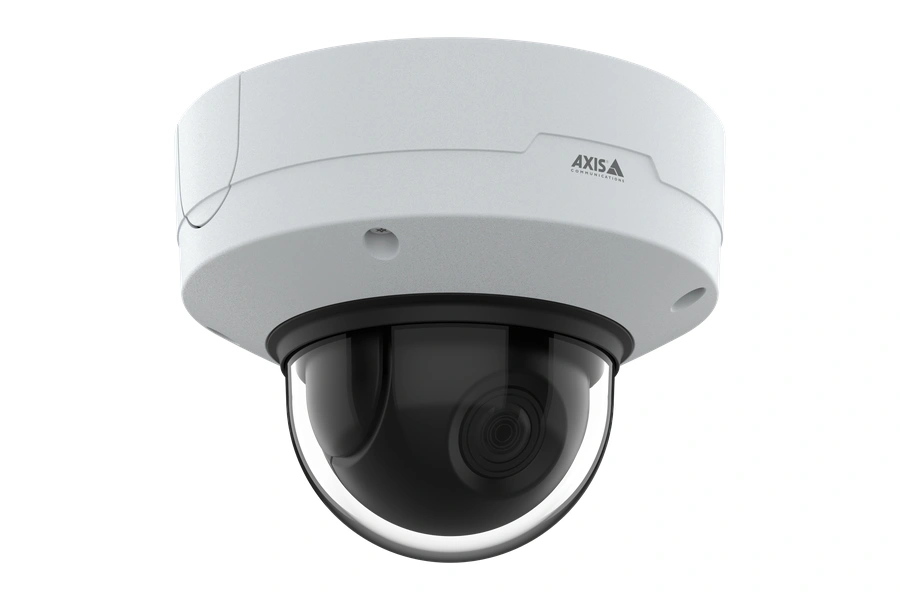

AXIS Q36 Dome Camera Series
- Rugged outdoor dome performance: Built for harsh sites with weather and vandal resistance to keep coverage reliable year round
- Clear evidence in tough lighting: Lightfinder and Forensic WDR help retain detail in backlight and low light with OptimizedIR on selected models for clean night scenes
- Smarter monitoring with lower costs: On camera analytics support plus Zipstream to reduce bandwidth and storage and Axis hardened cybersecurity for peace of mind
Key Features
Resolution
AXIS Q3626-VE Dome Camera 4 MP 2688×1512 • With Forensic WDR up to 25/30 fps 50/60 Hz • No WDR up to 50/60 fps 50/60 Hz • H 264 H 265 Motion JPEG • Axis Zipstream AXIS Q3628-VE Dome Camera 8 MP 3840×2160 • With Forensic WDR up to 25/30 fps 50/60 Hz • No WDR up to 50/60 fps 50/60 Hz • H 264 H 265 Motion JPEG • Axis Zipstream
IR Illumination
No built in IR • Day and night with automatic IR cut filter on both models
Dynamic Range
Lightfinder 2.0 • Forensic WDR up to 120 dB depending on scene across the series
Artificial Intelligence
ARTPEC 8 system on chip with deep learning processing unit DLPU to support deep learning analytics on the edge across the series
Analytics
Included AXIS Object Analytics • AXIS Scene Metadata • AXIS Image Health Analytics • AXIS Video Motion Detection • Active tampering alarm • Audio detection • AXIS Live Privacy Shield • Supported AXIS Perimeter Defender • AXIS License Plate Verifier • ACAP support for third party apps
Cybersecurity
Signed OS • Secure boot • Axis Edge Vault cybersecurity platform • Axis device ID • Secure keystore • Signed video • Encrypted filesystem AES XTS Plain64 256 bit • SD card encryption • Network security options include IEEE 802 1X IEEE 802 1AE MACsec HTTPS HSTS TLS v1 2 v1 3 Network Time Security NTS and host based firewall
Casing
Metal outdoor dome design • IP66 NEMA 4X IK10 • IP6K9K • Polycarbonate hard coated dome • Aluminum casing and weathershield • Operating conditions -50 °C to 55 °C
Warranty
5 year warranty
AXIS Q36 Dome Camera Series Overview:
AXIS Q36 Series Datasheets
