AXIS Q38 Series

29MP seamless 180° panoramic coverage from four sensors in one unit. AI-powered edge analytics, lossless zoom, and IP66/IK10 ratings — with a marine-grade SS 316L variant.
  • Four Cameras in One — 29MP Seamless 180° Panoramic Coverage Four seamlessly stitched sensors deliver a cohesive 180° horizontal and 90° vertical panoramic overview with no blind spots at up to 29MP and 30 fps — giving you the coverage of four individual cameras for the cost and complexity of one installation.
  • AI-Powered Edge Analytics Across the Full Field of View Built on a dual Axis system-on-chip with a dedicated deep learning processing unit, AXIS Object Analytics can detect, classify, track, and count humans and vehicle types across the entire 180° view — with lossless zoom enabling sharp forensic detail at any distance without image degradation.
  • Two Models Built for the Toughest Environments The Q3839-PVE is IP66/IP67, IK10, and NEMA 4X rated for demanding outdoor use from –40°C to +50°C, while the Q3839-SPVE adds marine-grade SS 316L stainless steel casing to withstand seawater corrosion — operating from –50°C to +55°C and certified to NSF/ANSI Standard 169 for use in food processing facilities.

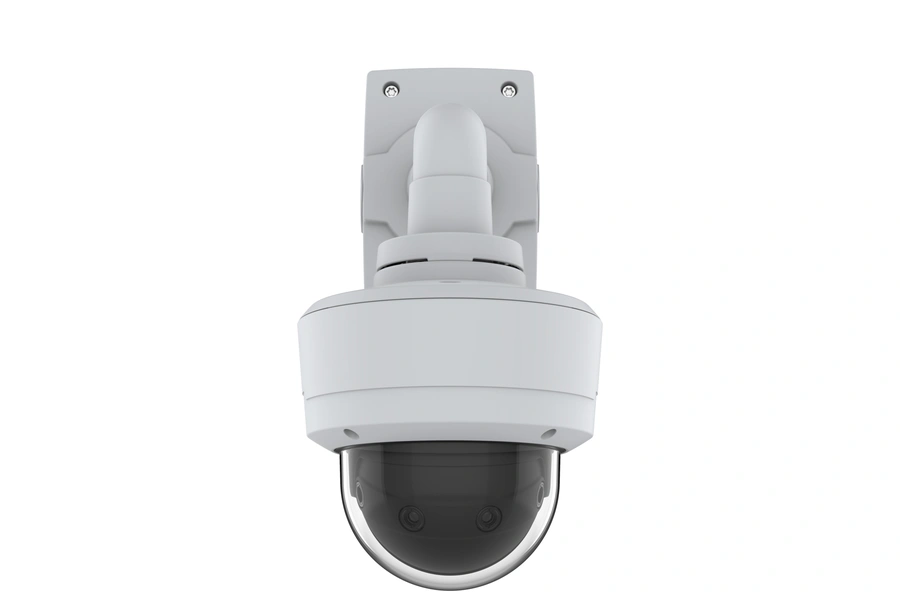

Product image
panorama

Seamless 180° Panoramic Coverage

Four stitched 8.3MP sensors deliver a 29MP blind-spot-free overview — the coverage of four cameras in one installation.
smart_toy

AI-Powered Edge Analytics

Dual ARTPEC-8 with DLPU detects, classifies, tracks, and counts humans and vehicles across the full panoramic field of view.
search

Lossless Zoom for Forensic Detail

Digitally zoom into any area of the panoramic image without degrading resolution — critical for identifying people and vehicles at distance.
water

Marine-Grade Stainless Steel Variant

The Q3839-SPVE's SS 316L electropolished casing withstands seawater corrosion, high-pressure washdown, and food processing environments.

Key Features:

Resolution

29MP — four 8.3MP 1/1.8″ progressive scan RGB CMOS sensors, seamlessly stitched • Max: 7552×3776 • Min: 512×256

Up to 25/30 fps (50/60 Hz) in all resolutions • H.264 (Baseline, Main, High), H.265 (Main), Motion JPEG • Axis Zipstream in H.264 and H.265 reduces bandwidth and storage by an average of 50%

IR illumination

No built-in IR LEDs

Day/night switching via automatic IR-cut filter • Minimum illumination: 0.1 lux colour / 0.03 lux B/W at 50 IRE, F1.8 • Lightfinder 2.0 for full-colour video in near darkness

Dynamic range

Forensic WDR up to 120 dB (scene-dependent)

Reduces noise and artefacts in high-contrast scenes for maximum forensic usability across the full 180° field of view

Artificial intelligence

Dual AXIS ARTPEC-8 SoC with dedicated Deep Learning Processing Unit (DLPU) • 4096 MB RAM per chip • 8192 MB Flash

Runs advanced analytics across the entire panoramic field of view • AXIS Scene Metadata captures faces, licence plates, vehicle colour, and clothing attributes

Analytics

Included AXIS Object Analytics — detects, classifies, tracks, and counts humans and vehicles (cars, buses, trucks, bikes)

Scenarios: line crossing, object in area, time in area, crossline counting, occupancy, tailgating detection, PPE monitoring (Beta), motion in area • Up to 10 simultaneous scenarios • AXIS Video Motion Detection, active tampering alarm, audio detection • ACAP supported for third-party analytics

Cybersecurity

Axis Edge Vault hardware cybersecurity platform • Signed OS • Secure boot • Encrypted filesystem (AES-XTS-Plain64 256-bit) • Axis Device ID • Signed video

Secure keystore: TPM 2.0 (CC EAL4+, FIPS 140-2 Level 2) • Secure element (CC EAL6+) • System-on-chip TEE • IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2) • IEEE 802.1AE (MACsec) • HTTPS/HSTS • TLS v1.2/v1.3 • SD card encryption (AES-XTS-Plain64 256-bit)

Casing

Q3839-PVE casing IP66, IP67, NEMA 4X, and IK10 rated • Polycarbonate dome

Operating range: –40°C to +50°C • Weight: ~4.8 kg • Remote motor-driven pan/tilt/roll: ±176° pan, 30°–88° tilt, ±7° roll • PoE (802.3at Class 4): typical 9.74 W, max 19.1 W
Q3839-SPVE casing Electropolished SS 316L stainless steel (EN 1.4404) • IP66, IP67, IP68, IP6K9K, NEMA 4X, and IK10 rated • Polycarbonate dome

Operating range: –40°C to +50°C • Marine-grade — withstands seawater corrosion • NSF/ANSI Standard 169 certified for food processing facilities • Remote motor-driven pan/tilt/roll: ±176° pan, 30°–88° tilt, ±7° roll • PoE (802.3at Class 4): typical 9.74 W, max 19.1 W

Warranty

5-year warranty

AXIS Q38 Series Overview

The AXIS Q3839-PVE and Q3839-SPVE capture 180° horizontal and 90° vertical at 29MP from a single IP address, presenting four sensors as one device. Dual ARTPEC-8 processors with a dedicated Deep Learning Processing Unit run AXIS Object Analytics on the edge, detecting, classifying, tracking and counting people and vehicle types across the full panoramic view. At the same time, AXIS Scene Metadata captures faces, licence plates and object attributes. Forensic WDR and Lightfinder 2.0 preserve detail in low light and high contrast, and Axis Edge Vault secures the device with signed video, a signed OS, and encrypted storage. The Q3839-PVE is IP66/IP67/IK10 rated for outdoor sites. The Q3839-SPVE adds electropolished SS 316L stainless steel and IP68 for marine, chemical and food processing environments.

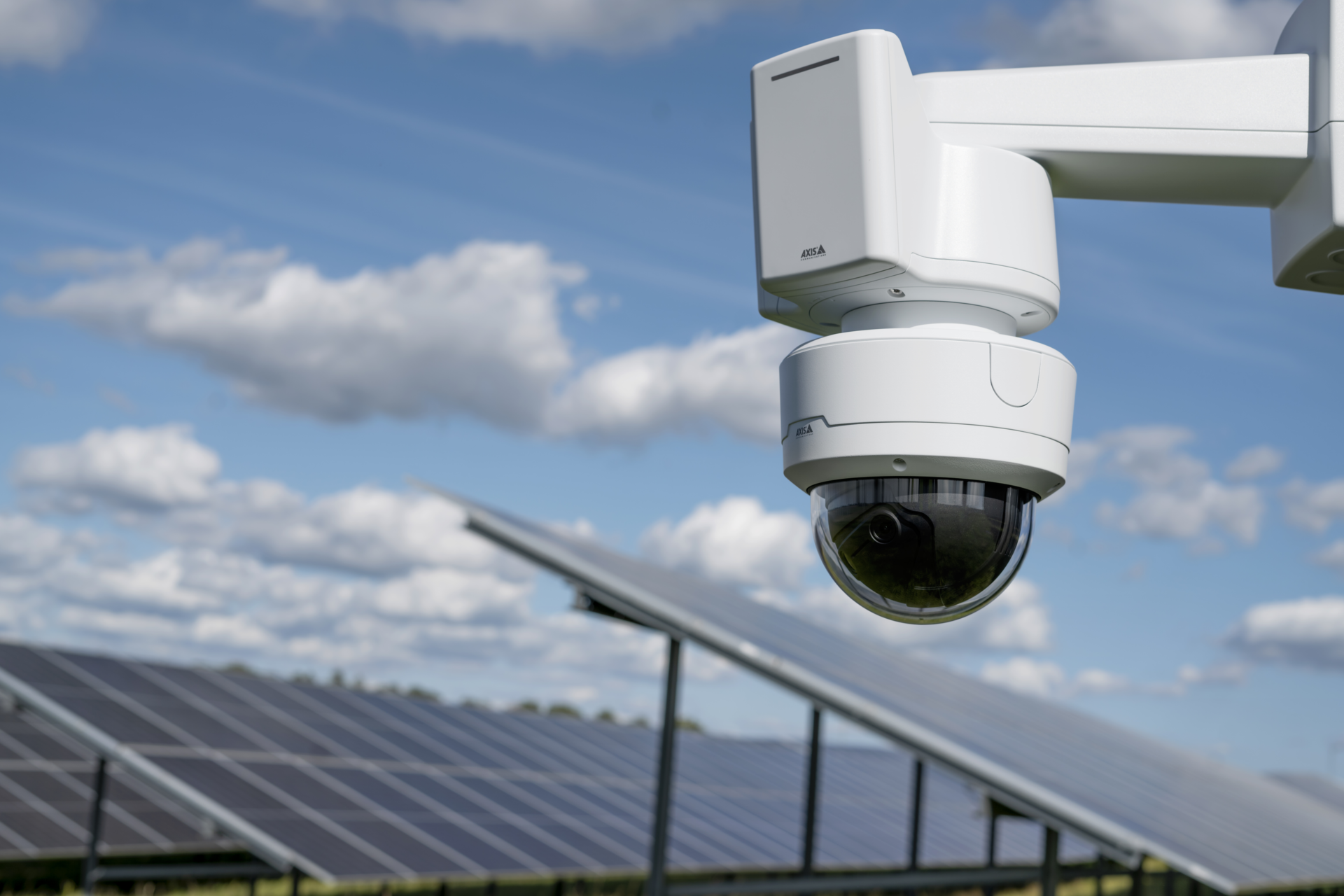

An AXIS Q3839-PVE outdoor PTZ dome security camera mounted on a wall bracket, positioned in front of rows of solar panels under a partly cloudy blue sky.
