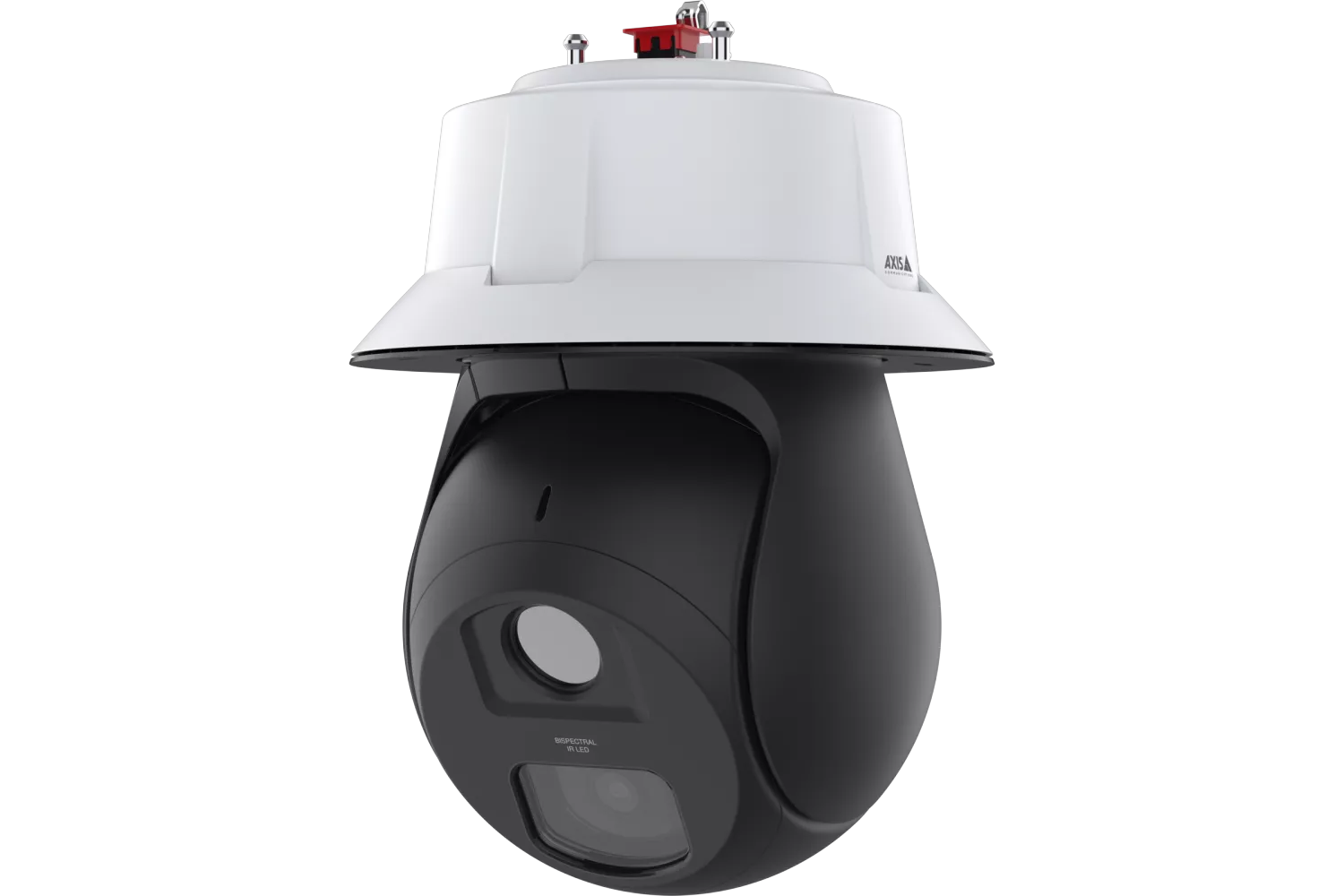

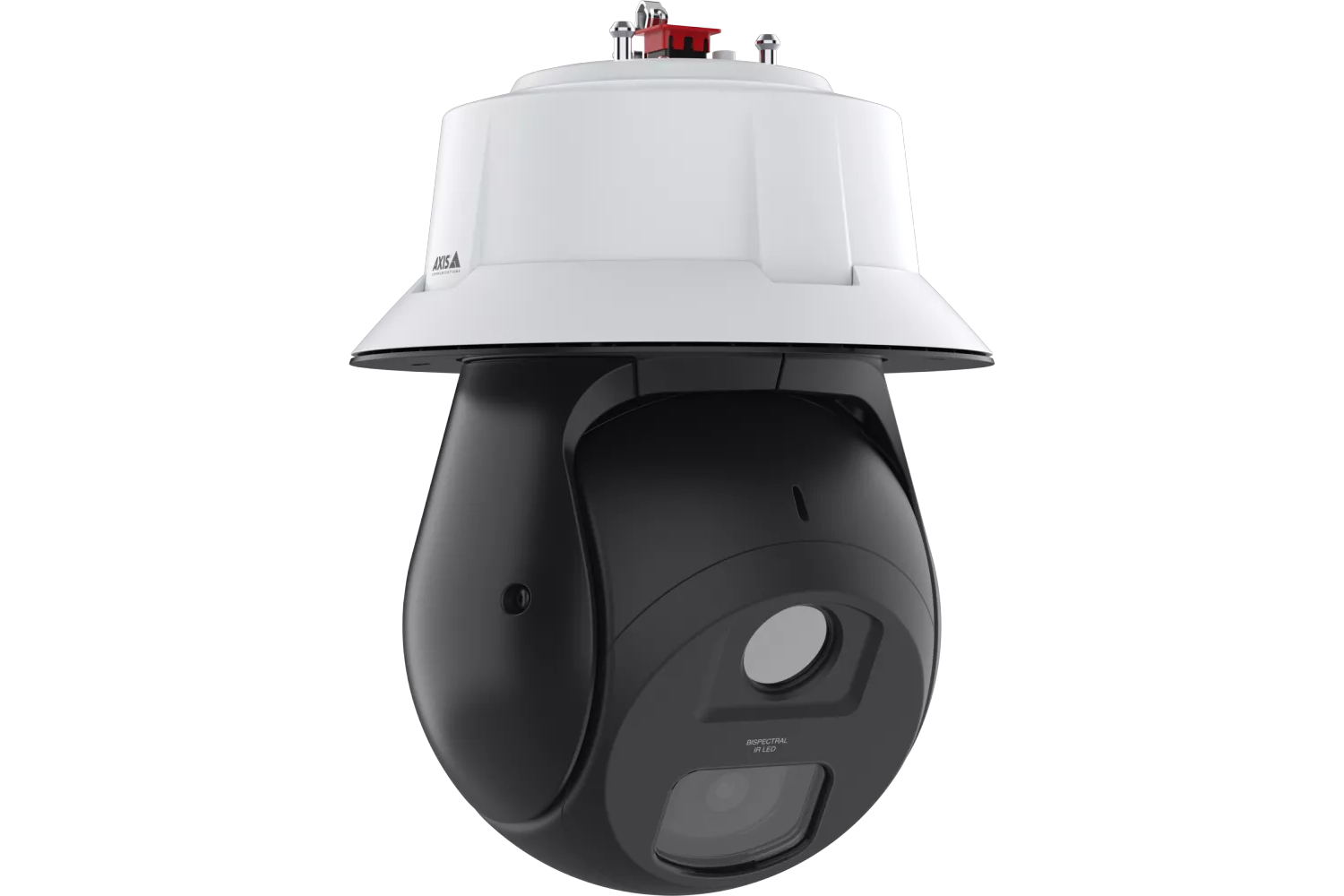

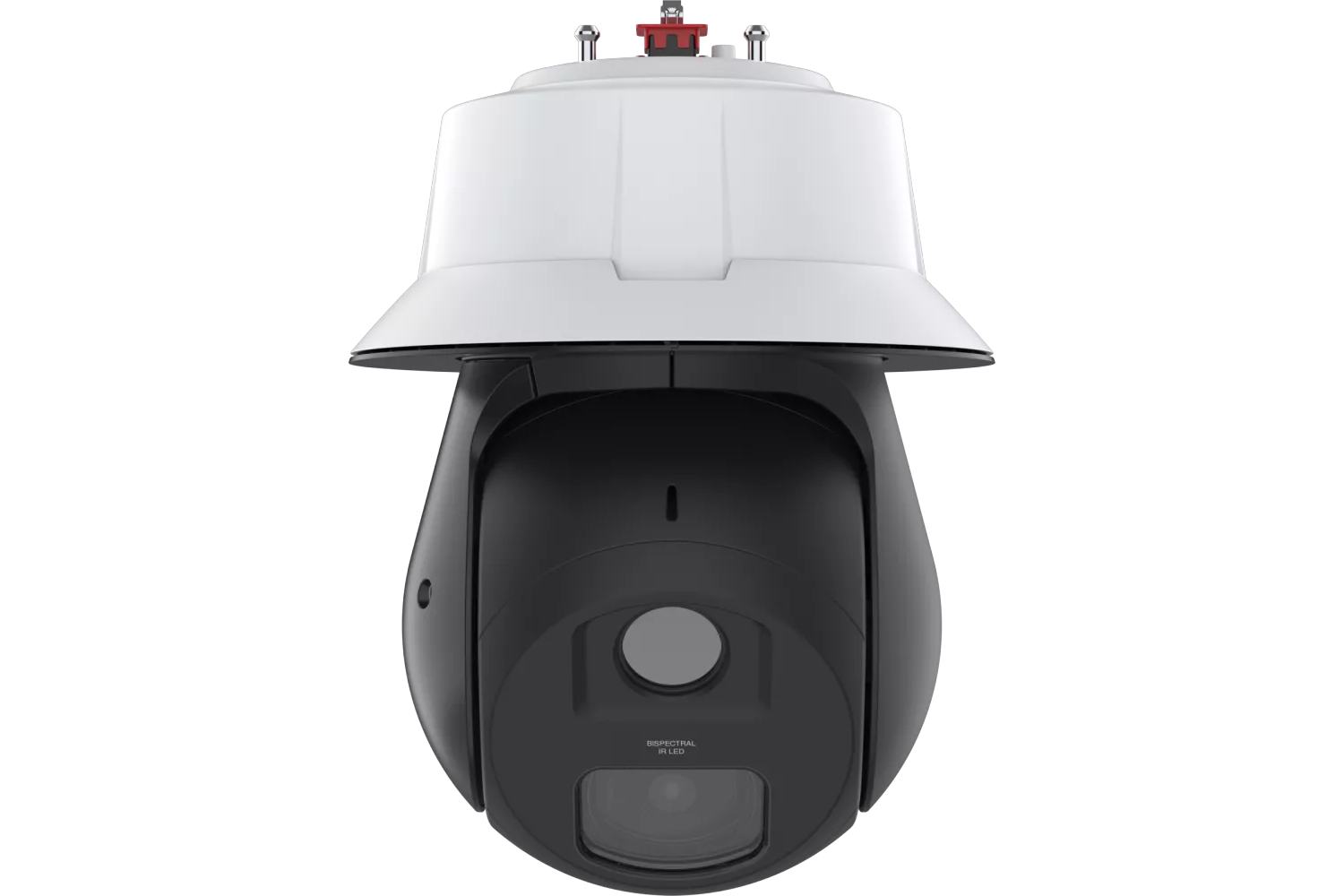

AXIS Q6411-LE Bispectral PTZ Camera

Thermal detection and visual verification in one PTZ camera. Spot intruders in total darkness, then confirm with 31x zoom — AI analytics at the edge, built for harsh outdoor sites.

Thermal and visual in one unit Detect with thermal, verify with a light-sensitive PTZ — one camera, one IP address, one licence.
Coverage day and night 55° thermal field of view, 31x optical zoom, 360° pan, and IR to 150 m in total darkness.
AI at the edge, built to last ARTPEC-9 with AXIS Object Analytics preinstalled and Axis Edge Vault cybersecurity, in an IP66/IK10 housing.

contrast

Thermal and visual in one camera

clear_night

Reliable detection in total darkness

control_camera

360° pan with 31x optical zoom

cognition

AI analytics processed on the device

Key Features

Resolution

Visual: 1080p (1920×1080), 1/2″ sensor, up to 50/60 fps | Thermal: 384×288 uncooled microbolometer, NETD <20 mK | Variants: 8.3 fps or 30 fps thermal

Optics & PTZ

Visual: 31x optical zoom (372x total), autofocus, P-iris | Thermal: 7 mm F1.18, 55° horizontal field of view | 360° endless pan, +20° to -90° tilt

IR Illumination

OptimizedIR, power-efficient long-life LEDs (850 nm) | Range up to 150 m (scene dependent)

Dynamic Range

Forensic WDR: Up to 120 dB (scene dependent)

Artificial Intelligence

ARTPEC-9 with Deep Learning Processor (DLPU) for object detection including; Humans, Vehicles (Cars, Buses, Trucks, Bikes)

Analytics

Object Analytics, Scene Metadata, Video Motion Detection, Image Health Analytics, Live Privacy Shield, Autotracking 2 | Compatible with AXIS Perimeter Defender

Cybersecurity

Axis Edge Vault, Axis device ID, Signed OS, Secure Boot, Signed Video, Secure Keystore (FIPS 140-3 Level 3)

Casing

Outdoor – IP66, NEMA 4X and IK10 rated casing (excluding front windows) | Repaintable aluminium and polycarbonate casing

Warranty

5-year warranty

Thermal detection and visual verification in a single PTZ

The AXIS Q6411-LE combines a 384×288 thermal sensor with a 55° field of view for reliable detection in any light or weather, and a light-sensitive 1080p visual camera with 31x optical zoom for identification. It offers 360° endless pan, a ground-to-sky tilt range, and OptimizedIR to 150 m in total darkness. Built on the ARTPEC-9 chip, it runs AXIS Object Analytics on the edge to detect and classify people and vehicles, with Axis Edge Vault cybersecurity built in. Available in 8.3 fps and 30 fps variants, rated IP66, IK10 and NEMA 4X for -40 °C to 55 °C.
