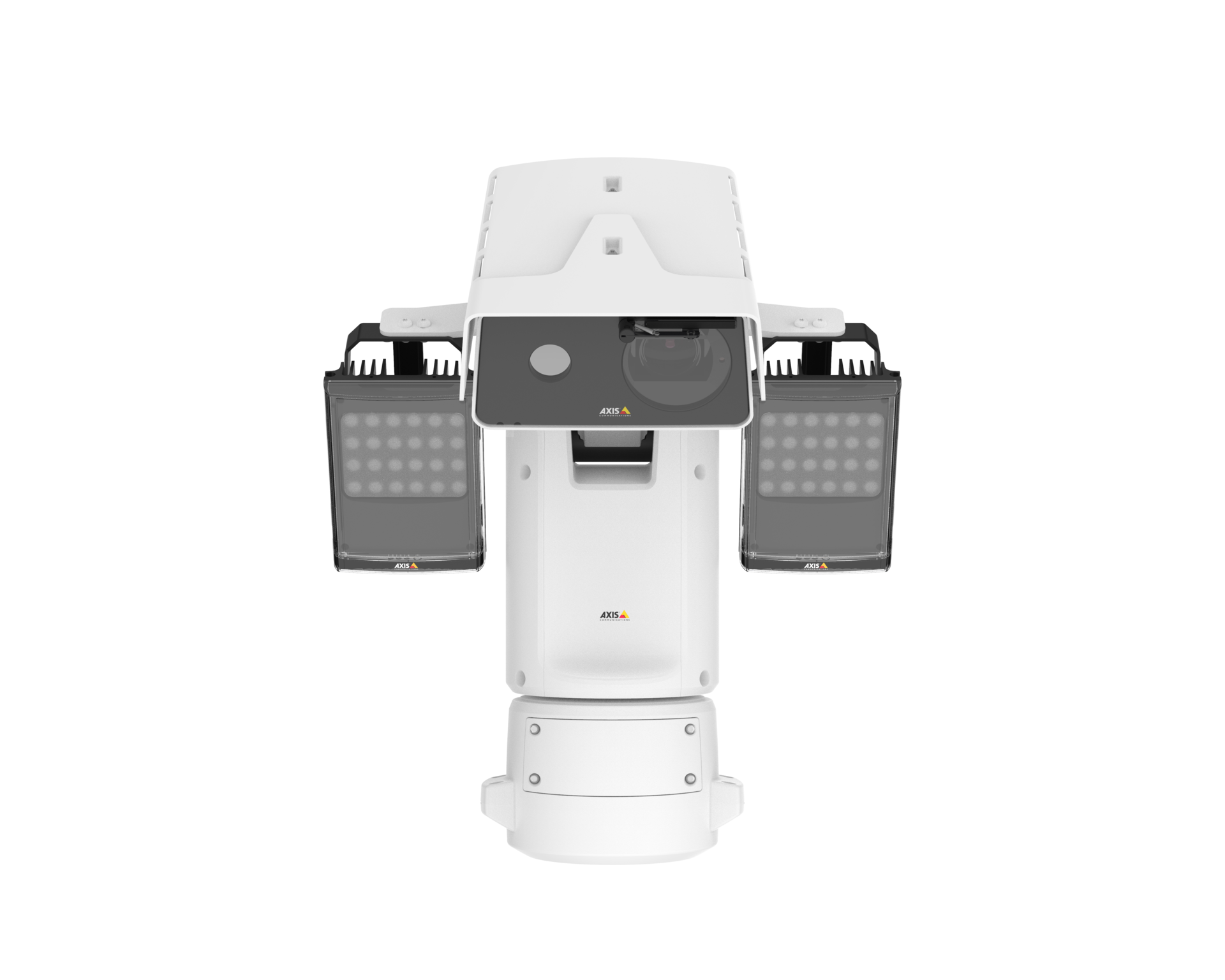

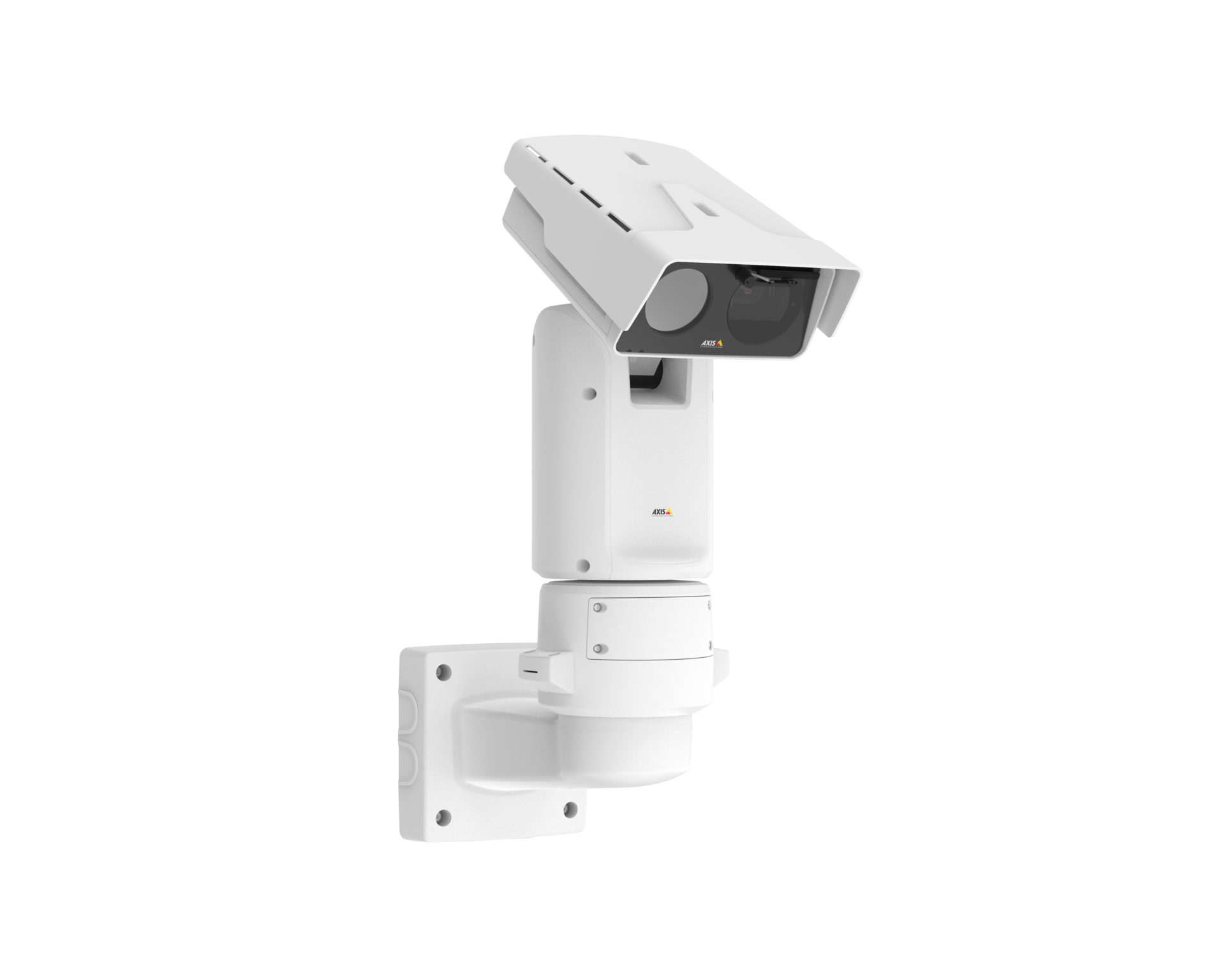

AXIS Q8752-E Mk II Bispectral PTZ Camera

Dual thermal and visual PTZ in one unit — 640×480 thermal sensor, 32x optical zoom, 360° infinite pan, EIS on both channels, IP66/IK10-rated, with FIPS 140-2 certified cybersecurity.

Thermal Detection and Visual Verification — One Camera, One Cable Combining thermal and visual PTZ capabilities in a single unit reduces the need for additional cameras to protect your premises, with a 640×480 thermal sensor alongside a 2MP visual sensor with 32x optical zoom — available with or without 3x thermal zoom depending on the variant selected.
360° Infinite Pan and Dual Image Stabilisation for Continuous Tracking 360° infinite pan enables fast repositioning and continuous tracking of objects, while Electronic Image Stabilisation on both thermal and visual channels ensures smooth, stable video — even in high winds, with motors actively compensating for external forces.
Built for Critical Infrastructure with Enterprise-Grade Cybersecurity Signed firmware, secure boot, and a FIPS 140-2 Level 2 certified TPM protect the device, while IP66, NEMA TS2, and IK10 ratings ensure the housing withstands harsh weather and vandalism. Fibre optic connectivity support overcomes distance and bandwidth limitations for large-scale perimeter deployments.

thermostat

Thermal Detection in Total Darkness

A 640×480 uncooled thermal sensor detects heat signatures reliably in any lighting or weather condition.

pageview

32x Optical Zoom with Visual Verification

Identify and verify threats at long range with HDTV 1080p clarity and Lightfinder 2.0 low-light performance.

360

360° Infinite Pan and Continuous Tracking

Endless pan rotation and –90° to +45° tilt enable fast repositioning and uninterrupted object tracking.

shield

IP66, IK10 & FIPS 140-2 Certified

Vandal-resistant, weatherproof housing and a hardware-secured TPM protect the camera in the harshest environments.

Key Features:

Resolution

Visual: HDTV 1080p (1920×1080) down to 320×180 • Up to 50/60 fps (50/60 Hz)

Thermal: 640×480 uncooled microbolometer, scalable up to 800×600 (SVGA) • 8.3 fps or 30 fps depending on variant • Pixel size: 17 µm • Spectral range: 8–14 µm

IR illumination

No built-in IR LEDs

Day/night switching via automatic IR-cut filter on visual channel • Minimum illumination: 0.06 lux colour / 0.01 lux B/W at 50 IRE, F1.4 • Thermal NETD <50 mK at 25°C for heat-based detection in total darkness

Dynamic range

AXIS ARTPEC-7 SoC with dedicated Deep Learning Processing Unit (DLPU) • 2 GB RAM, 512 MB Flash

Supports AXIS Camera Application Platform (ACAP) for third-party deep-learning analytics

Analytics

Included AXIS Motion Guard, Fence Guard, Loitering Guard, Video Motion Detection, Orientation Aid PTZ, Audio Detection, Advanced Gatekeeper

AXIS Perimeter Defender supported via ACAP • Third-party analytics supported via AXIS Camera Application Platform

Cybersecurity

Signed OS • Secure boot • Encrypted filesystem (AES-XTS-Plain64 256-bit) • Brute force delay protection • Digest authentication • OAuth 2.0 (RFC 6749)

Secure keystore: TPM 2.0 (CC EAL4+, FIPS 140-2 Level 2) • IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2) • IEEE 802.1AE (MACsec PSK/EAP-TLS) • HTTPS/HSTS • TLS v1.2/v1.3 • SD card encryption (AES-XTS-Plain64 256-bit) • Host-based firewall

Casing

Powder-coated aluminium • IP66, NEMA 4X, and IK10 rated • Long-life silicone wiper • UV-stabilised thermoplastic weathershield

Operating range: –40°C to +60°C • Wind load (PTZ operational): 37 m/s (83 mph) • Weight: 14.9 kg (35mm) / 15.3 kg (Zoom) • Dimensions: 244×360×582 mm

Pan / Tilt / Zoom

Pan: 360° endless, 0.05°–120°/s • Tilt: –90° to +45°, 0.05°–65°/s

Visual: 32x optical zoom (4.3–137.6 mm, F1.4–4.0), 12x digital, 384x combined • Thermal (Zoom variant): 3x optical, 4x digital, 12x combined • EIS on both channels • 256 preset positions • Dynamic load balancing compensates for wind load

Warranty

5-year warranty

Thermal Detection and Visual Verification in One High-Performance PTZ

The AXIS Q8752-E Mk II is a bispectral outdoor PTZ camera combining a 640×480 thermal sensor with a 2MP HDTV 1080p visual sensor in a single unit — available in four variants with either a fixed 35mm or 3x zoom thermal lens, and at 8.3 or 30 fps. The visual channel delivers 32x optical zoom, Lightfinder 2.0 for low-light colour performance, and Forensic WDR for high-contrast scenes, while Electronic Image Stabilisation on both channels ensures stable video even in high winds. A 360° infinite pan and –90° to +45° tilt range enable continuous object tracking, with a thermal sensitivity of less than 50mK at 25°C for reliable heat-based detection. Built on the ARTPEC-7 platform, it supports AXIS Perimeter Defender, Motion Guard, and Loitering Guard, plus third-party analytics via ACAP. Cybersecurity includes signed firmware, secure boot, and a FIPS 140-2 Level 2 certified TPM, with IP66, IP67, NEMA TS2, and IK10 housing ratings. Fibre optic connectivity and an integrated silicone wiper support long-range and remote installations — backed by a 5-year warranty.
