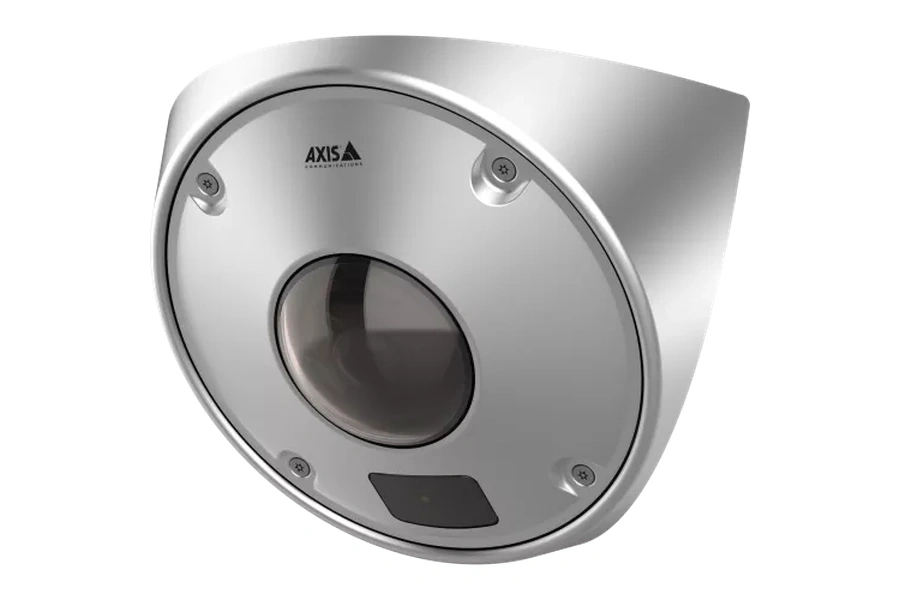

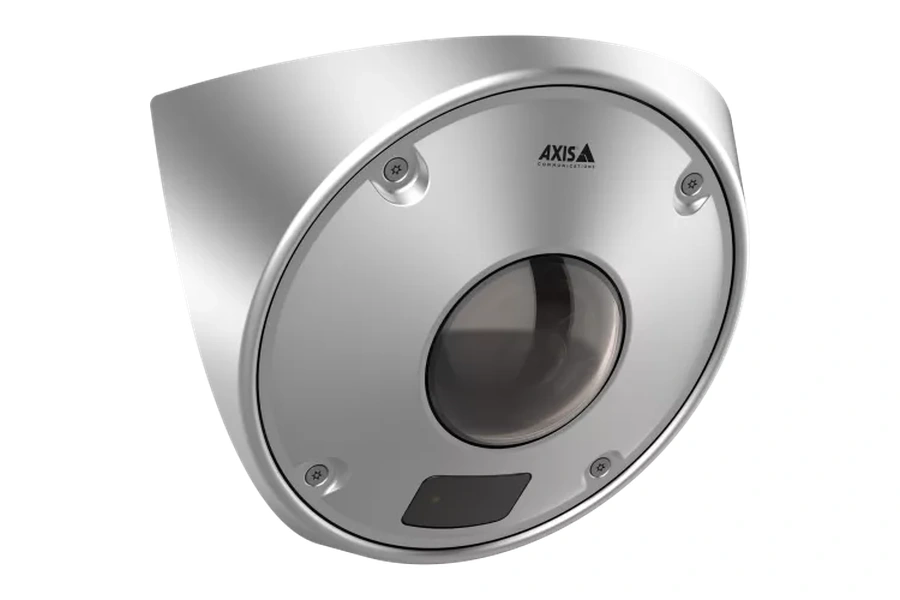

AXIS Q9227-SLV Corner Camera
- Safer corner coverage for high-risk rooms Compact anti-ligature/anti-grip design with IK11 impact rating and IP66 / IP69 / IP6K9K protection for tough, wash-down environments.
- Clear evidence 24/7 without intrusive light 5 MP imaging (up to 2880×2160) with Lightfinder 2.0 and Forensic WDR up to 120 dB, plus 940 nm “invisible” IR and a white LED (both up to ~10 m, scene dependent).
- Smarter alerts + two-way communication Built-in hidden mic/speaker for talk-down, with AI apps preloaded: AXIS Object Analytics, AXIS Audio Analytics and AXIS Live Privacy Shield.
Key Features
Resolution
5 MP: (4:3) 2880×2160 (down to 160×120). Image sensor: 1/1.7” progressive scan RGB CMOS (pixel size 2.9 μm). Lens: 3.7 mm, F2.0 (H: 115°, V: 89.2°), autofocus, IR-corrected. Max frame rate: Up to 25/30 fps (50/60 Hz) in all resolutions.
IR Illumination
OptimizedIR: Power-efficient, long-life 940 nm “invisible” IR LEDs. IR range of reach: 10 m (33 ft) or more depending on the scene. White LED: Power-efficient, long-life white LED for colour detail when required. White LED range of reach: 10 m (33 ft) or more depending on the scene. Minimum illumination: Colour: 0.06 lux (50 IRE, F2.0). B/W: 0 lux (50 IRE, F2.0). 0 lux with IR on.
Dynamic Range
Wide dynamic range: Forensic WDR up to 120 dB (depending on scene).
Artificial Intelligence
Compute: ARTPEC-8 SoC with deep learning processing unit (DLPU) for on-edge analytics. Preinstalled video analytics: AXIS Object Analytics (detect, classify, track, and count humans). Preinstalled audio analytics: AXIS Audio Analytics (sound pressure level + adaptive detection + audio classification). Audio classes include: scream, shout, glass break, speech, coughing fit. Privacy: AXIS Live Privacy Shield (AI-based dynamic masking).
Analytics
Video motion / tamper: AXIS Video Motion Detection and active tampering alarm. Image health monitoring: AXIS Image Health Analytics (tampering such as blocked/redirected image; image degradation such as blurred/underexposed image; plus sensitivity/validation settings). Scene metadata: AXIS Scene Metadata (object classes include humans, faces, vehicles—cars/buses/trucks/bikes—and license plates; plus attributes like vehicle colour, clothing colours, bag, confidence, position). Audio metadata: Audio level plus detections/classifications from AXIS Audio Analytics.
Cybersecurity
Edge security (software): Signed OS, brute force delay protection, digest authentication, OAuth 2.0 (client credential + OpenID authorization code flows), password protection, Axis Cryptographic Module (FIPS 140-2 Level 1). Edge security (hardware): Axis Edge Vault; secure keystore using secure element (CC EAL 6+, FIPS 140-3 Level 3) and system-on-chip security (TEE); Axis device ID; secure boot; encrypted filesystem (AES-XTS-Plain64 256-bit); signed video support. Network security: IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2), IEEE 802.1AE (MACsec), IEEE 802.1AR, HTTPS/HSTS, TLS v1.2/v1.3, Network Time Security (NTS), X.509 certificate PKI, host-based firewall.
Casing
Construction: Anti-ligature and anti-grip stainless steel casing with polycarbonate hard-coated smoked dome. Ratings: IK11, IP66, IP69, IP6K9K, and NEMA 4X. Variants / finish: Steel: stainless steel. White: white (NCS S 1002-B). Operating conditions: −20°C to +50°C (continuous), up to +55°C (intermittent); 10–85% RH (non-condensing).
Warranty
5-year warranty. Software lifecycle: New feature development until 2030 (AXIS OS 12/13/14); support until 2035-12-31 (AXIS OS LTS 2030–2035).
AXIS Q9227-SLV Corner Cameras: Full Coverage, Safer Spaces, Smarter Response
Designed for high-security environments like correctional facilities and mental health wards, the AXIS Q9227-SLV Corner Camera is a compact, anti-ligature, IK11-rated corner-mount camera built to withstand tampering while eliminating blind spots with a wide 115° horizontal / 89.2° vertical view. It delivers sharp 5 MP (2880×2160) video at up to 30 fps, with Lightfinder 2.0 and Forensic WDR to handle difficult lighting, plus 940 nm invisible IR for discreet monitoring in darkness (with a white LED option to capture details in color). A key advantage of this model in the corner-camera lineup is integrated communication: a hidden microphone and speaker (with on/off switch and voice enhancer) enable clear two-way audio, and the camera includes AI-powered video and audio analytics such as AXIS Object Analytics and AXIS Audio Analytics, with a deep learning processing unit to run features on the edge. For straightforward installation and resilience, it supports PoE (Class 3), local microSD storage, and high environmental protection including IP66, IP69 and IP6K9K ratings, plus built-in cybersecurity via Axis Edge Vault—making it a strong choice when you need durable corner coverage, better incident awareness, and faster response without adding complexity.
