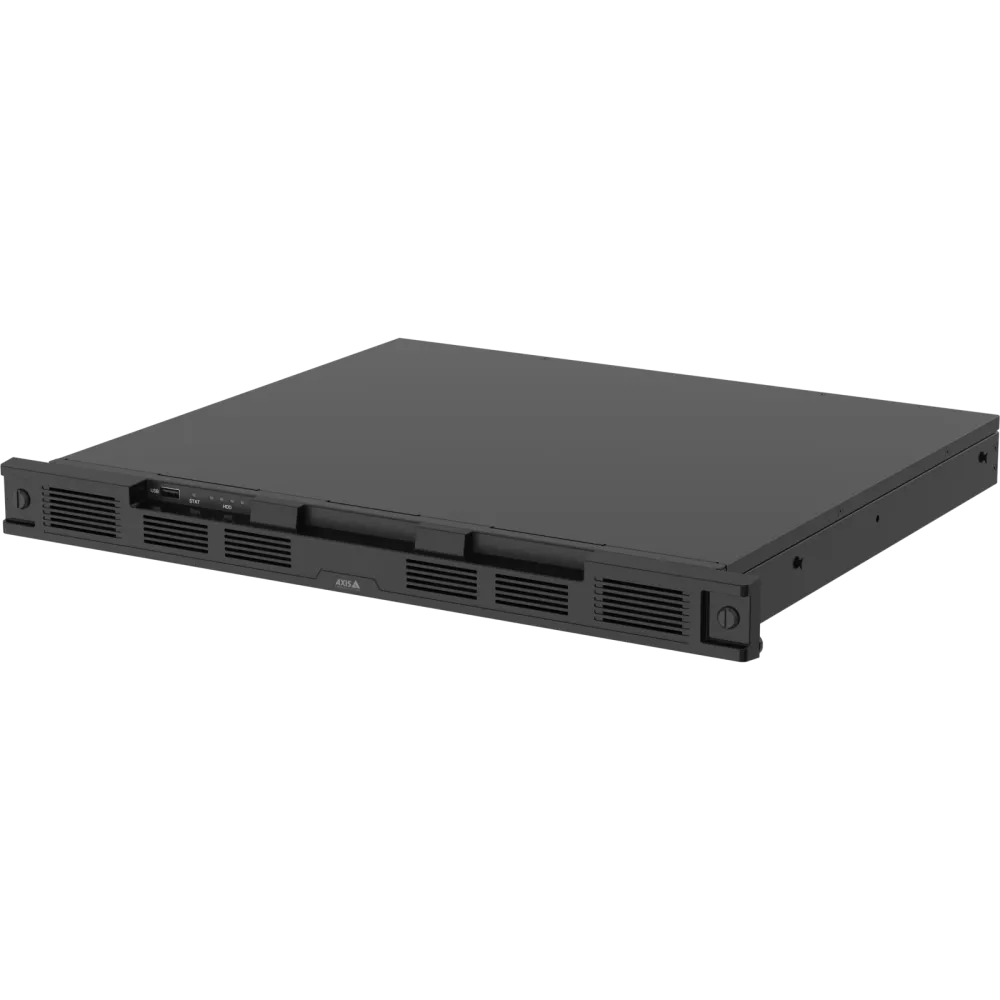

AXIS S4000 Rack Recorder

Compact 1U rack recorder with FIPS 140-3 Level 3 security, encrypted UHD storage up to 32TB, and silent operation — flexible expansion for any existing or new installation

Flexible Storage Expansion Without the Complexity A compact 1U rack recorder supporting up to 16 channels across 8TB, 16TB, and 32TB storage variants — works with both Axis and third-party network switches, making it simple to add storage to existing sites or new installations without reconfiguration.
Best-in-Class Cybersecurity Built In Built on AXIS OS with FIPS 140-3 Level 3 certified cryptographic key storage, encrypted recordings both at rest and in transit, NDAA compliance, and TAA designation — delivering one of the highest security standards available in any Axis recorder.
Silent, Space-Efficient, and Instantly Scalable Designed for tight spaces including 4-post AV racks and wall-mounted enclosures, the S4000 operates silently — ideal for offices and retail — and scales seamlessly across single and multi-site AXIS Camera Station deployments, all backed by a 5-year warranty.

shield_lock

FIPS 140-3 Level 3 Certified Security

hard_drive

Surveillance-Grade Storage up to 32TB

settings_ethernet

Compatible with Any Network Switch

volume_off

Silent 1U Rack Operation

Key Features

1U rack form factor

Compact design built for tight spaces, compatible with 4-post AV racks, wall-mounted enclosures, and standard IT server rooms via optional AXIS TS3901 Rail Extensions

Up to 16 video channels

Supports recording and storage for up to 16 video channels across all three storage variants

Three storage variants

Available in 8TB, 16TB, and 32TB configurations using surveillance-grade hard drives

Multiple RAID configurations

Supports RAID levels 0, 1, 5, 6, and 10 to minimise risk of recording gaps, downtime, and data loss

Encrypted storage and transmission

All video is encrypted both when stored on the hard drive and when transmitted across the network

FIPS 140-3 Level 3 certified

Offers the highest-grade secure cryptographic key storage and operations of any Axis recorder

AXIS OS based

Built on Axis’s own operating system, designed according to the Axis Security Development Model (ASDM) for consistent, managed cybersecurity

NDAA & TAA compliant

Produced in a TAA-designated country and compliant with NDAA regulations for government and regulated installations

Third-party switch compatible

Works with both Axis network switches and existing third-party switches, fitting into current IT infrastructure without reconfiguration

Silent operation

Fanless design ensures no disruption to local operations, suitable for offices, retail stores, and other noise-sensitive environments

USB 3.0 export port

Built-in USB 3.0 port for straightforward local export of recorded footage

AXIS Camera Station compatible

Fully integrated with both AXIS Camera Station Edge and AXIS Camera Station Pro for centralised management across single and multi-site deployments

5-year warranty

Backed by a 5-year hardware warranty with software support until 2033

A Secure, Flexible 1U Rack Recorder for New and Expanding Surveillance Installations

AXIS S4000 Recorder Overview

The AXIS S4000 Rack Recorder is a compact, silent 1U rack NVR supporting up to 16 video channels, available in three surveillance-grade storage variants — 8TB, 16TB, and 32TB — with all video encrypted both at rest and in transit, and multiple RAID configurations (levels 0, 1, 5, 6, and 10) to minimise recording gaps, downtime, and data loss. Built on AXIS OS and designed according to the Axis Security Development Model (ASDM), it offers FIPS 140-3 Level 3 certified cryptographic key storage — the highest security certification in the Axis recorder range — and is both NDAA compliant and produced in a TAA-designated country. Unlike the S30 series, the S4000 has no built-in PoE switch and instead works with both Axis and third-party network switches, making it straightforward to integrate into existing IT infrastructure without reconfiguration. It supports USB 3.0 for local footage export, dual RJ45 Gigabit Ethernet, and an SFP Gigabit interface, and is fully compatible with both AXIS Camera Station Edge and AXIS Camera Station Pro — adding distributed storage to single or multi-site deployments without increasing load on the central server. Its silent fanless operation makes it suitable for offices, retail stores, and noise-sensitive environments, and the entire range is backed by a 5-year warranty with software support until 2033.
