Explore the ExCam XF P3807 panoramic camera with 180° coverage for hazardous and explosion-protected areas.

See more with fewer devices Get a seamless 180° panoramic view with four built-in sensors, helping operators monitor wide hazardous areas with no blind spots from a single camera.
Built for explosive and harsh environments The ExCam XF P3807 is explosion-protected and certified for hazardous areas including ATEX, IECEx and INMETRO Zone 1/21, with a heavy-duty stainless-steel housing and strong ingress protection for demanding sites.
Clear evidence-grade imaging in difficult light With 8.3 MP up to 30 fps, plus Forensic WDR and Lightfinder, it delivers sharp, detailed footage for stronger situational awareness in challenging lighting conditions.

panorama_horizontal

180° Panoramic Coverage

shield

Explosion-Protected Design

night_sight_max

Clear Vision in Difficult Light

linked_camera

Four Sensors, One Seamless View

Key Features

Resolution

Up to 4320×1920 down to 480×270 • 8.3 MP (client dewarp): up to 25/30 fps (50/60 Hz) with WDR off, or up to 12.5/15 fps (50/60 Hz) with Forensic WDR enabled • 7.5 MP (dewarped): up to 12.5/15 fps (50/60 Hz)

IR Illumination

No built-in IR LEDs listed • Day/night operation via automatic IR-cut filter and hybrid IR filter

Dynamic Range

Forensic WDR up to 120 dB (scene-dependent) for improved detail in high-contrast scenes

Artificial Intelligence

ARTPEC-6 SoC • The current Axis datasheet does not list a dedicated DLPU or built-in deep-learning object classification engine for this model • Supports AXIS Camera Application Platform (ACAP) for additional third-party applications

Analytics

Included: AXIS Motion Guard, AXIS Fence Guard, AXIS Loitering Guard, AXIS Video Motion Detection, active tampering alarm, shock detection

Supported: AXIS Camera Application Platform (ACAP) for third-party applications

Cybersecurity

Signed OS, brute force delay protection, digest authentication, OAuth 2.0 (RFC 6749 OpenID Authorization Code Flow), password protection, encrypted SD card storage (AES-XTS-Plain64 256-bit) • Network security: IEEE 802.1X, IEEE 802.1AE (MACsec), IEEE 802.1AR, HTTPS/HSTS, TLS v1.2/v1.3, NTS, X.509 PKI, host-based firewall

Casing

Explosion-protected industrial housing: SS 316L stainless-steel chassis • Environmental rating IP66/IP67/IP68 • Certified for ATEX, IECEx, INMETRO, EAC Ex, PESO, and UKCA hazardous Zone 1/21 applications

Warranty

5-year warranty

Panoramic Protection for Hazardous Areas

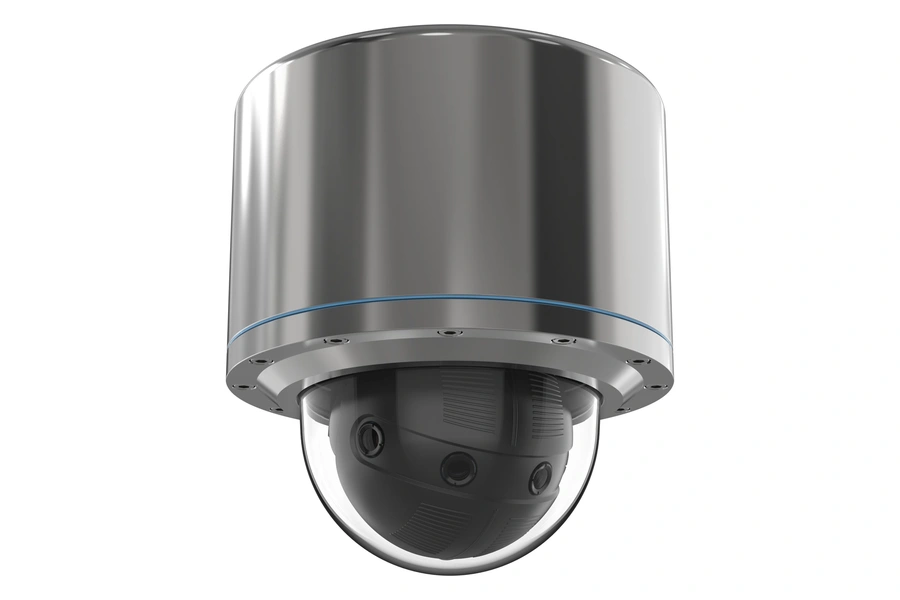

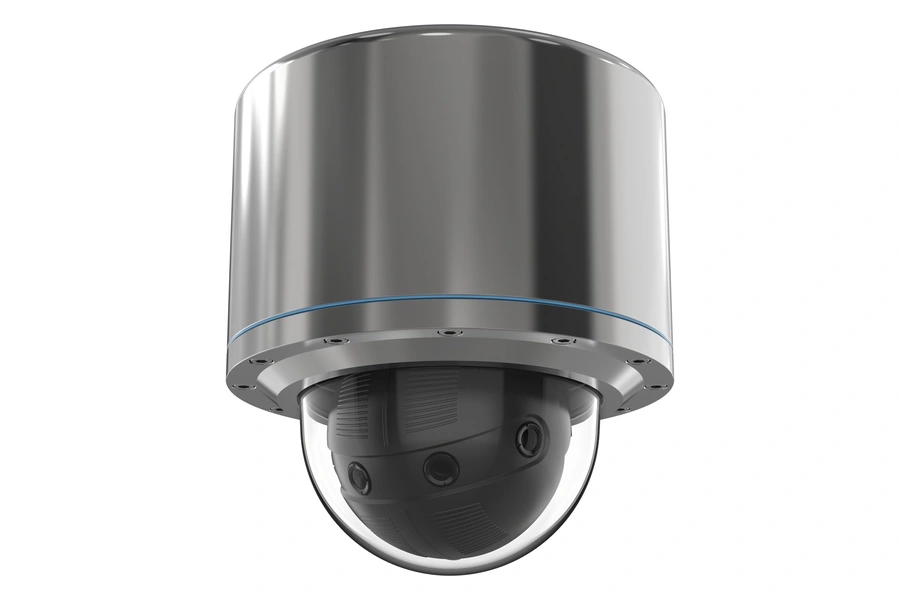

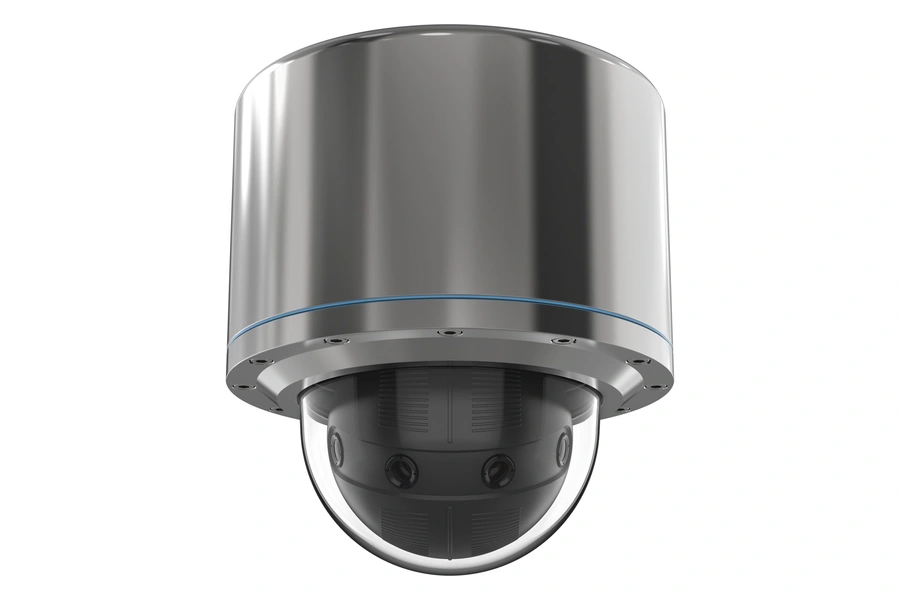

The ExCam XF P3807 is a zone-certified explosion-protected panoramic camera built to give operators a complete view of hazardous areas from a single device, using four 1/2.9-inch sensors to create a seamless 180° horizontal and 90° vertical image at up to 4320 x 1920 resolution and 30 fps. It is certified for ATEX, IECEx, INMETRO, EAC Ex and PESO Zone 1/21 applications, and its SS 316L stainless-steel housing with IP66, IP67 and IP68 ratings makes it well suited to harsh industrial environments. For image quality, it combines Forensic WDR and Lightfinder to maintain clearer detail in both high-contrast and low-light scenes, while PoE over a single Ethernet cable, single-camera operation in the VMS, one-license deployment, Zipstream compression, built-in edge storage support and included analytics such as Motion Guard, Loitering Guard and Fence Guard help simplify installation, reduce bandwidth and storage demands, and strengthen day-to-day monitoring efficiency.
