HID Aero Controllers
Aero X1100
2 Door/64 Reader Intelligent Controller
The HID Aero Controller product line provides a complete and fully functional hardware, firmware, software library and tool infrastructure for access control software providers. This product line is ideal for access control providers who do not want to incur the ongoing costs of designing, manufacturing and maintaining panel hardware along with the critical access control logic that commonly resides locally in access control panels.
The HID Aero X1100 provides onboard IO support for up to two access points and two (Wiegand) or four (OSDP) readers. Four robust relays provide door lock and auxiliary output control while seven supervised inputs are used to monitor door status, REX, power supply, battery, tamper and general purpose inputs status, all supporting analog-to-digital conversion.
Attach expansion IO modules (X100, X200 and X300) to expand the number of access points controlled. At maximum capacity, the X1100 can control up to 64 readers, 64 access points, 615 inputs or 388 outputs.
Key Features
- OSDP Reader Support
- Robust Network Security
- IO modules with AES encryption
- Crypto Chips
- 7 threat Levels
- High Amp Relays
HID Aero Expansion Modules

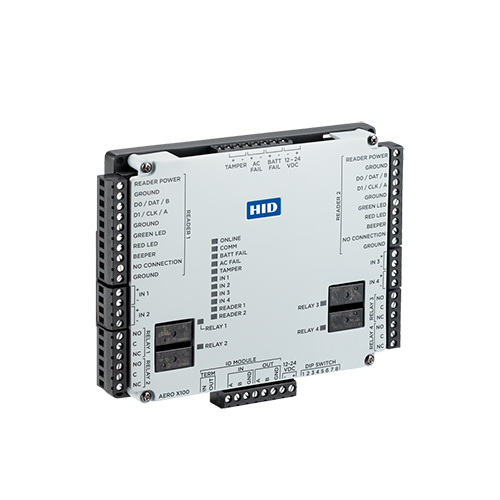

4 Reader, 7 Input, 4 Output Interface Module
HID Aero Controllers provide a complete and fully functional hardware, firmware, software library and tool infrastructure for access control software providers. This product line is ideal for access control providers who do not want to incur the ongoing costs of designing, manufacturing and maintaining panel hardware along with the critical access control logic that commonly resides locally in access control panels
The HID Aero X100 provides onboard IO support for up to two access points and two (Wiegand) or four (OSDP) readers. Four robust relays provide door lock and auxiliary output control while seven supervised inputs are used to monitor door status, REX, power supply, battery, tamper and general purpose inputs status, all supporting analog-to-digital conversion.
Key Features
- OSDP Reader Support
- IO modules with AES encryption
- Crypto Chips
- 7 threat Levels
- High Amp Relays
4 Reader, 7 Input, 4 Output Interface Module
HID Aero Controllers provide a complete and fully functional hardware, firmware, software library and tool infrastructure for access control software providers. This product line is ideal for access control providers who do not want to incur the ongoing costs of designing, manufacturing and maintaining panel hardware along with the critical access control logic that commonly resides locally in access control panels
The HID Aero X100 provides onboard IO support for up to two access points and two (Wiegand) or four (OSDP) readers. Four robust relays provide door lock and auxiliary output control while seven supervised inputs are used to monitor door status, REX, power supply, battery, tamper and general purpose inputs status, all supporting analog-to-digital conversion.
Key Features
- OSDP Reader Support
- IO modules with AES encryption
- Crypto Chips
- 7 threat Levels
- High Amp Relays
HID Aero Datasheets
