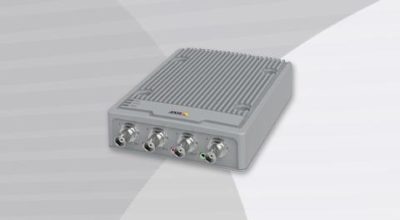

AXIS P7304 is a full-featured, 4-channel video encoder that adds the benefits of IP surveillance to any analogue camera system. It supports standard and HD analogue cameras up to 4K resolution, and analogue PTZ cameras. Enhanced security features such as signed firmware and secure boot ensure the integrity and authenticity of the encoder’s firmware.
Plus, Zipstream with support for H.264/H.265 video compression significantly reduces bandwidth and storage requirements. The encoder features two-way audio, I/O ports, and a memory card slot for edge storage. It also comes with intelligent analytics such as motion detection, audio detection and tampering alarm.
Customers in New Zealand call 0800 345 677 or email [email protected].
wdt_ID
Feature
Description
1
Maximum Frame Rate
25/30 fps in all resolutions up to 1080p Up to 30 fps in quad view in full resolution 1080p One channel 4K up to 15 fps
2
Compression
H.264(MPEG-4Part10/AVC) Baseline, Main and High Profiles H.265(MPEG-HPart2/HEVC) Main Profile Motion JPEG
3
Video Streaming
Multiple, individually configurable streams in H.264, H.265 and Motion JPEG Axis Zipstream technology in H.264 and H.265 Controllable frame rate and bandwidth VBR/MBRH.264/H.265 Quad view
4
Security
Password protection, IP address filtering, HTTPS encryption, IEEE802.1X network access control, digest authentication, user access log, centralized certificate management, signed firmware, secure boot
5
Analytics
Included AXIS Motion Guard, AXIS Fence Guard, AXIS Loitering Guard, AXIS Video Motion Detection Support for AXIS Camera Application Platform enabling installation of third-party applications, seeaxis.com/acap
6
PTZ
Wide range of analog PTZ cameras supported, drivers available for download at www.axis.com PTZ presets,
