Superior Thermal Camera for Precision Temperature Monitoring and Advanced Fire Detection

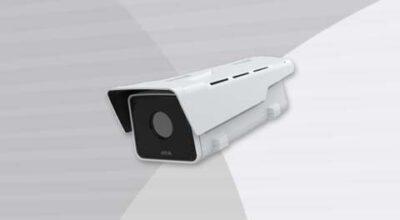

The AXIS Q2101-TE thermal camera provides remote temperature monitoring for large sites, with precise readings from -40 °C to 350 °C. Its advanced features include early fire detection analytics and thermometric guard tour capabilities. With built-in cybersecurity measures and support for edge-to-edge technology, it seamlessly integrates into your network. The device is IK10- and NEMA 4X-rated, ensuring reliable performance even in challenging environments.
wdt_ID
Feature
Description
1
Resolution
384x288 Image can be scaled up to 768x576 Up to 8.3 fps and 30 fps
2
Object Temperature Range
-40˚C to +350˚C
3
Thermal Sensitivity
NETD < 40 mK
4
Artificial Intelligence
Deep Learning Processing Unit
5
Analytics
Video Motion Detection, Motion Guard, Perimeter Defender, Fence Guard, Loitering Guard, early fire detection
6
Cybersecurity
FIPS 140-2 level 2 (TPM), AXIS Edge Vault, Axis device ID, Signed Firmware, Secure Boot, Signed Video, Secure Keystore
7
Field of View
7mm - Minimum focus distance: 1.3 m Horizontal: 55˚ 13mm - Minimum focus distance: 4 m Horizontal: 28˚ 19mm - Minimum focus distance: 8.5 m Horizontal: 19.4˚
8
PTZ
Optional positioning unit for PTZ
9
Casing
IP66/IP67, NEMA 4X, and IK10 rated casing. Aluminium
