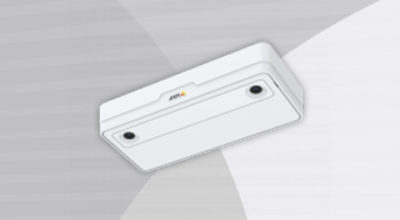

Combining 3D imaging software and hardware in one device, this people counter automatically counts the number of people passing through a pre-defined counting area. The device generates a 3D depth map for reliable counting even in challenging conditions where there’s shadows, strong sunlight, glares, or high volumes of foot traffic.
Data from the counter helps you understand visitor trends, allowing you to make informed decisions about your operations. AXIS P8815-2 also estimates occupancy levels in real-time. It’s easy to connect two counters for wide area coverage. And, with optional accessories, it can be pendant-mounted or recessed in a ceiling.
Customers in New Zealand call 0800 345 677 or email [email protected].
wdt_ID
Feature
Description
1
Maximum Frame Rate
30/25 fps (60/50 Hz) in 1920x1080 HDTV 1080p to 160x90
2
Compression
H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles Motion JPEG
3
Video Streaming
Multiple, individually configurable streams in H.264 and Motion JPEG Axis Zipstream technology in H.264 Controllable frame rate and bandwidth VBR/MBR H.264
4
Minimum Illumination
5 lux
5
Security
Password protection, IP address filtering, HTTPS encryption, IEEE 802.1X network access control, digest authentication, user access log, centralized certificate management, brute force delay protection, signed firmware, secure boot
6
Storage
Recording to network-attached storage (NAS)
7
Counting-area Coverage
Maximum size of counting area when mounted at: 250 cm (98 in): 199 x 46 cm (78 x 18 in) 300 cm (118 in): 306 x 100 cm (120 x 39 in) 400 cm (157 in): 400 x 208 cm (157 x 82 in) 500 cm (197 in): 400 x 225 cm (157 x 89 in) 600 cm (236 in): 400 x 225 cm (157 x 89 in)
8
Functions
Bi-directional counting. Flexible counting area (for example for revolving doors). Supports wide entrances by using multiple counters. Video stream anonymization. Automatic upload to separately sold AXIS Store Data Manager and AXIS Store Reporter. Upload to third-party software through API. Counting data stored up to 90 days.
