AXIS F72 Pinhole

Discreet High-Quality Surveillance for Tight Spaces

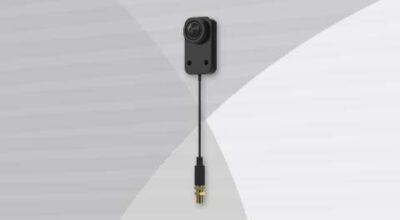

The AXIS F7225-RE 2nd Gen Pinhole Sensor is a discreet surveillance solution ideal for tight spaces. Compatible with 2nd gen main units and cables, it provides high-quality video even in challenging light conditions due to its 97º field of view and Forensic WDR. The F Series divided design enhances discretion, and it’s IP66/IP67-rated for indoor and outdoor use. It easily connects to the main unit using long cables and multiple cameras only require a single VMS license when used with AXIS F91 main units, supporting multiple HDTV streams from separate cameras.

wdt_ID	Feature	Description
1	Resolution	Forensic WDR - 1920x1080 at up to 30 fps 1280x720 at up to 60 fps AXIS F9111 Main Unit - 1920x1080 at up to 60 fps 1280x720 at up to 180 fps
2	Dynamic Range	Forensic Capture WDR
3	Artificial Intelligence	AXIS F9111 Main Unit - Machine Learning Processor for Object Detection including; Humans, Vehicles
4	Analytics	Video Motion Detection AXIS F9111 Main Unit - Object Analytics
5	Cybersecurity	AXIS Edge Vault, Axis device ID, Signed Firmware, Secure Boot, Signed Video, Secure Keystore
6	Lens Options	Horizontal: 97˚ Vertical: 48˚
7	Casing	IP66/IP67, rated casing. Aluminium front casing and plastic rear cover
8	Warranty	5-year warranty

Call us on 1300 556 334 or email [email protected] to learn more.

Customers in New Zealand call 0800 345 677 or email [email protected].

• AXIS F72 Pinhole Brochure
