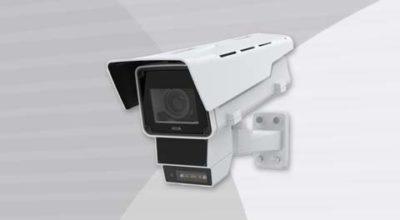

Get the best of both radar and video with the AXIS Q1656-DLE Radar-Video Fusion Camera. This unique device provides next-level detection and visualization with its deep learning-powered object classification, improved scene intelligence, reliable 24/7 detection, and built-in cybersecurity features. You’ll enjoy greater accuracy with AXIS Object Analytics seamlessly blending video analytics and radar analytics that add distance and speed measurement. Plus, you’ll get two premium devices in one – a superior Q-line camera with excellent image usability combined with a fully integrated radar. Get wide-area intrusion protection with this innovative technology.
wdt_ID
Feature
Description
1
Resolution
2688 x 1512 With WDR: 30/25 fps Without WDR: 60/50 fps
2
Detection Range
Person: 5m to 60m Vehicle: 5m to 90m
3
Vehicle Speed
Up to 55 km/h
4
IR Illumination
OptimizedIR with power-efficient, long-life LEDs Range up to 38m
5
LED Illumination
Power-efficient, long-life white LED Range up to 18m
6
Dynamic Range
Forensic WDR Up to 120 dB
7
Artificial Intelligence
Deep Learning Processor for Object Detection including; Radar-Video fusion - Humans, Vehicles Video only - Humans, Vehicles (Cars, Buses, Trucks, Bikes)
8
Analytics
Video Motion Detection, Speed Monitor, License Plate Verifier
9
Cybersecurity
AXIS Edge Vault, Axis device ID, Signed Firmware, Secure Boot, Signed Video, Secure Keystore, TPM
10
Field of View
Minimum focus distance: 0.5 m Horizontal: 96˚ to 44˚ Vertical: 63˚ to 26˚
11
Zoom
2.5x Remote Optical Zoom
12
Casing
IP66-, and NEMA 4X-rated, IK08 impact-resistant aluminum enclosure with integrated dehumidifying membrane weathershield with black anti-glare coating
